Brakes - ABS And TRAC Actuator Resistance Values Updated
BRAKESBR001-98
January 2, 1998
Title:
ABS & TRAC ACTUATOR RESISTANCE VALUE CORRECTIONS
Models:
'97 - '98 Camry & '97 Avalon
Introduction
Corrections have been made to the resistance value inside of the ABS & TRAC actuator on the pages of the following Repair Manuals
PUBLICATION NUMBER PUBLICATION NAME AFFECTED PAGES
RM503U1 '97 Camry Repair Manual DI-469, DI-472
RM589U1 '98 Camry Repair Manual DI-561, DI-564
RM504U '97 Avalon Repair Manual BR-93, BR-96
Affected Vehicles
^ 1997 & l998 Camrys and 1997 Avalons.

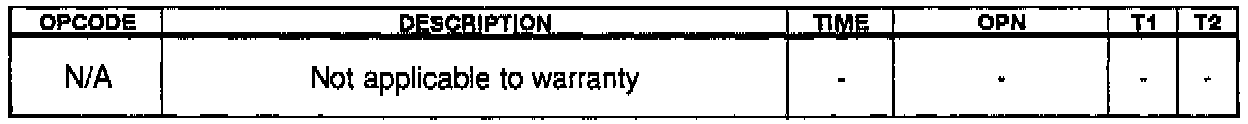

Warranty Information
Correction Information

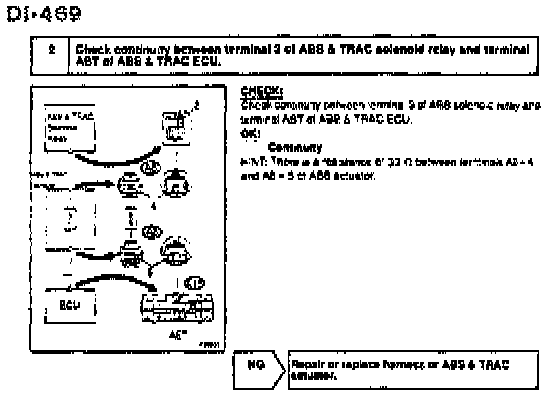

'97 Camry Repair Manual RM503U1, Page DI-469
Under INSPECTION PROCEDURE, Item # 2 (Diagnostics - ABS & Traction Control System) the resistance value has been corrected to 33 Ohms when measuring between terminals A8-4 and A8-5 of the ABS and TRAC Actuator.
The previous resistance value was 4 - 6 Ohms.

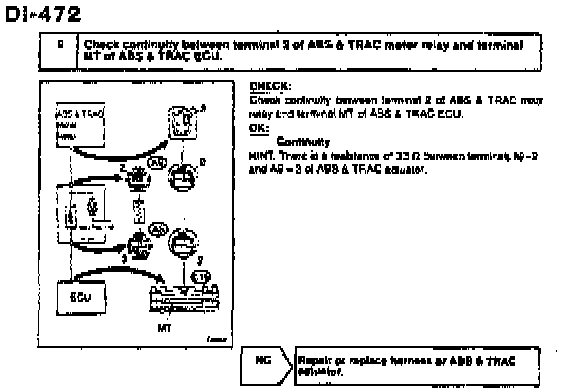

'97 Camry Repair Manual RM503U1, Page DI-472
Under INSPECTION PROCEDURE, Item # 2 (Diagnostics - ABS & Traction Control System) the resistance value has been corrected to 33 Ohms when measuring between terminals A8-2 and A8-3 of the ABS and TRAC Actuator.
The previous resistance value was 4 - 6 Ohms.

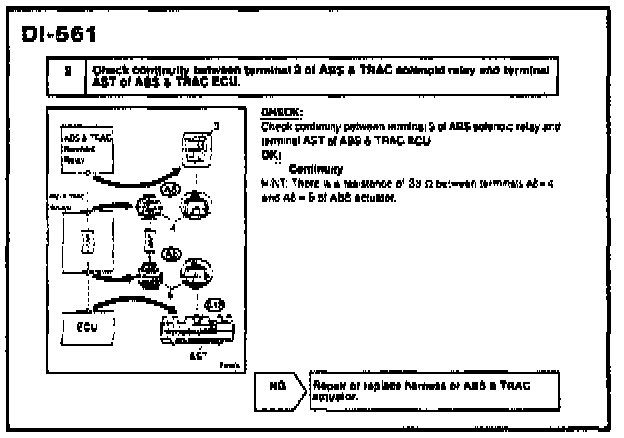

'98 Camry Repair Manual RM589U1, Page DI-561
Under INSPECTION PROCEDURE, Item # 2 (Diagnostics - ABS & Traction Control System) the resistance value has been corrected to 33 Ohms when measuring between terminals A8-4 and A8-5 of the ABS and TRAC Actuator.
The previous resistance value was 4 - 6 Ohms.

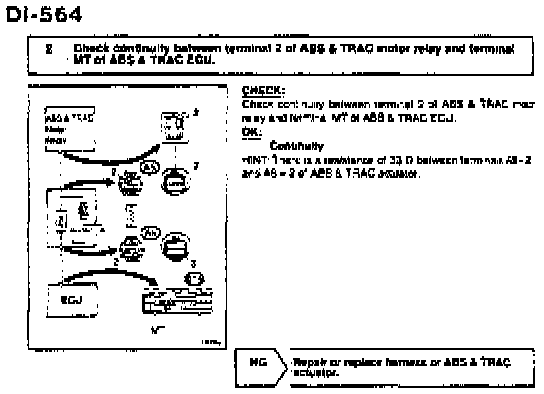

'98 Camry Repair Manual RM589U1, Page DI-564
Under INSPECTION PROCEDURE, Item # 2 (Diagnostics - ABS & Traction Control System) the resistance value has been corrected to 33 Ohms when measuring between terminals A8-2 and A8-3 of the ABS and TRAC Actuator.
The previous resistance value was 4 - 6 Ohms.

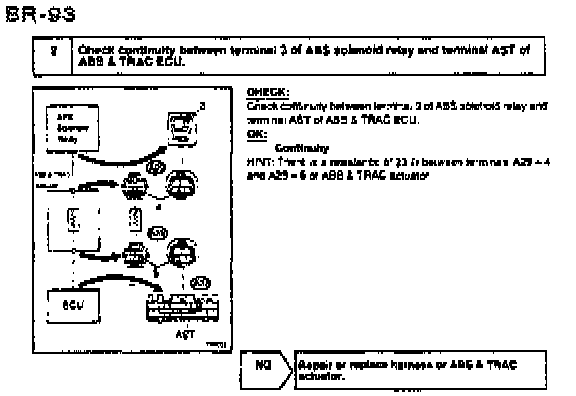

'97 Avalon Repair Manual RM504U, Page BR-93
Under INSPECTION PROCEDURE, Item # 2 (Brake - Anti-Lock Brake System, ABS & TRAC) the resistance value has been corrected to 33 Ohms when measuring between terminals A29-4 and A29-5 of the ABS and TRAC Actuator.
The previous resistance value was 4 - 6 Ohms.
'97 Avalon Repair Manual RM504U, Page BR-96

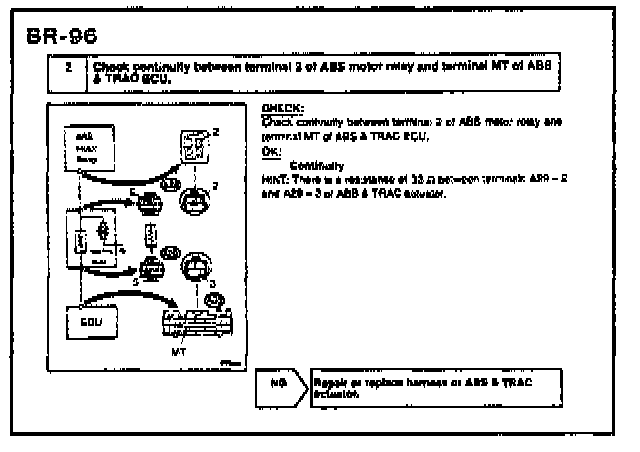

Under INSPECTION PROCEDURE, item # 2 (Brake - Anti-Look Brake System, ABS & TRAC) the resistance value has been corrected to 33 Ohms when measuring between terminals A29-2 and A29-3 of the ABS and TRAC Actuator.
The previous resistance value was 4 - 6 Ohms.
