Recall - Brake Booster Vacuum Hose Replacement
>>
Technical Instructions
Technical Instructions

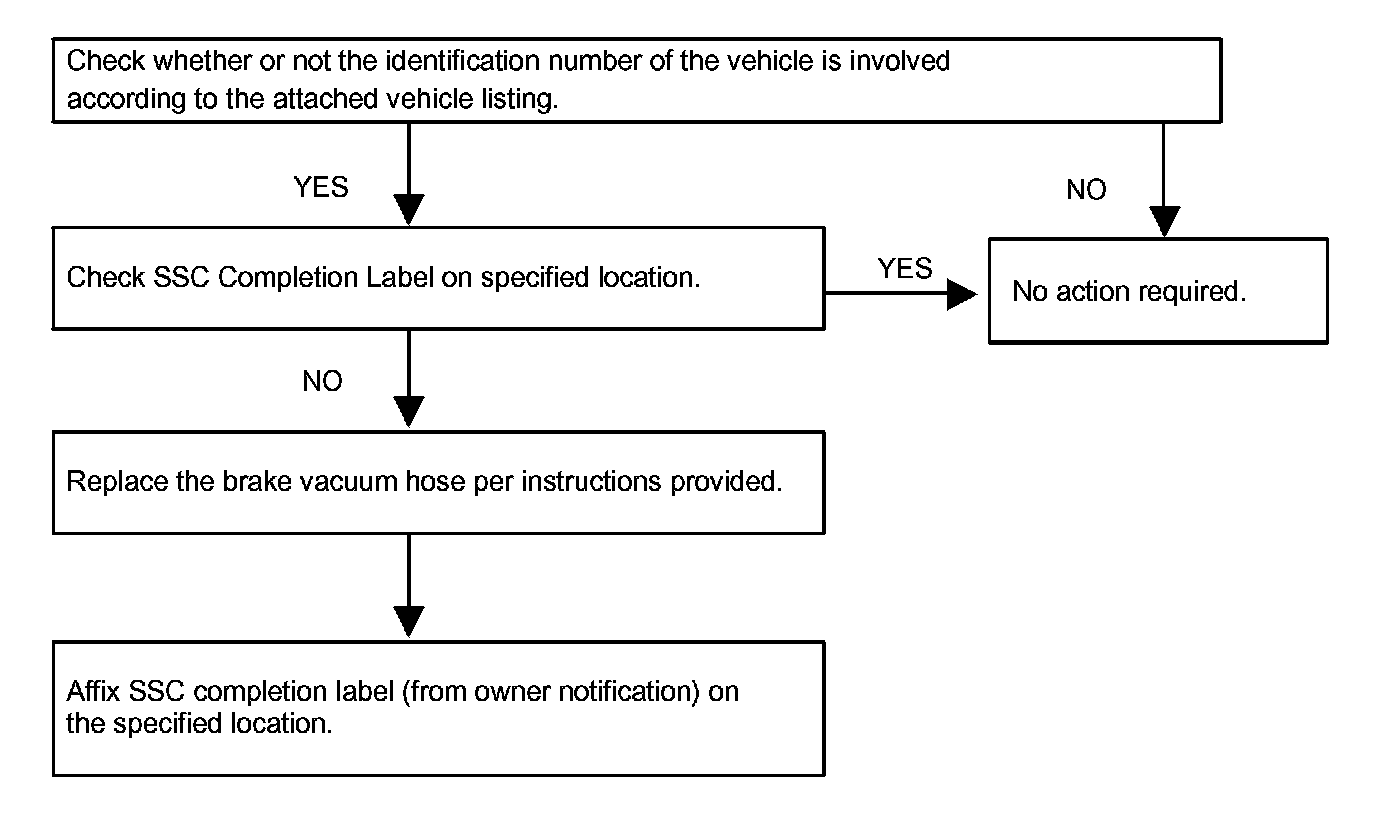

I. Operation Flow Chart

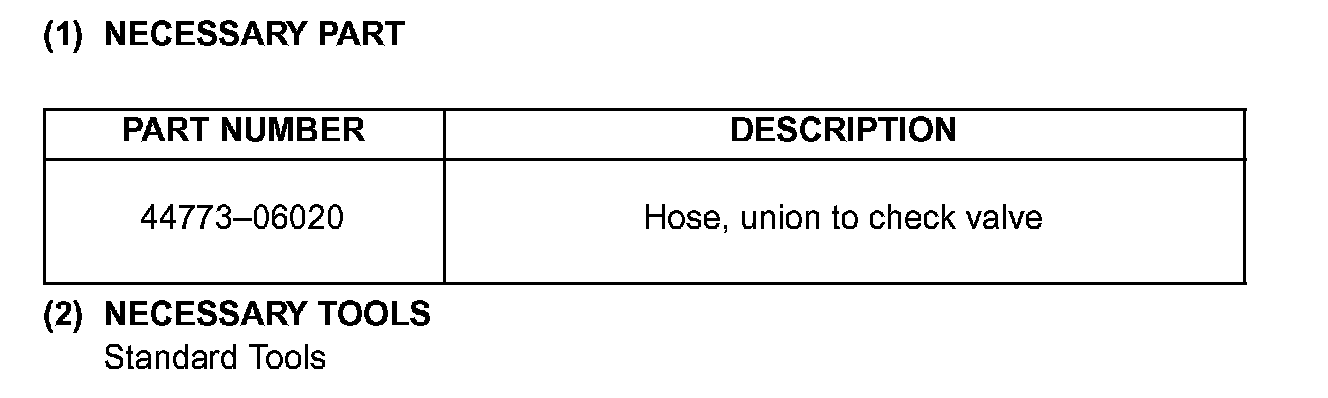

II. Part and Tools Requirements

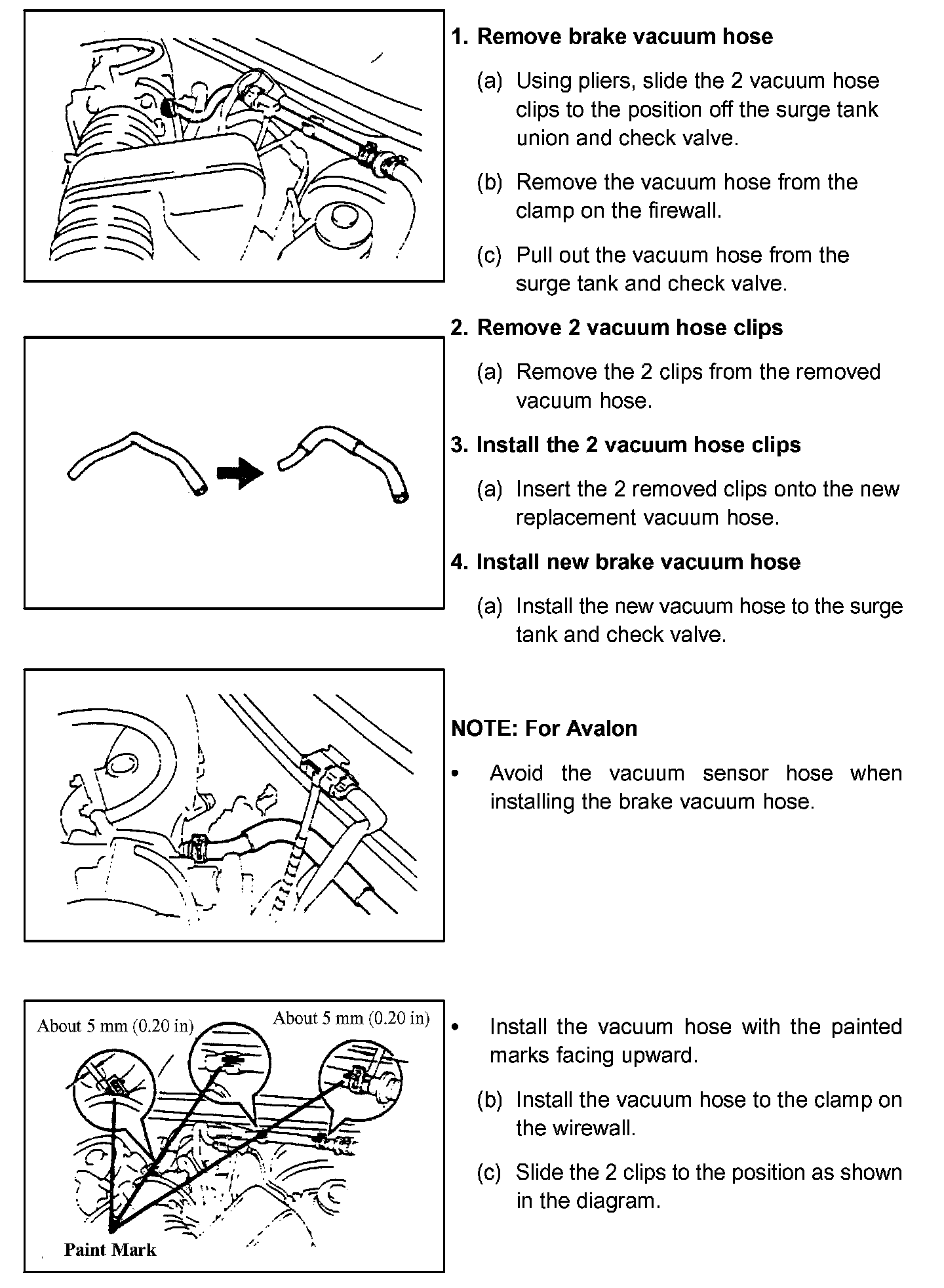

III. Work Procedure
