Windshield Washer Motor: Testing and Inspection

INSPECT WASHER MOTOR OPERATION

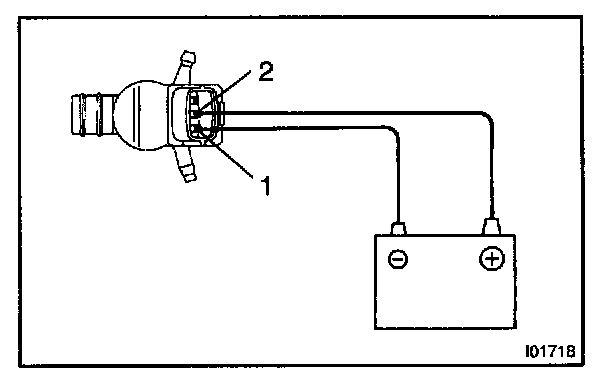

Connect the positive (+) lead from the battery to terminal 2 and the negative (-) lead to terminal 1 a check that the motor operates.

NOTE: These tests must be performed quickly (within 20 seconds) to prevent the coil from burning out. If operation is not as specified, replace the motor.
