With Theft Deterrent System
With Theft Deterrent System

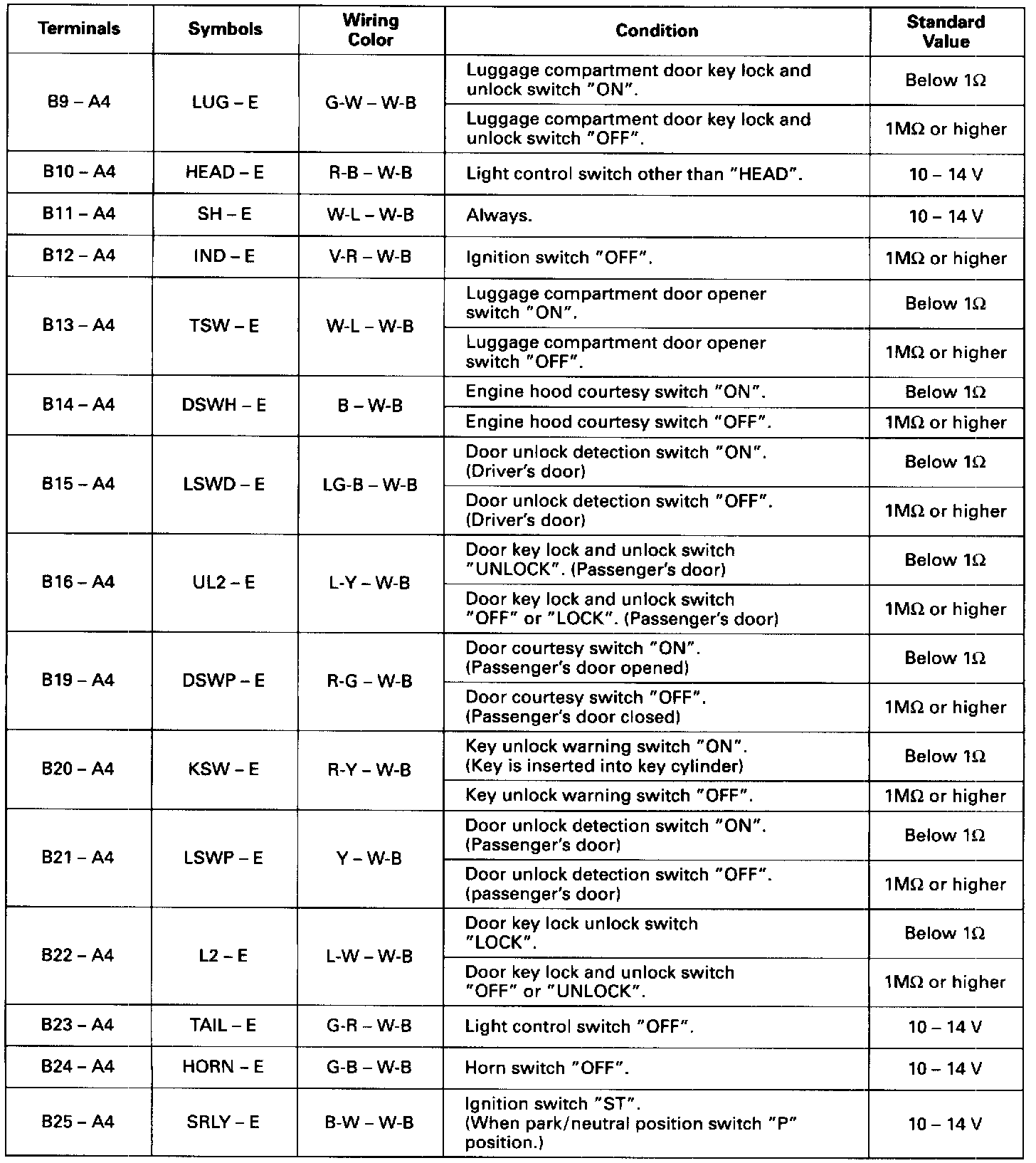

Standard Values of ECU Terminals / With Theft Deterrent System (1 Of 2):
Standard Values of ECU Terminals / With Theft Deterrent System (2 Of 2):
