DTC Check

OUTPUT OF DTC USING DIAGNOSIS CHECK WIRE


1. Turn the ignition switch ON.

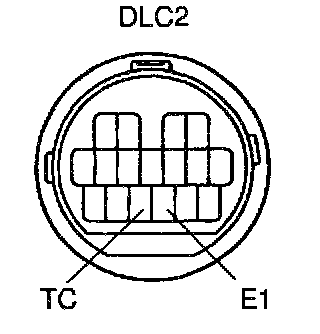

2. Using SST, connect terminal Tc and E1 of DLC2.
SST 09843-18020 (Diagnosis Check Wire)

2. Read the DTC code on the CRUISE MAIN indicator light.







HINT: If the diagnostic code is not output, inspect the diagnosis circuit.







As an example, the blinking patterns for codes, normal, 11 and 21 are shown in the illustration.

DTC Chart:

3. Check for the problem using the DTC table.
4. After completing the check, disconnect terminal Tc and E1, and turn off the display.
