Antilock Brake System (ABS)

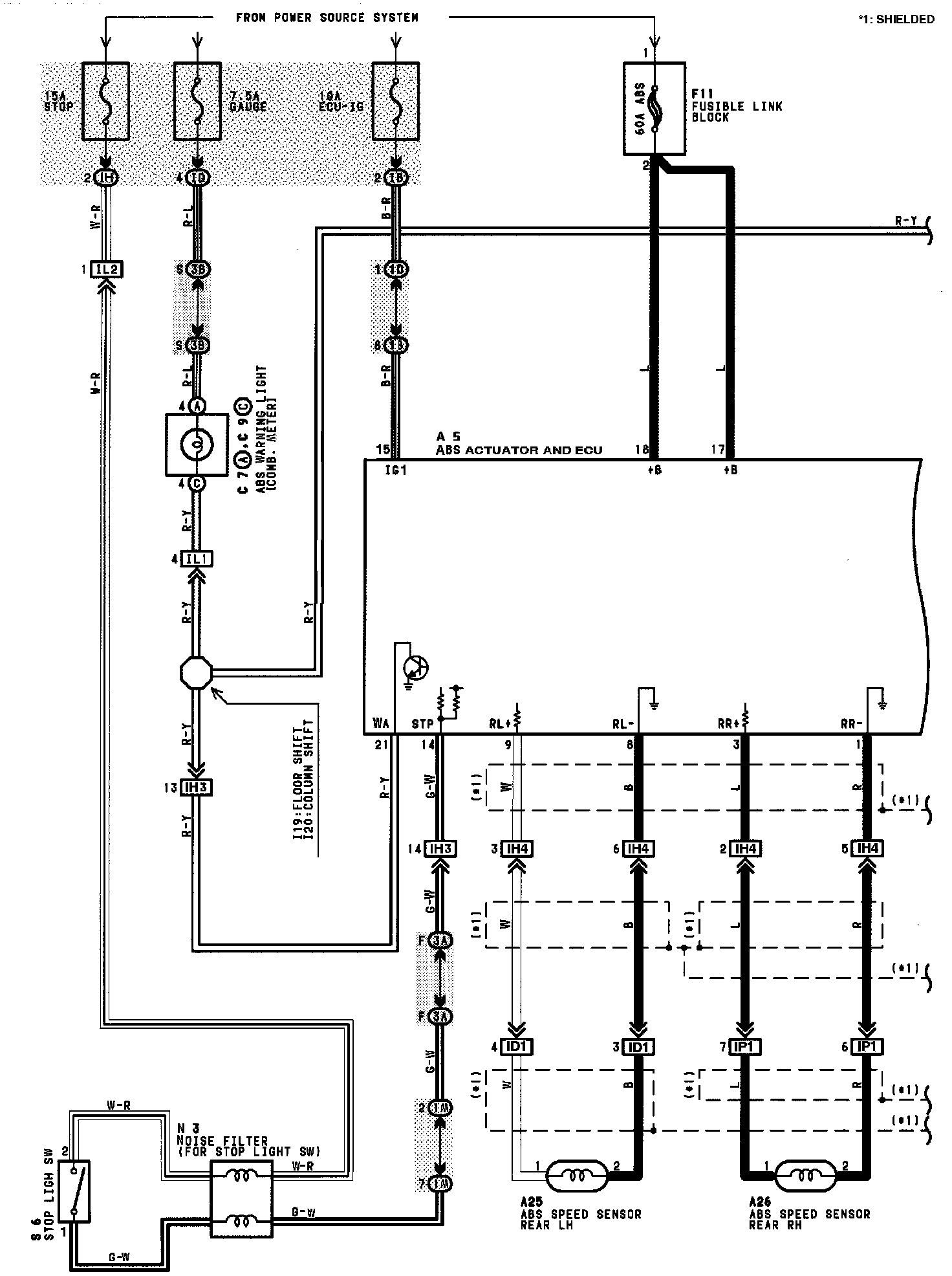

ABS (Anti-Lock Brake System) (Part 1 Of 2):
ABS (Anti-Lock Brake System) (Part 2 Of 2):
