Luggage Compartment Door Key Lock and Unlock Switch Circuit

LUGGAGE COMPARTMENT DOOR KEY LOCK AND UNLOCK SWITCH CIRCUIT


CIRCUIT DESCRIPTION
The luggage compartment door key lock and unlock switch goes ON when the luggage compartment door key cylinder is turned to the unlock side with the key.

Luggage Compartment Door Key Lock and Unlock Switch Circuit:

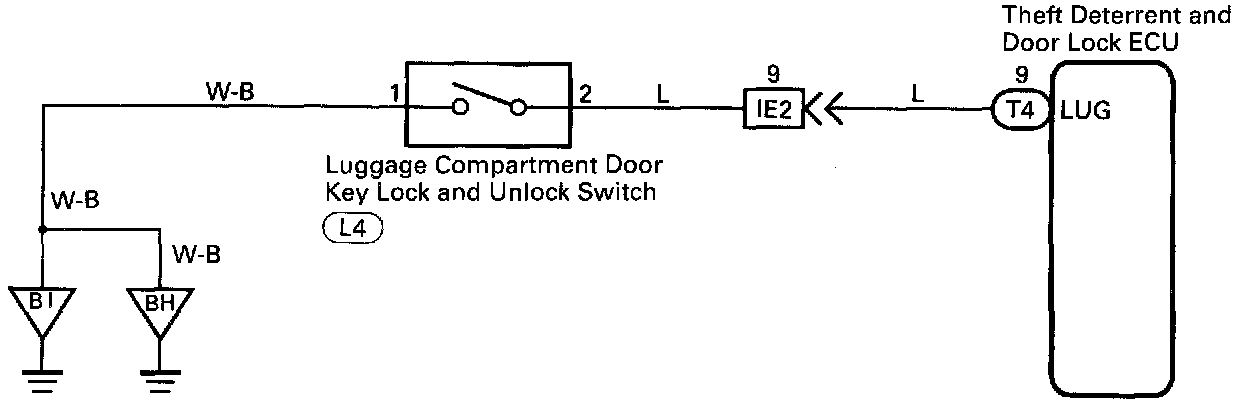

WIRING DIAGRAM

Inspection Procedure / Luggage Compartment Door Key Lock and Unlock Switch Circuit (1 Of 3):

Inspection Procedure / Luggage Compartment Door Key Lock and Unlock Switch Circuit (2 Of 3):

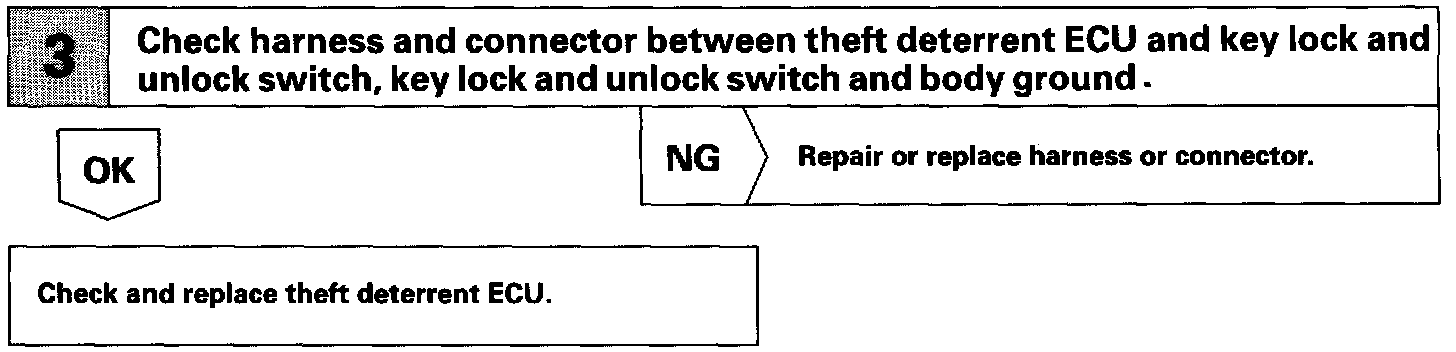

Inspection Procedure / Luggage Compartment Door Key Lock and Unlock Switch Circuit (3 Of 3):

INSPECTION PROCEDURE
