Symptom Related Diagnostic Procedures

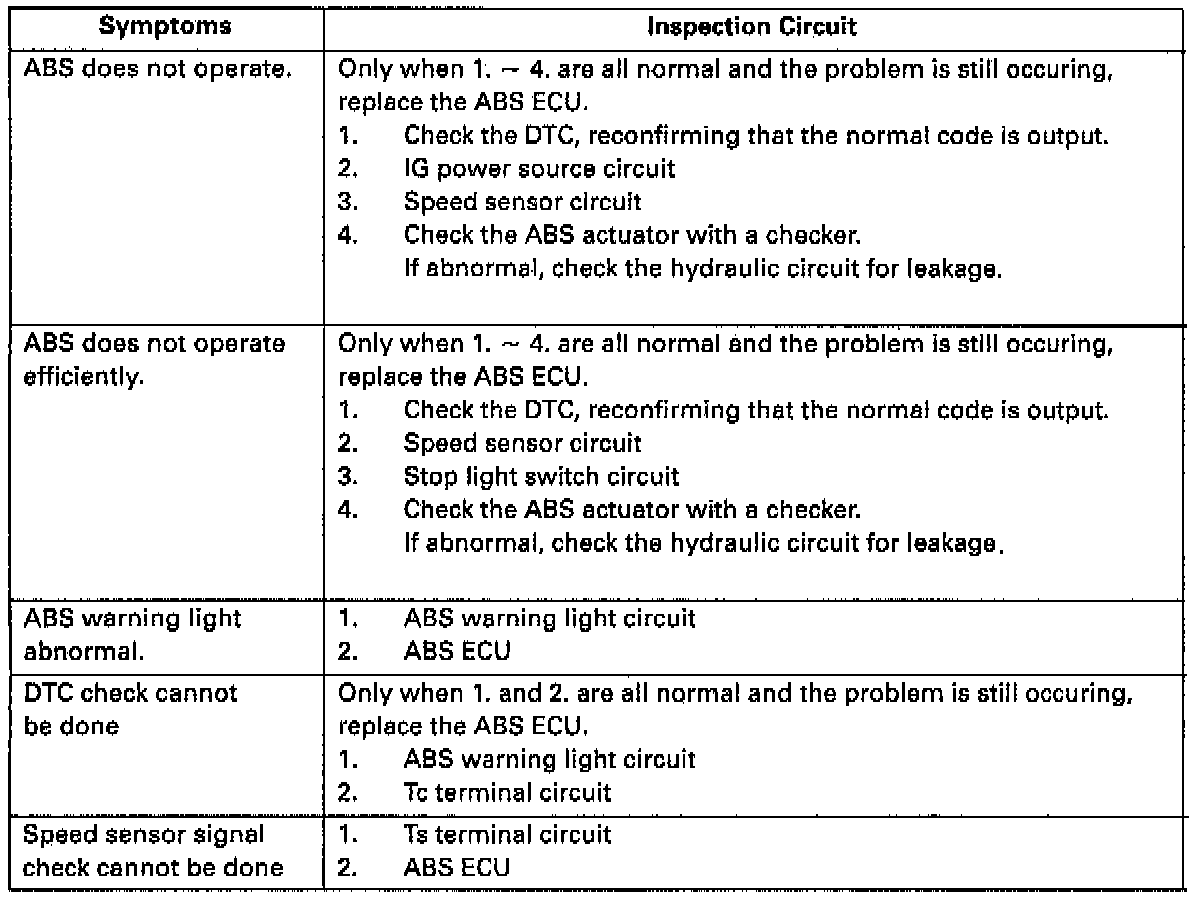

Problem Symptoms Chart:

If a normal code is displayed during the Diagnostic Trouble Code (DTC) check but the problem still occurs, check the circuits for a problem symptom in the order given in the chart and proceed to the relevant troubleshooting procedure.

CAUTION: When removing the Electronic Control Unit (ECU), turn the Ignition Switch OFF.
