Clutch Switch

CLUTCH SWITCH CIRCUIT


CIRCUIT DESCRIPTION
When the clutch pedal is depressed, the clutch switch sends a signal to the cruise control ECU, when this signal is input to the cruise control ECU during cruise control driving, the cruise control ECU cancels cruise control.

Park / Neutral Position Switch Circuit:

WIRING DIAGRAM

Inspection Procedure / Clutch Switch Circuit (1 Of 4):

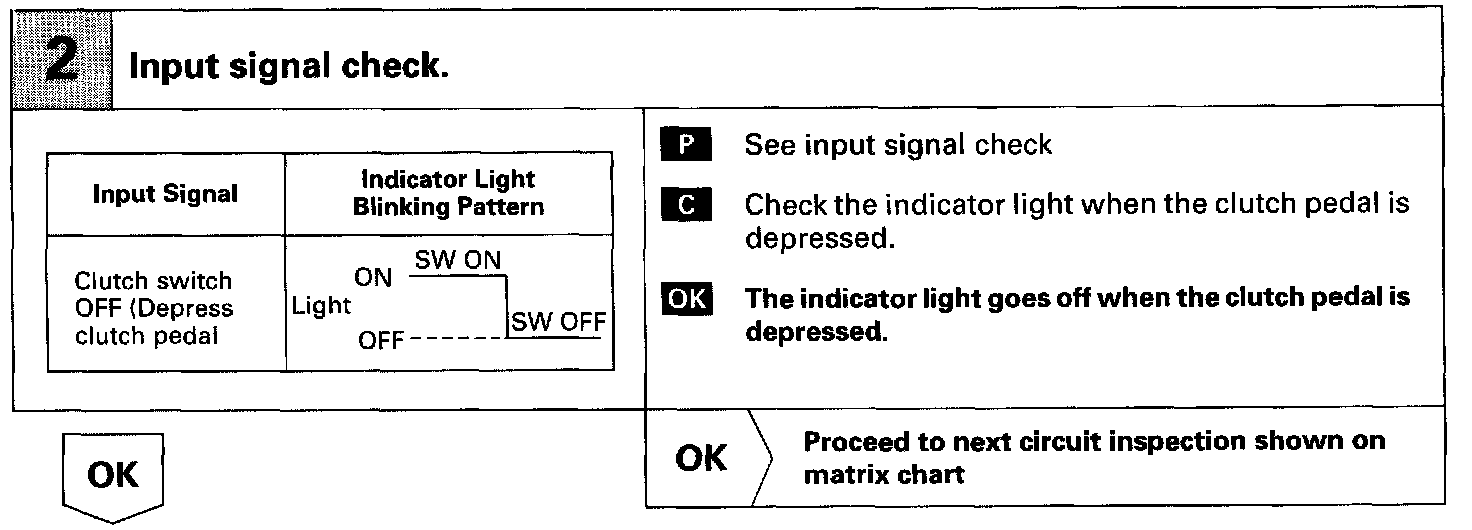

Inspection Procedure / Clutch Switch Circuit (2 Of 4):

Inspection Procedure / Clutch Switch Circuit (3 Of 4):

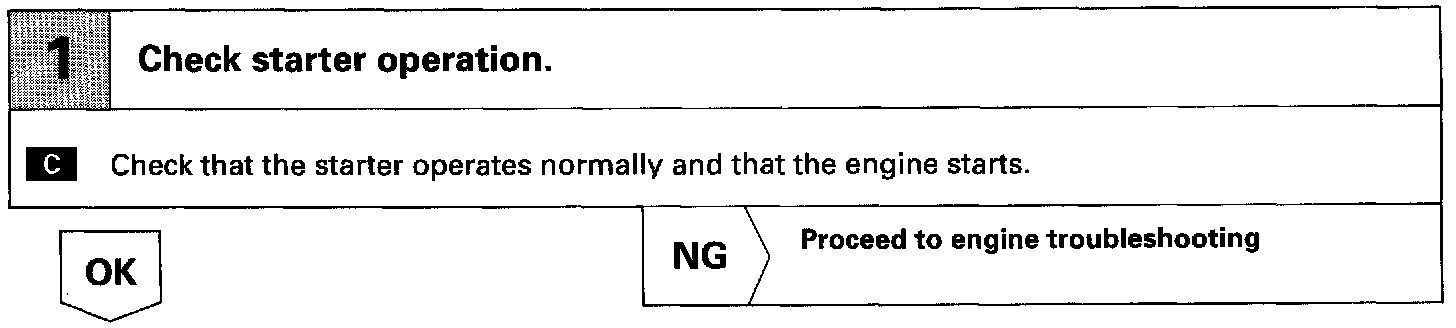

Inspection Procedure / Clutch Switch Circuit (4 Of 4):

INSPECTION PROCEDURE
