ECU Power Source Circuit

ECU POWER SOURCE CIRCUIT


CIRCUIT DESCRIPTION
The cruise control ECU power source supplies power to the actuator. Terminal GND and the cruise control ECU case the grounded.

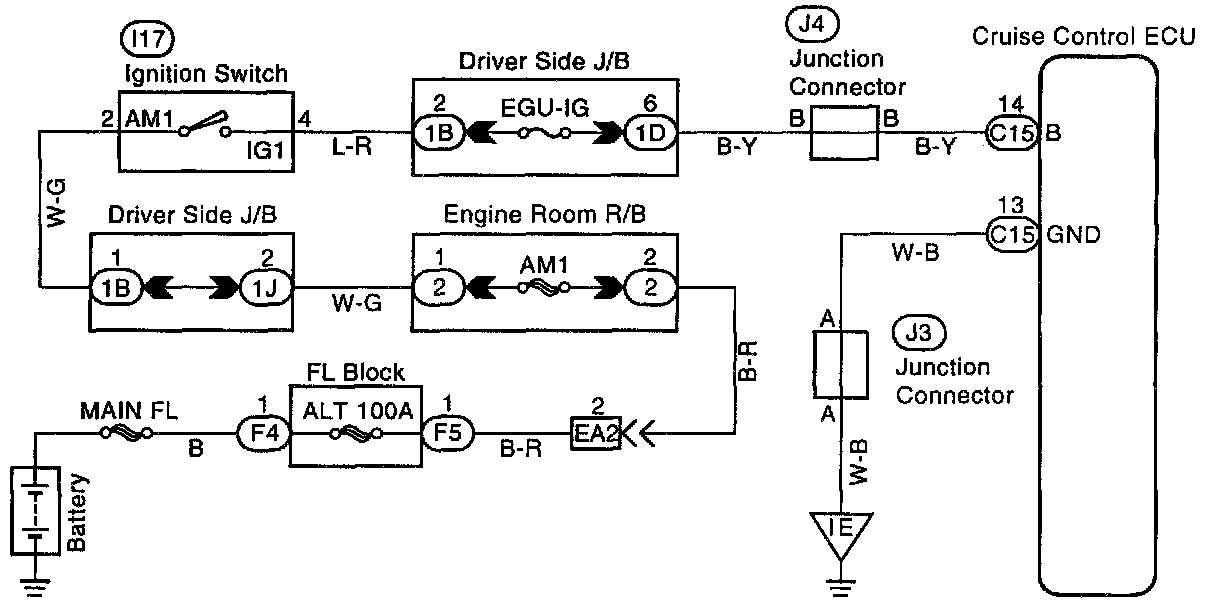

ECU Power Source Circuit:

WIRING DIAGRAM

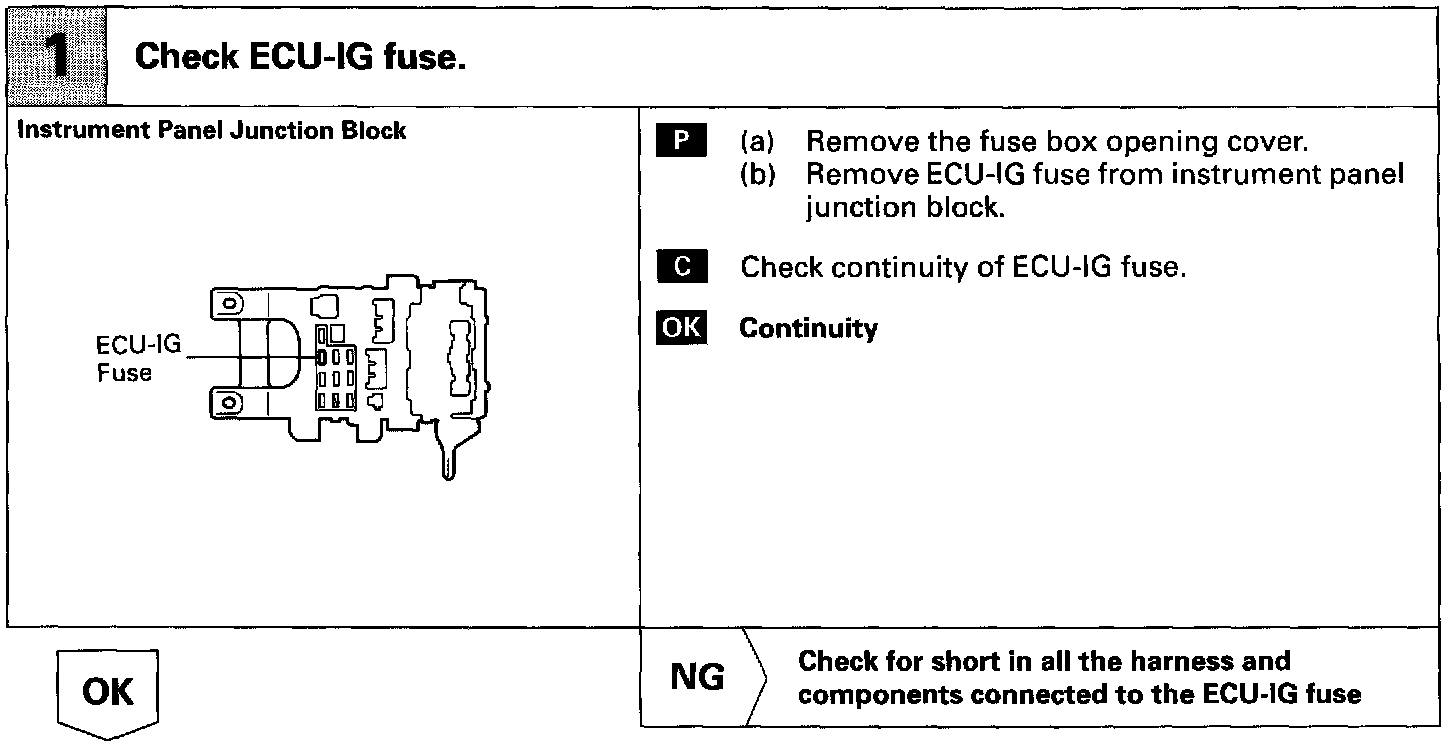

Inspection Procedure / ECU Power Source Circuit (1 Of 3):

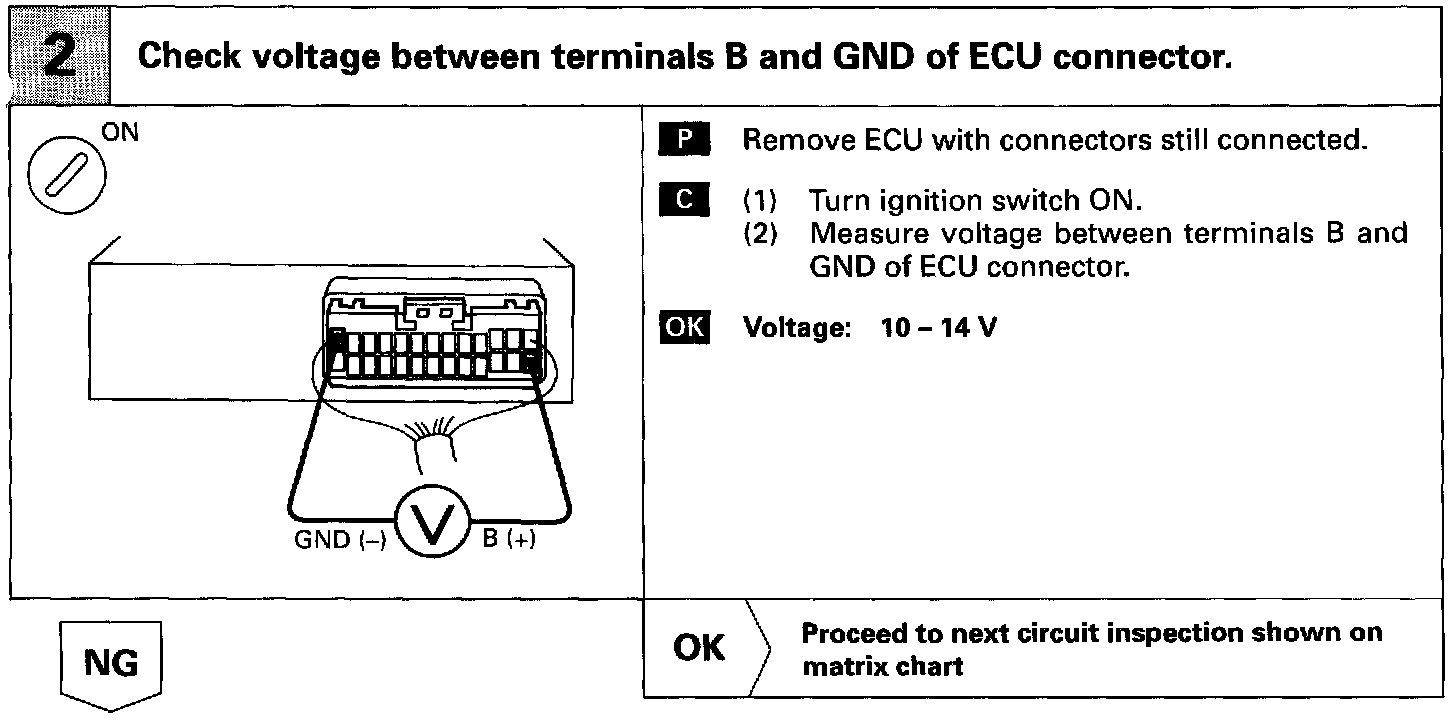

Inspection Procedure / ECU Power Source Circuit (2 Of 3):

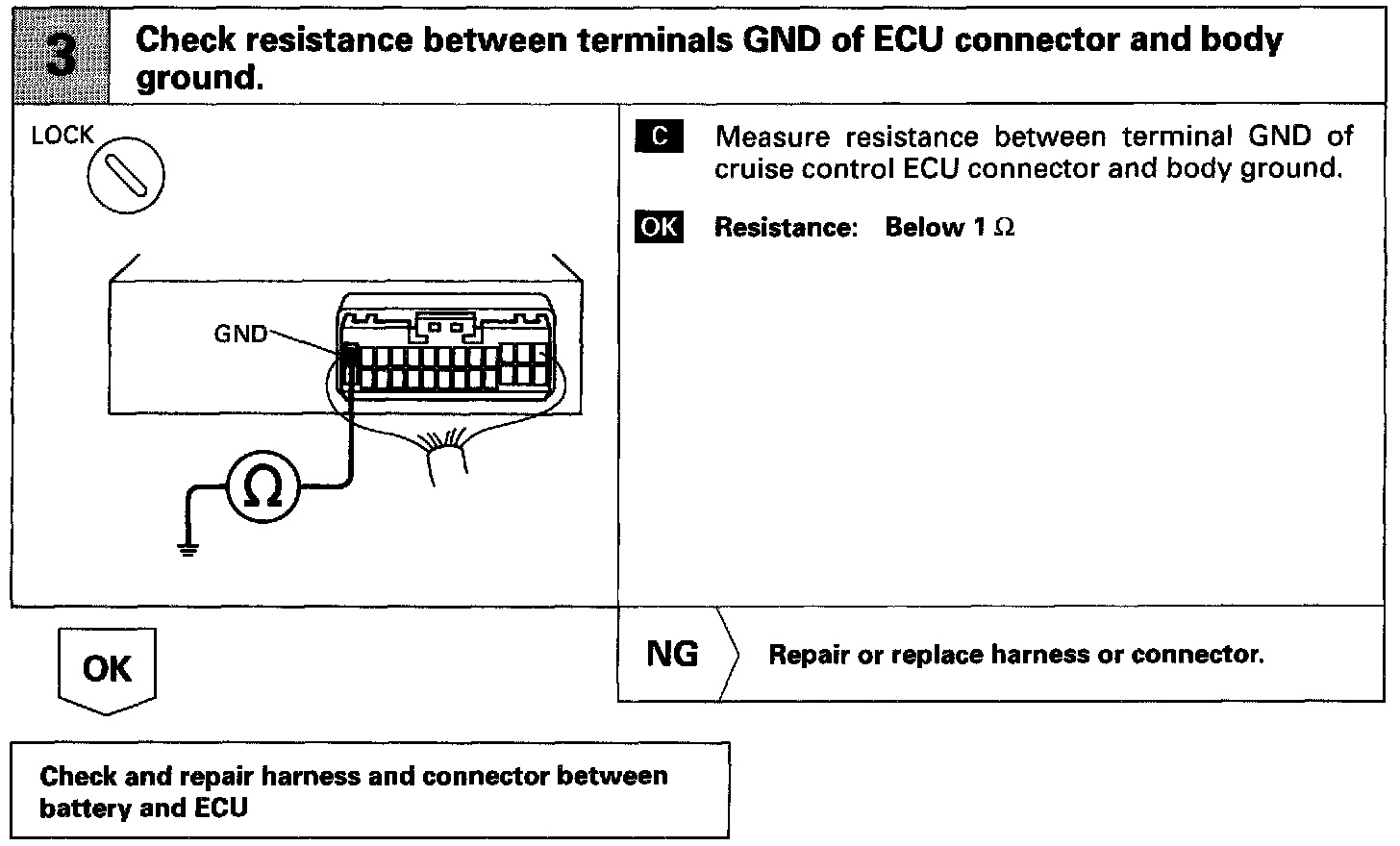

Inspection Procedure / ECU Power Source Circuit (3 Of 3):

INSPECTION PROCEDURE
