Park/Neutral Position Switch Circuit

PARK / NEUTRAL POSITION SWITCH


CIRCUIT DESCRIPTION
When the parking brake is operating, the parking brake switch sends a signal to the cruise control ECU. When this signal is input to the cruise control ECU during cruise control driving, the cruise control ECU cancels cruise control.

Park / Neutral Position Switch Circuit:

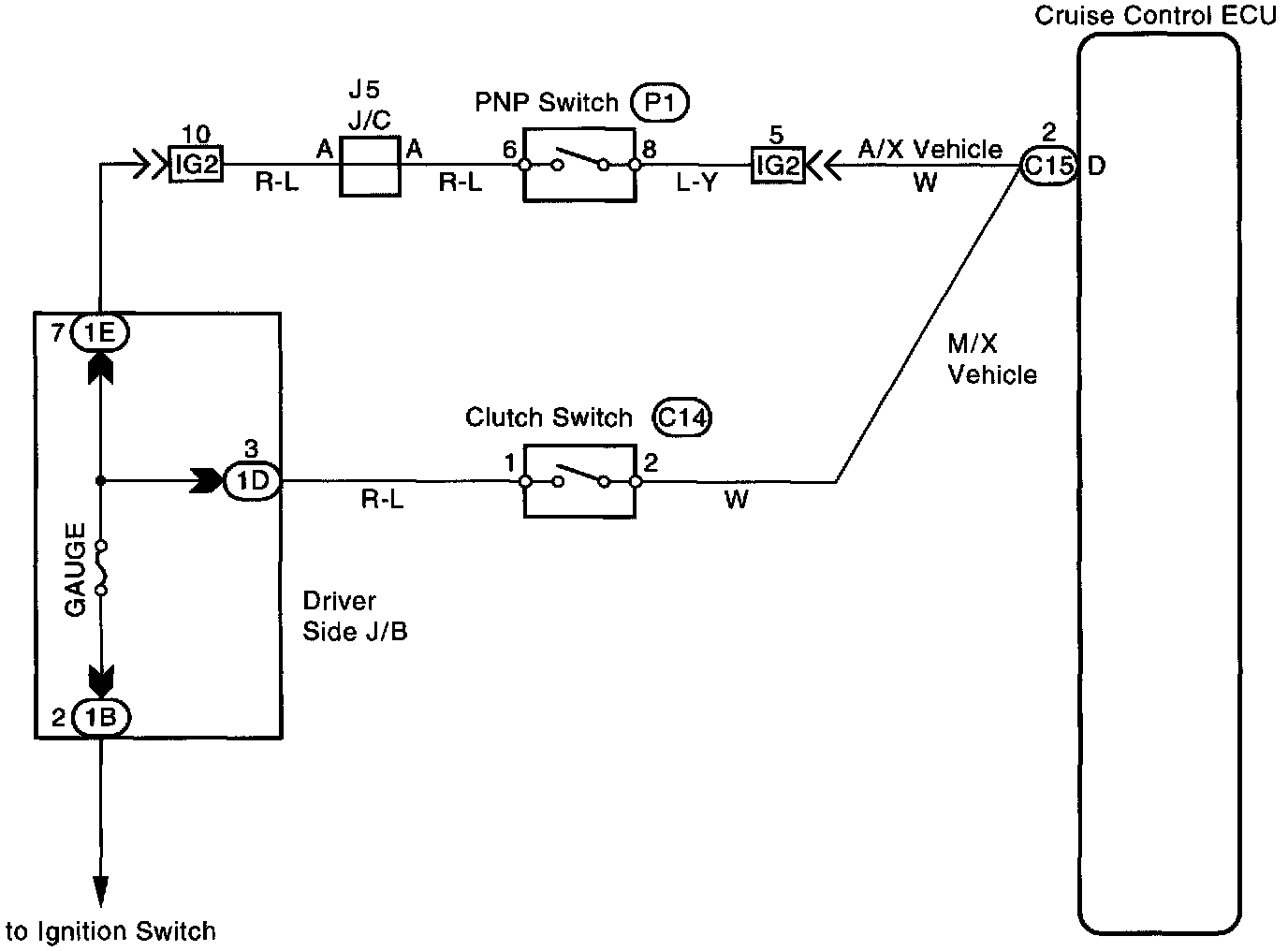

WIRING DIAGRAM

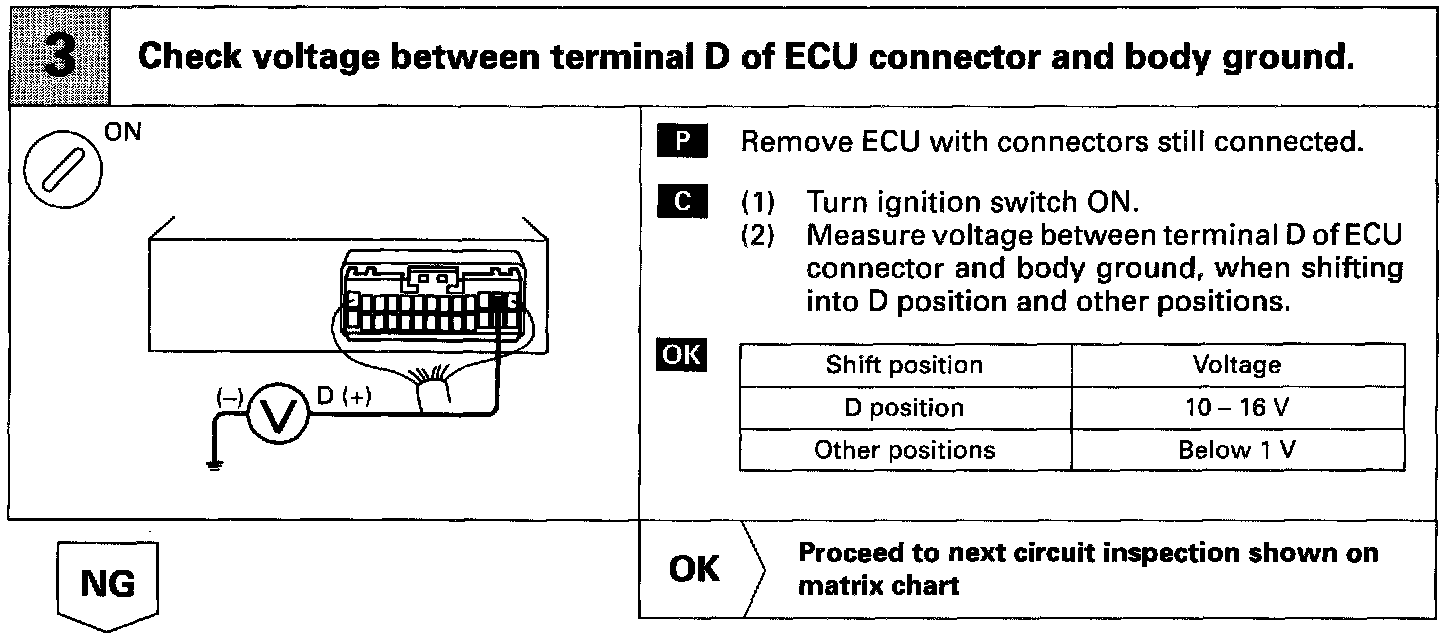

Inspection Procedure / Park / Neutral Position Switch Circuit (1 Of 4):

Inspection Procedure / Park / Neutral Position Switch Circuit (2 Of 4):

Inspection Procedure / Park / Neutral Position Switch Circuit (3 Of 4):

Inspection Procedure / Park / Neutral Position Switch Circuit (4 Of 4):

INSPECTION PROCEDURE
