Body

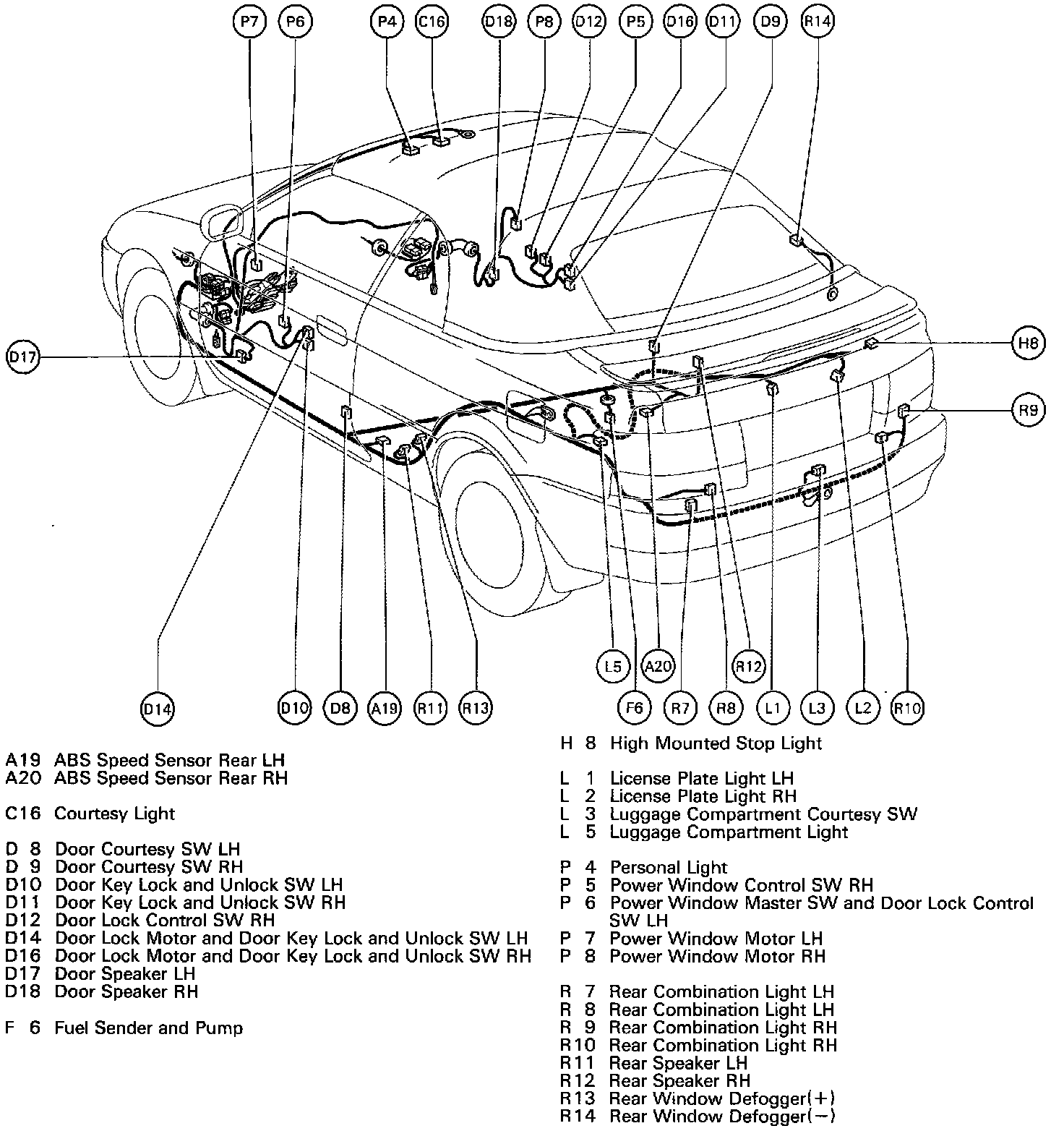

Position Of Parts In Body (Fig 29):

A19 ABS Speed Sensor Rear LH
A20 ABS Speed Sensor Rear RH

C16 Courtesy Light

D 8 Door Courtesy SW LH
D 9 Door Courtesy SW RH
D10 Door Key Lock and Unlock SW LH
D11 Door Key Lock and Unlock SW RH
D12 Door Lock Control SW RH
D14 Door Lock Motor and Door Key Lock and Unlock SW LH
D16 Door Lock Motor and Door Key Lock and Unlock SW LH
D17 Door Speaker LH
D18 Door Speaker RH

F 6 Fuel Sender and Pump

H 8 High Mounted Stop Light

L 1 Licence Plate Light LH
L 2 Licence Plate Light RH
L 3 Luggage Compartment Courtesy SW
L 5 Luggage Compartment Light
P 4 Personal Light
P 5 Power Window Control SW RH
P 6 Power Window Master SW and Door Lock Control SW LH
P 7 Power Window Motor LH
P 8 Power Window Motor RH

R 7 Rear Combination Light LH
R 8 Rear Combination Light LH
R 9 Rear Combination Light RH
R10 Rear Combination Light RH
R11 Rear Speaker LH
R12 Rear Speaker RH
R13 Rear Window Defogger (+)
R14 Rear Window Defogger (-)
