Engine Compartment

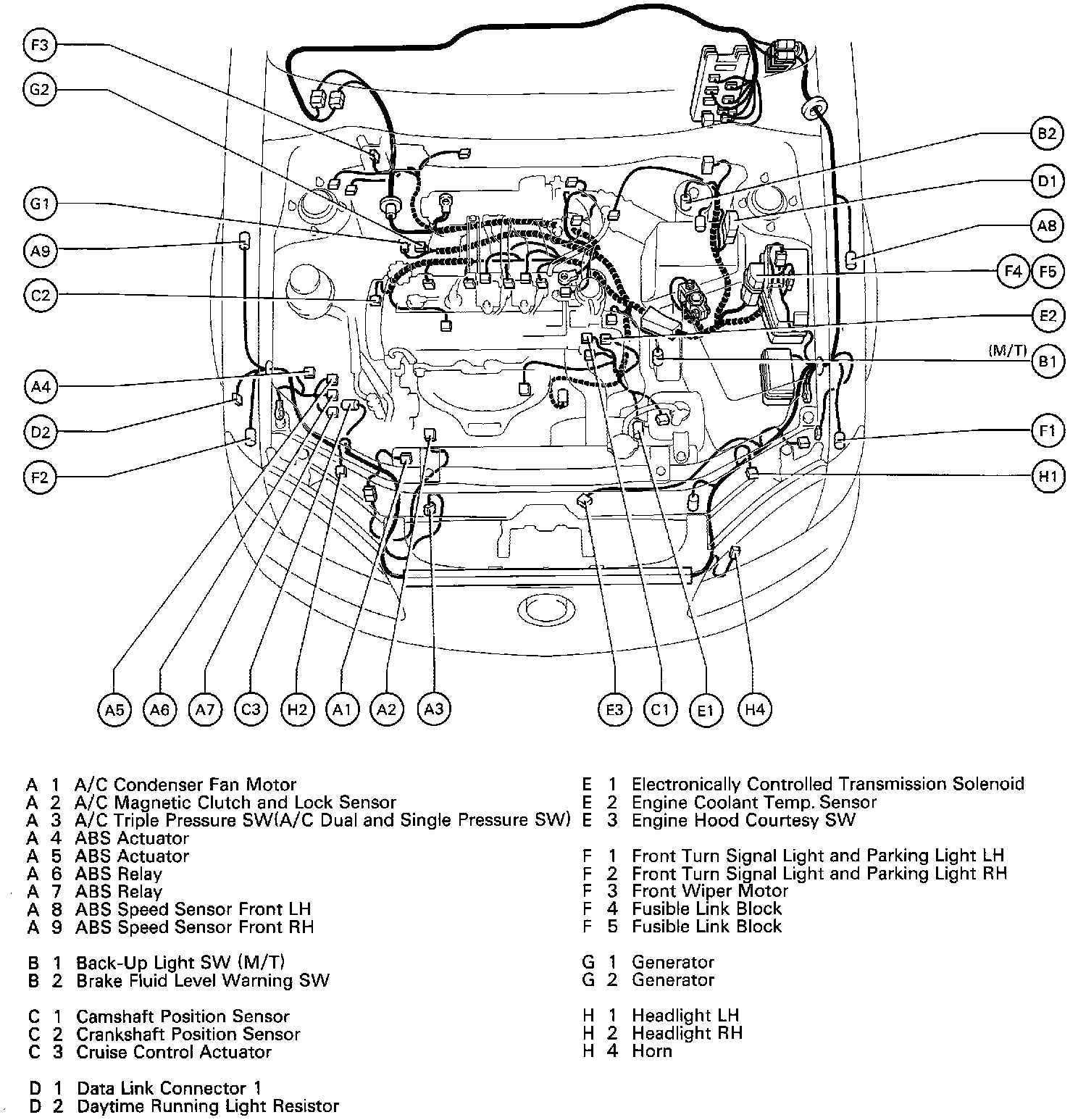

Position Of Parts In Engine Compartment (Part 1 Of 2) (Fig 24):

Position Of Parts In Engine Compartment (Part 2 Of 2) (Fig 25):

A 1 A/C Condenser Fan Motor
A 2 A/C Magnetic Clutch and Lock Sensor
A 3 A/C Triple Pressure SW (A/C Dual and Single Pressure SW)
A 4 ABS Actuator
A 5 ABS Actuator
A 6 ABS Relay
A 7 ABS Relay
A 8 ABS Speed Sensor Front LH
A 9 ABS Speed Sensor Front RH

B 1 Back-Up Light SW (M/T)
B 2 Brake Fluid Level Warning SW

C 1 Camshaft Position Sensor
C 2 Crankshaft Position Sensor
C 3 Cruise Control Actuator

D 1 Date Link Connector 1
D 2 Daytime Running Light Resistor

E 1 Electronically Controlled Transmission Solenoid
E 2 Engine Coolant Temp. Sensor
E 3 Engine Hood Courtesy SW

F 1 Front Turn Signal Light and Parking Light LH
F 2 Front Turn Signal Light and Parking Light RH
F 3 Front Wiper Motor
F 4 Fusible Link Block
F 5 Fusible Link Block

G 1 Generator
G 2 Generator

H 1 Headlight LH
H 2 Headlight RH
H 4 Horn

I 1 Idle Air Control Valve
I 2 Igniter
I 3 Ignition Coil No.1
I 4 Ignition Coil No.2
I 5 Injector No. 1
I 6 Injector No. 2
I 7 Injector No. 3
I 8 Injector No. 4
I 9 Intake Air Temp. Sensor

K 1 Knock Sensor

M 1 Manifold Absolute Pressure Sensor

O 1 Oil Pressure SW
O 3 Oxygen Sensor (Bank 1 Sensor 1)

P 1 Park/Neutral Position SW, A/T Position SW and Back-Up Light SW (A/T)

R 1 Radiator Fan Motor

S 1 Starter
S 2 Starter

T 1 Theft Deterrent Horn
T 2 Throttle Position Sensor

V 1 Vehicle Speed Sensor (Electronically Controlled Transmission)
V 3 Vapor Pressure Sensor
V 4 VSV (EVAP)
V 5 VSV (Vapor Pressure Sensor)

W 1 Washer Motor
W 2 Water Temp. Sender
W 3 Water Temp. SW (Radiator Fan)
