Instrument Panel and Center Console

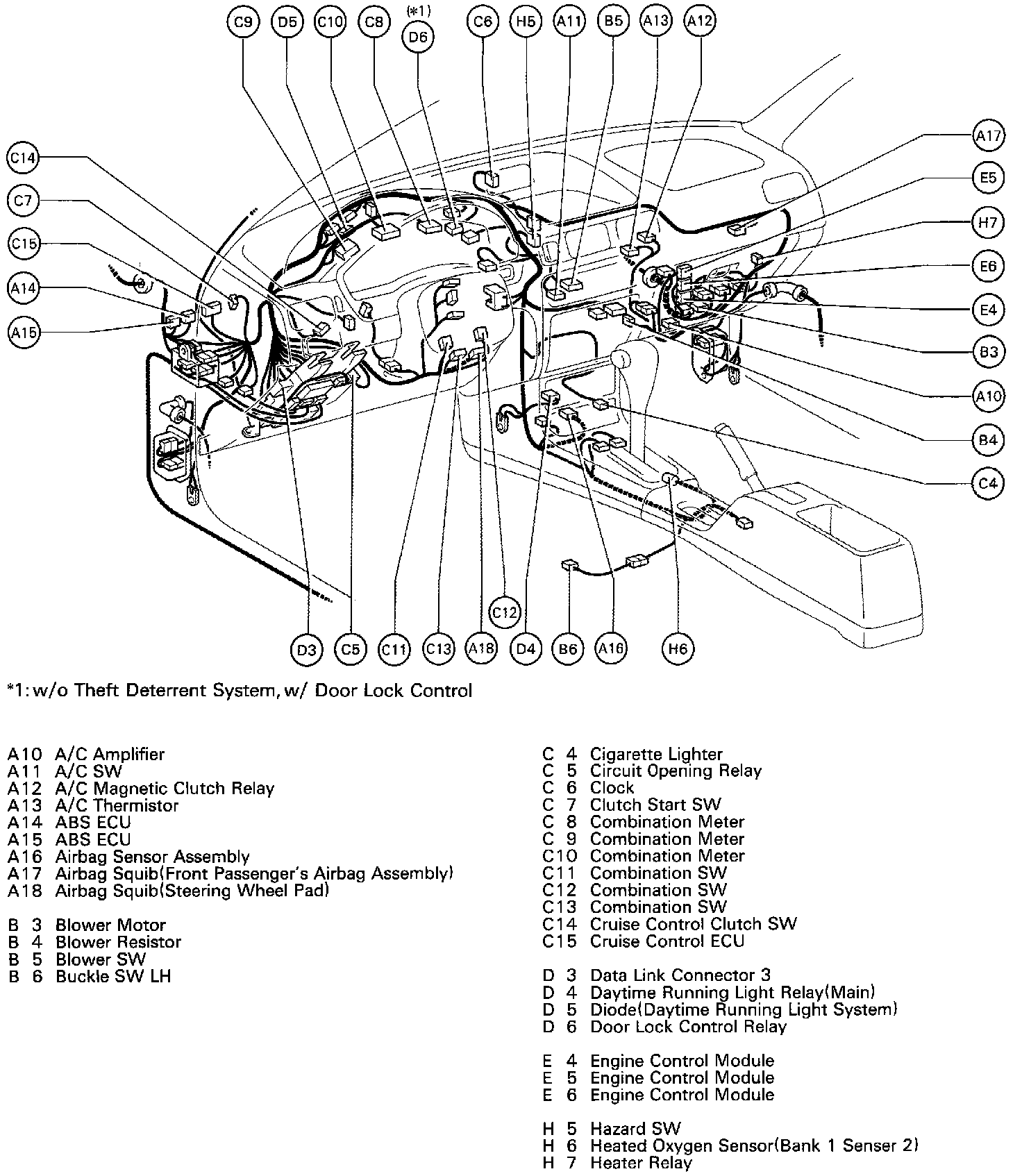

Position Of Parts In Instrument Panel (Part 1 Of 2) (Fig 26):

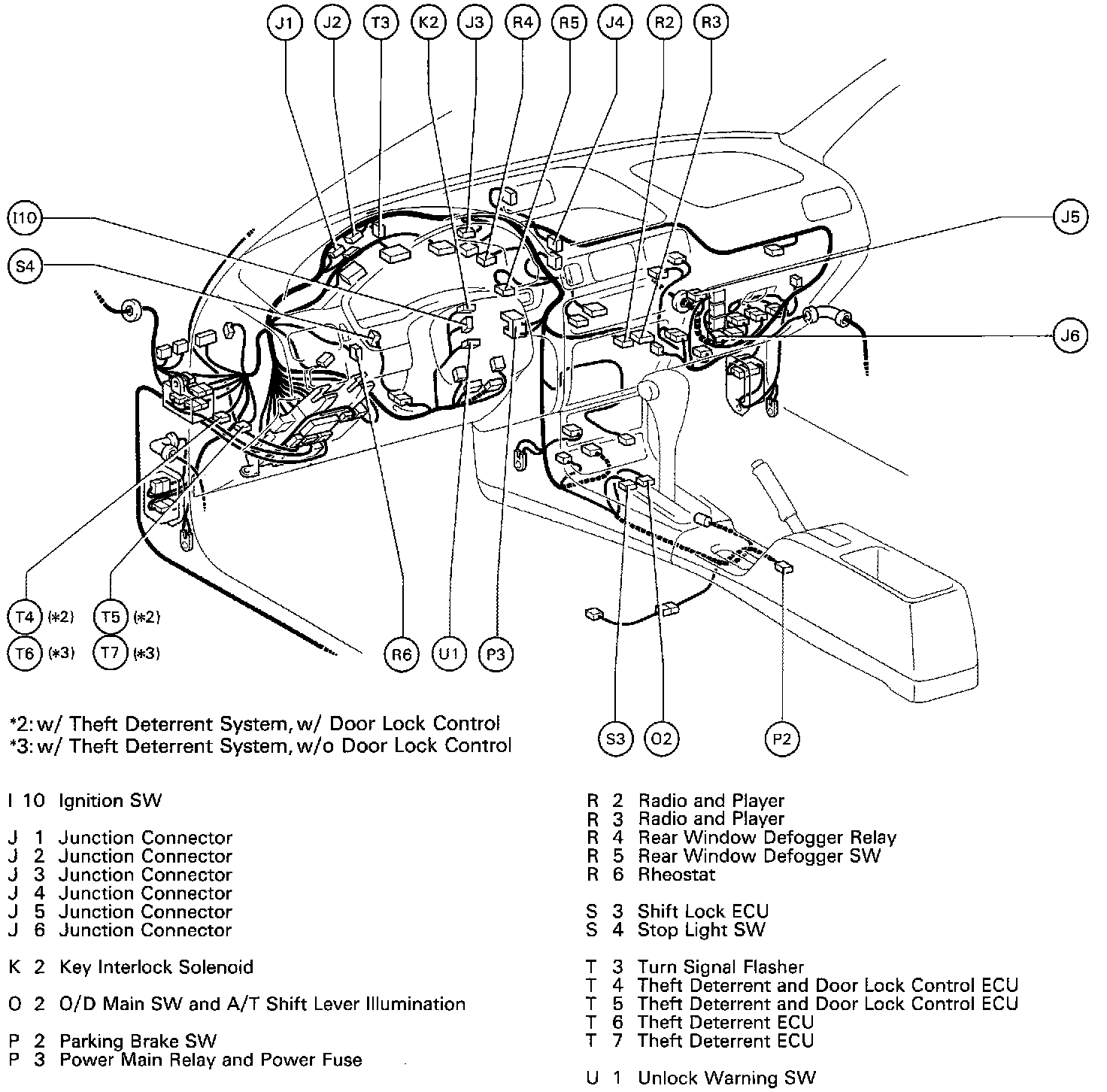

Position Of Parts In Instrument Panel (Part 2 Of 2) (Fig 27):

A10 A/C Amplifier
A11 A/C SW
A12 A/C Magnetic Clutch Relay
A13 A/C Thermistor
A14 ABS ECU
A15 ABS ECU
A16 Airbag Sensor Assembly
A17 Airbag Squib (Front Passenger's Airbag Assembly)
A18 Airbag Squib (Steering Wheel Pad)

B 3 Blower Motor
B 4 Blower Resistor
B 5 Blower SW
B 6 Buckle SW LH

C 4 Cigarette Lighter
C 5 Circuit Opening Relay
C 6 Clock
C 7 Clutch Start SW
C 8 Combination Meter
C 9 Combination Meter
C10 Combination Meter
C11 Combination SW
C12 Combination SW
C13 Combination SW
C14 Cruise Control Clutch SW
C15 Cruise Control ECU

D 3 Data Link Connector 3
D 4 Daytime Running Light Relay (Main)
D 5 Diode (Daytime Running Light System)
D 6 Door Control Relay

E 4 Engine Control Module
E 5 Engine Control Module
E 6 Engine Control Module

H 5 Hazard SW
H 6 Heated Oxygen Sensor (Bank 1 Sensor 2)
H 7 Heater Relay

I10 Ignition SW

J 1 Junction Connector
J 2 Junction Connector
J 3 Junction Connector
J 4 Junction Connector
J 5 Junction Connector
J 6 Junction Connector

K 2 Key Interlock Solenoid

L 1 Light Reminder Relay

O 2 O/D Main SW and A/T Shift Lever Illumination

P 2 Parking Brake SW
P 3 Power Main Relay and Power Fuse

R 2 Radio and Player
R 3 Radio and Player
R 4 Rear Window Defogger Relay
R 5 Rear Window Defogger SW
R 6 Rheostat

S 3 Shift Lock ECU
S 4 Stop Light SW

T 3 Turn Signal Flasher
T 4 Theft Deterrent and Door Lock Control ECU
T 5 Theft Deterrent and Door Lock Control ECU
T 6 Theft Deterrent ECU
T 7 Theft Deterrent ECU

U 1 Unlock Warning SW
