Home
>>
Toyota
>>
1997
>>
Paseo Convertible L4-1497cc 1.5L DOHC MFI
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Antilock Brakes / Traction Control Systems
>>
Electronic Brake Control Module
Electronic Brake Control Module

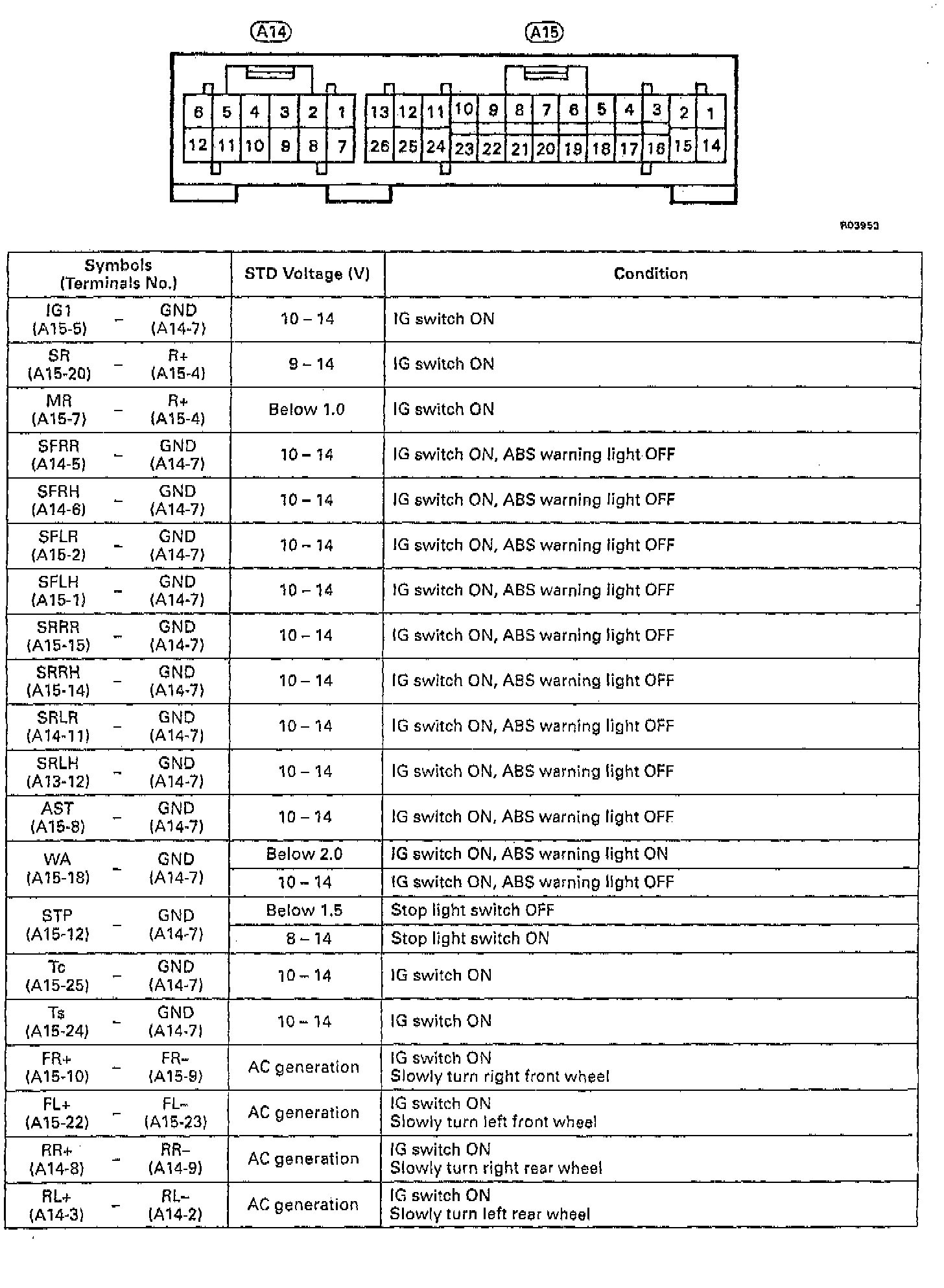

Standard Value Of ECU Terminals:
