Connector Views
>>
Antilock Brakes / Traction Control Systems
>>
System Diagram
System Diagram

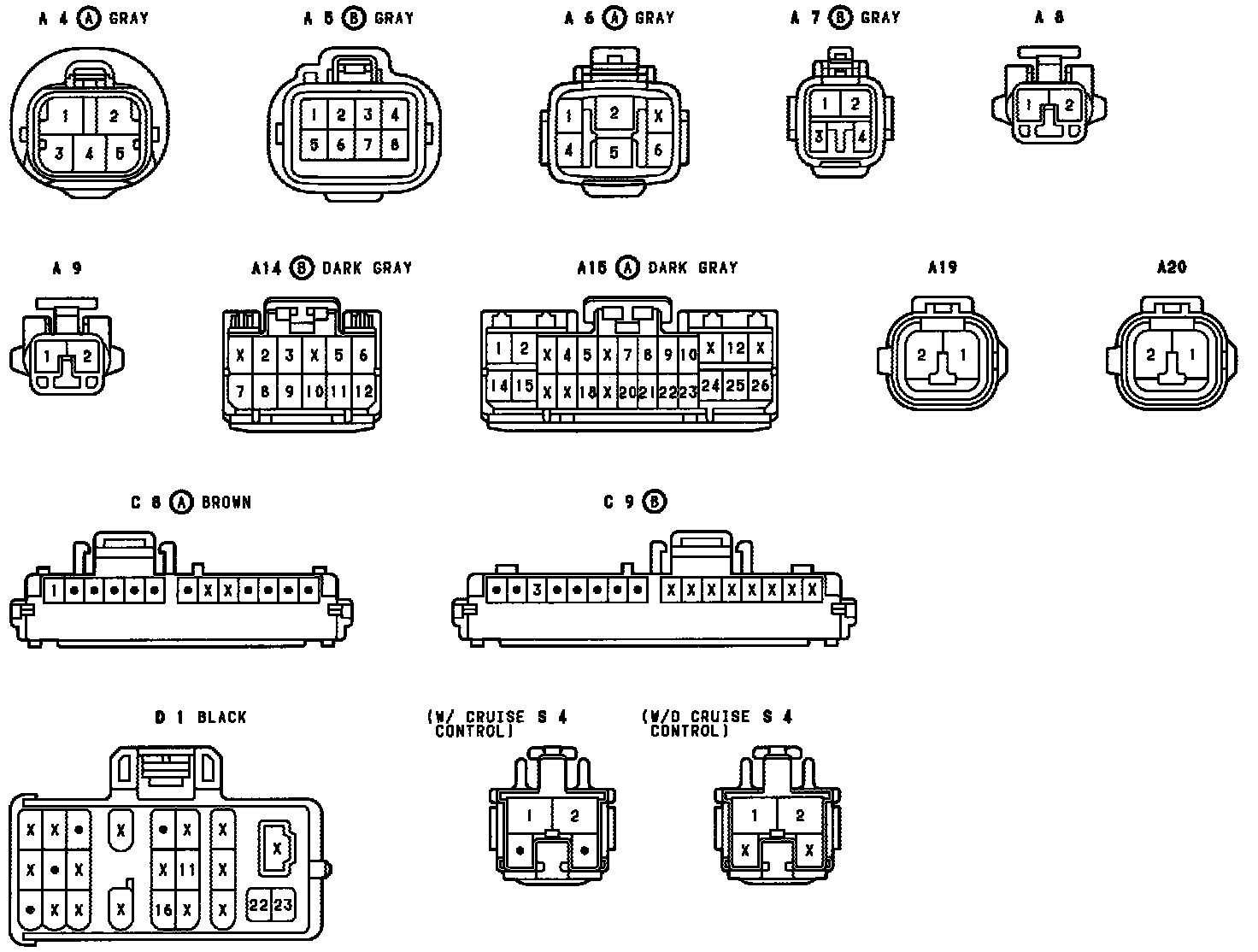

ABS (Anti-Lock Brake System)-Connectors:
