Power Locks
>>
Door Lock Control (Without Theft Deterrent System)
Door Lock Control (Without Theft Deterrent System)

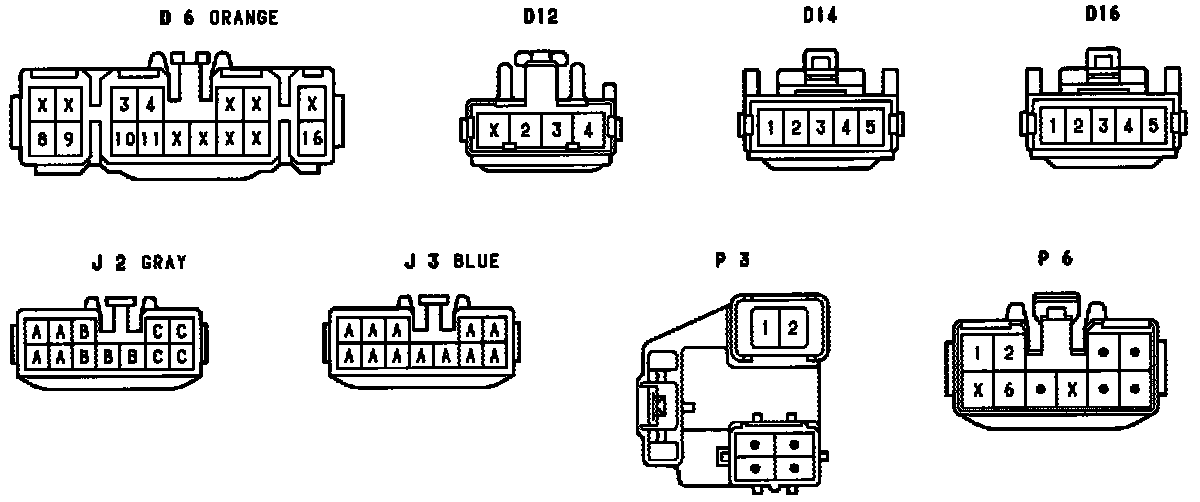

Door Lock Control (Without Theft Deterrent System)-Connectors:
