Instrument Panel and Center Console
Instrument Panel and Center Console

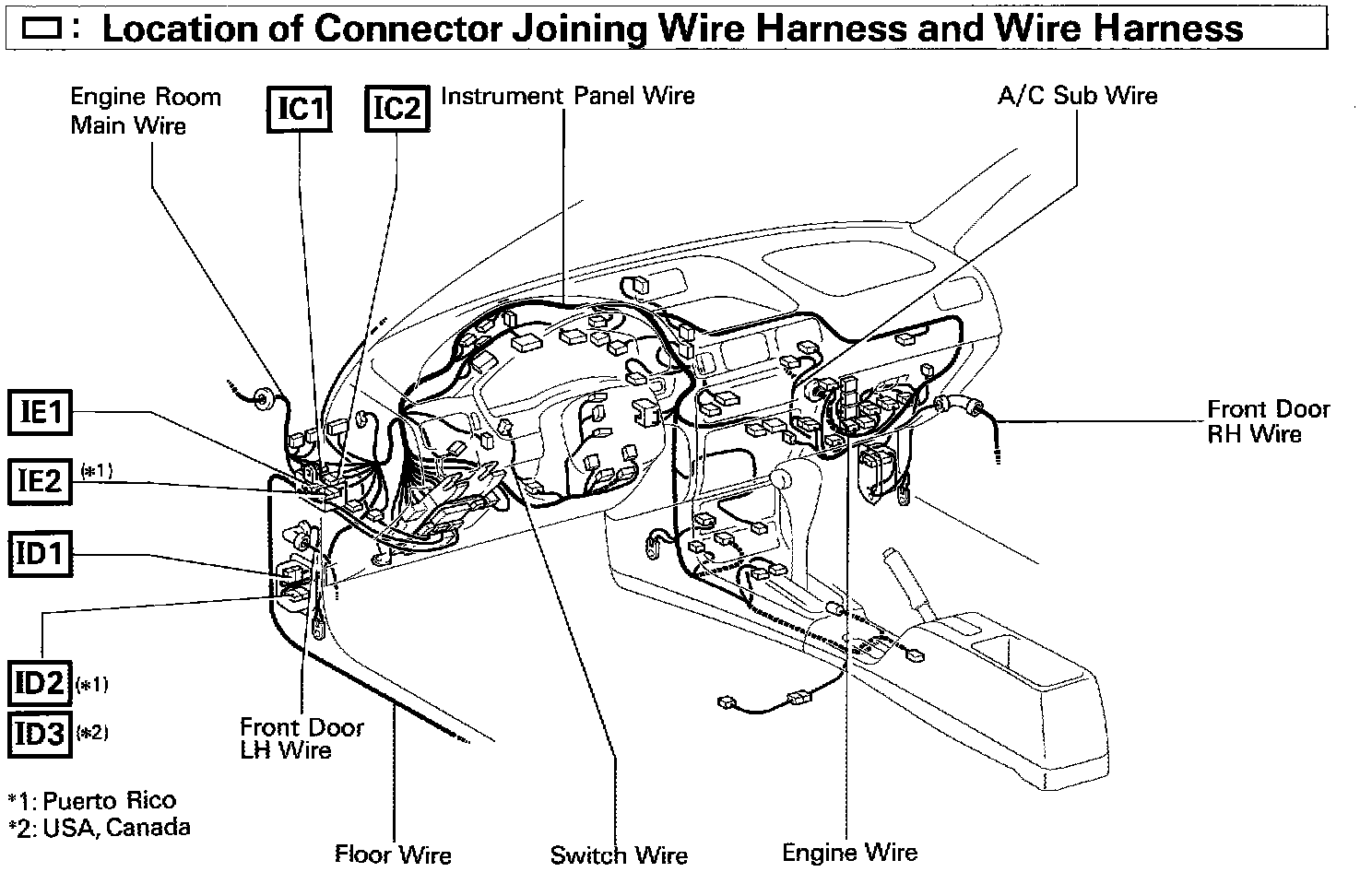

Location Of Connector Joining Wire Harness And Wire Harness (Fig. 32):

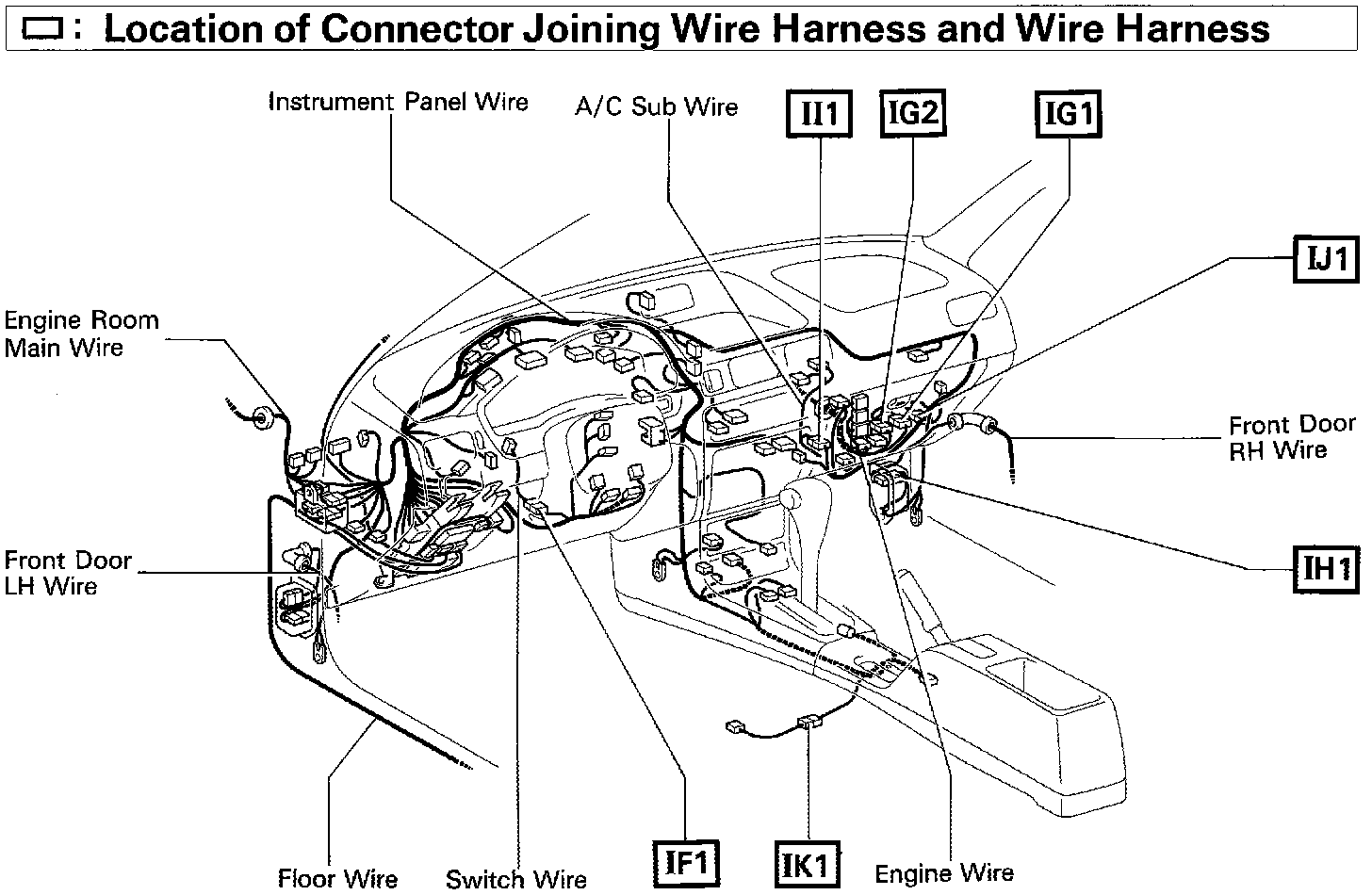

Location Of Connector Joining Wire Harness And Wire Harness (Fig. 34):
