Heating and Air Conditioning

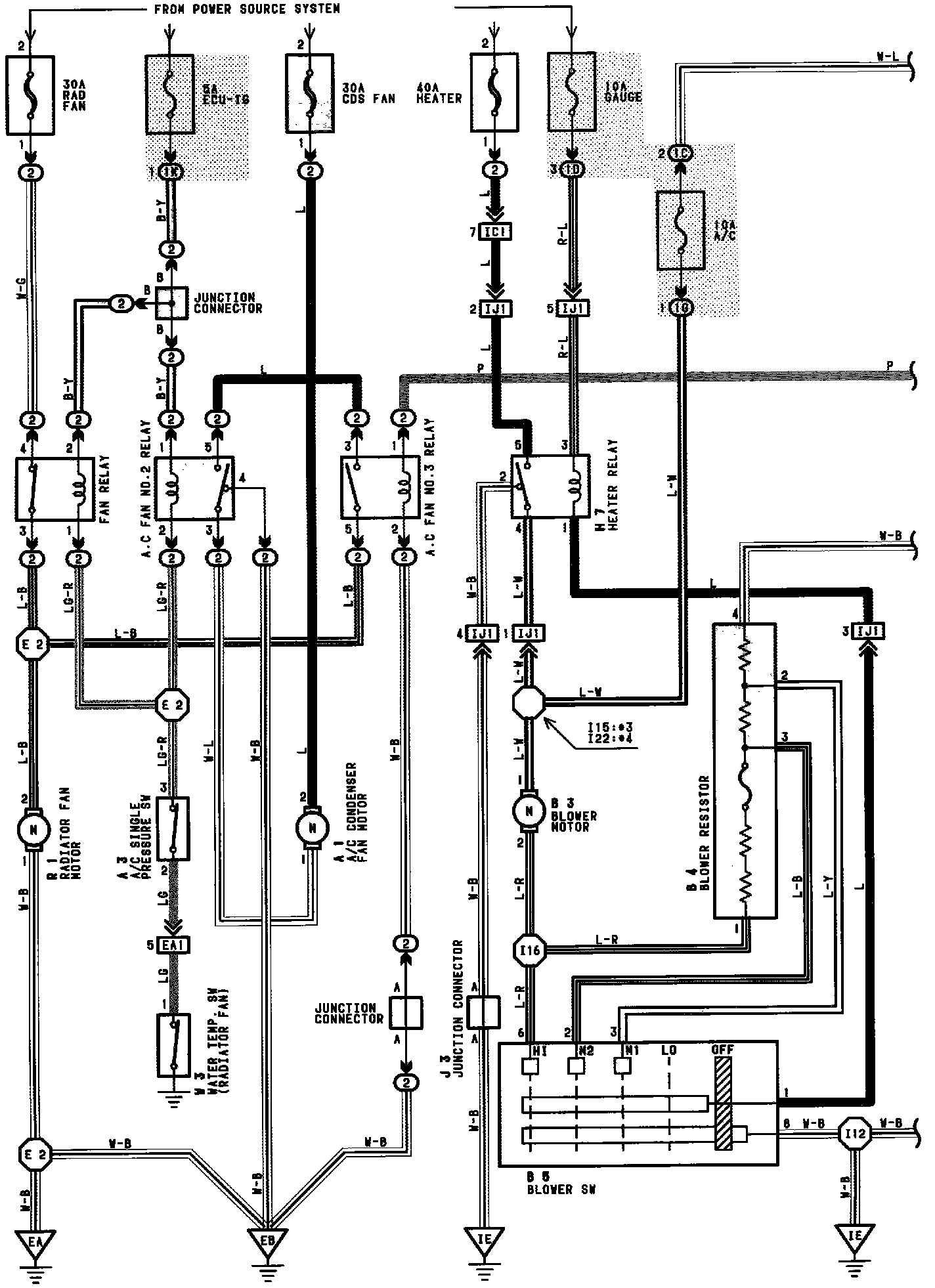

Radiator Fan And Air Conditioning (Part 1 Of 2):



Radiator Fan And Air Conditioning (Part 2 Of 2):
