Starting System Wiring Diagram

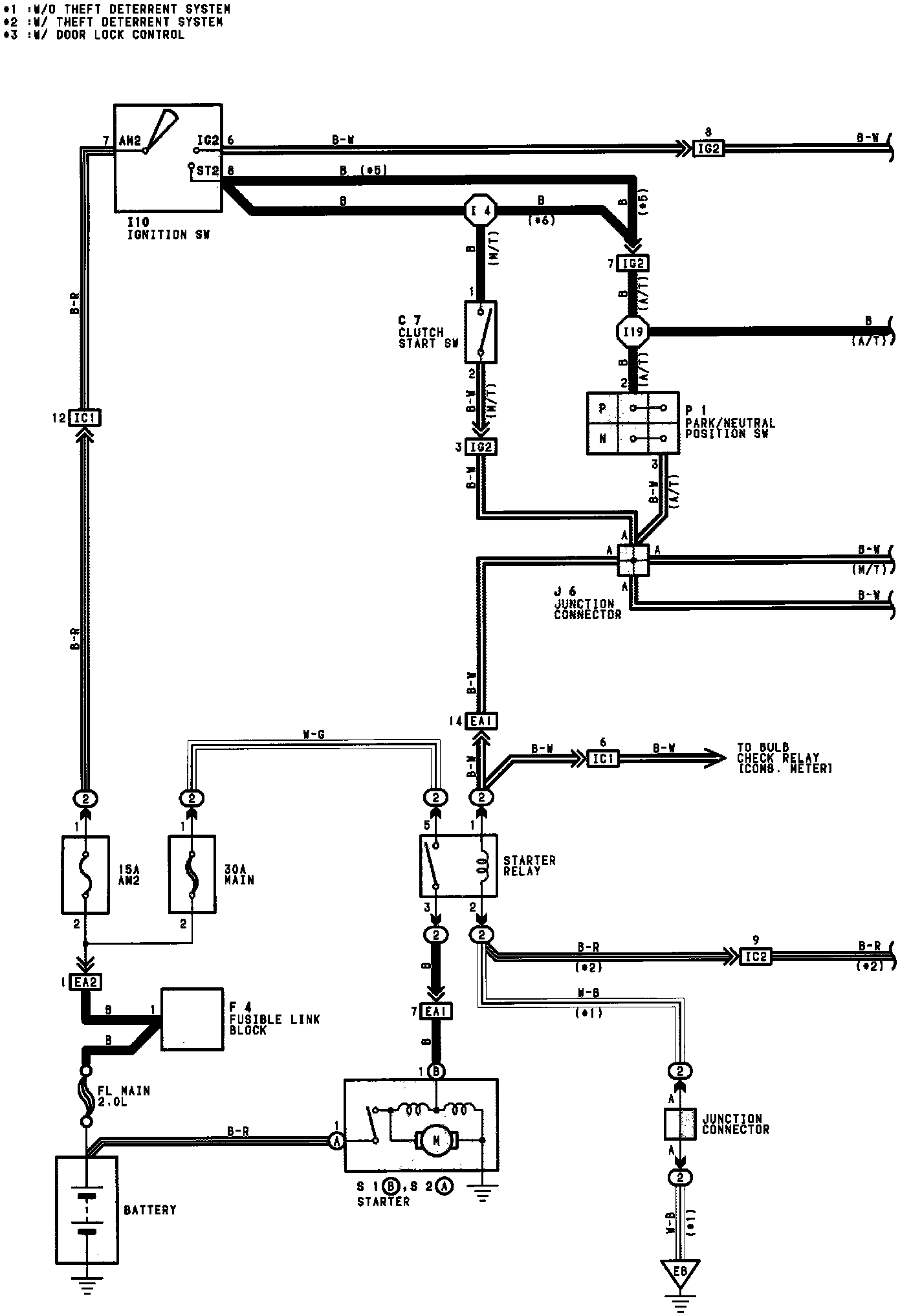

Starting And Ignition (Part 1 Of 2):

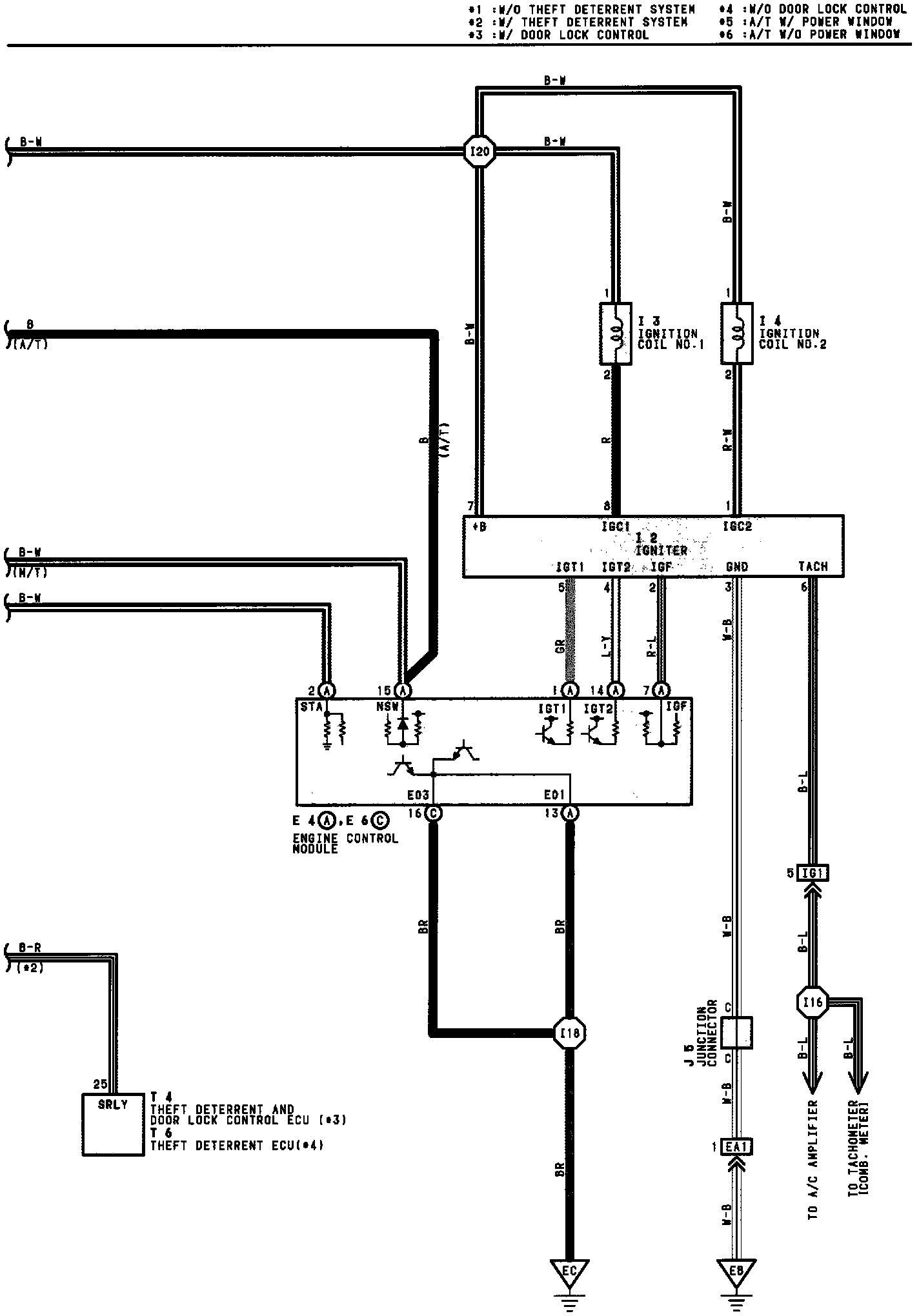

Starting And Ignition (Part 2 Of 2):
