Alternator
Alternator
Generator / Exploded View / Type A:
Generator / Exploded View / Type B:

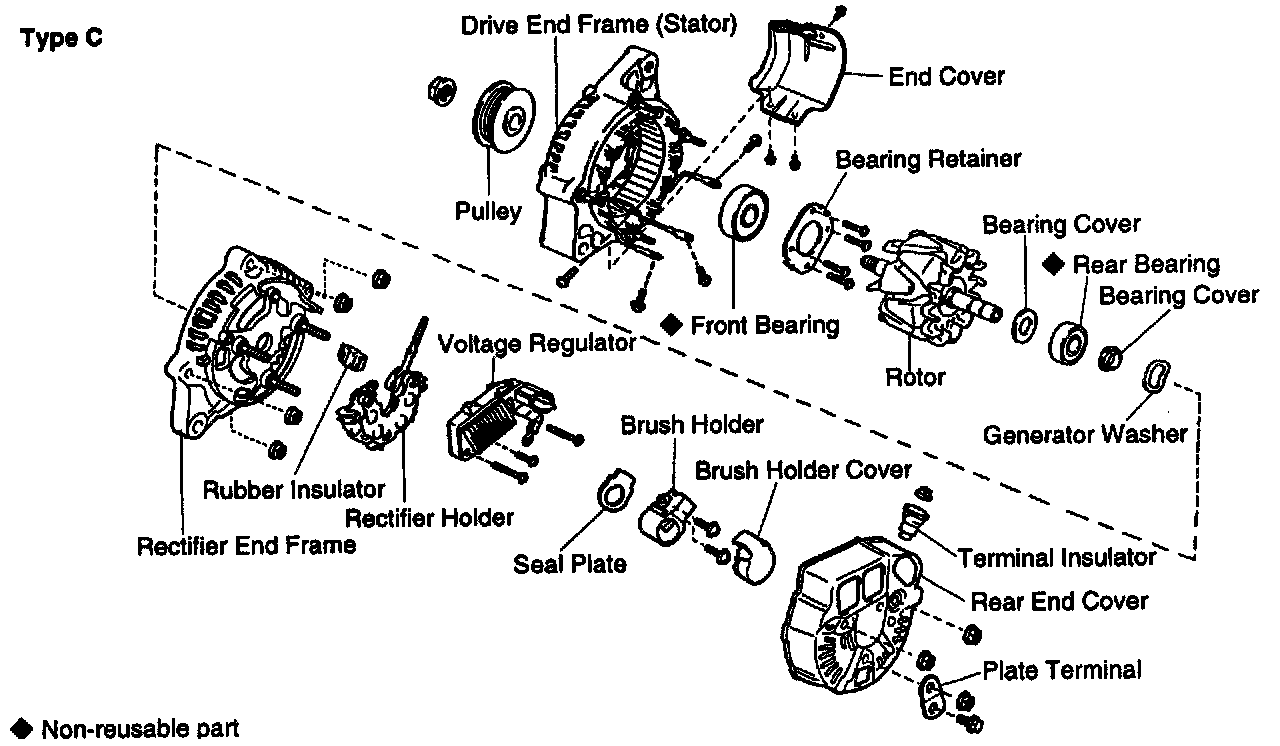

Generator / Exploded View / Type C:
