Paseo Convertible L4-1497cc 1.5L DOHC MFI
>>
Repair and Diagnosis
>>
Diagrams
>>
Exploded Views
>>
Compressor HVAC
>>
System Diagram
System Diagram

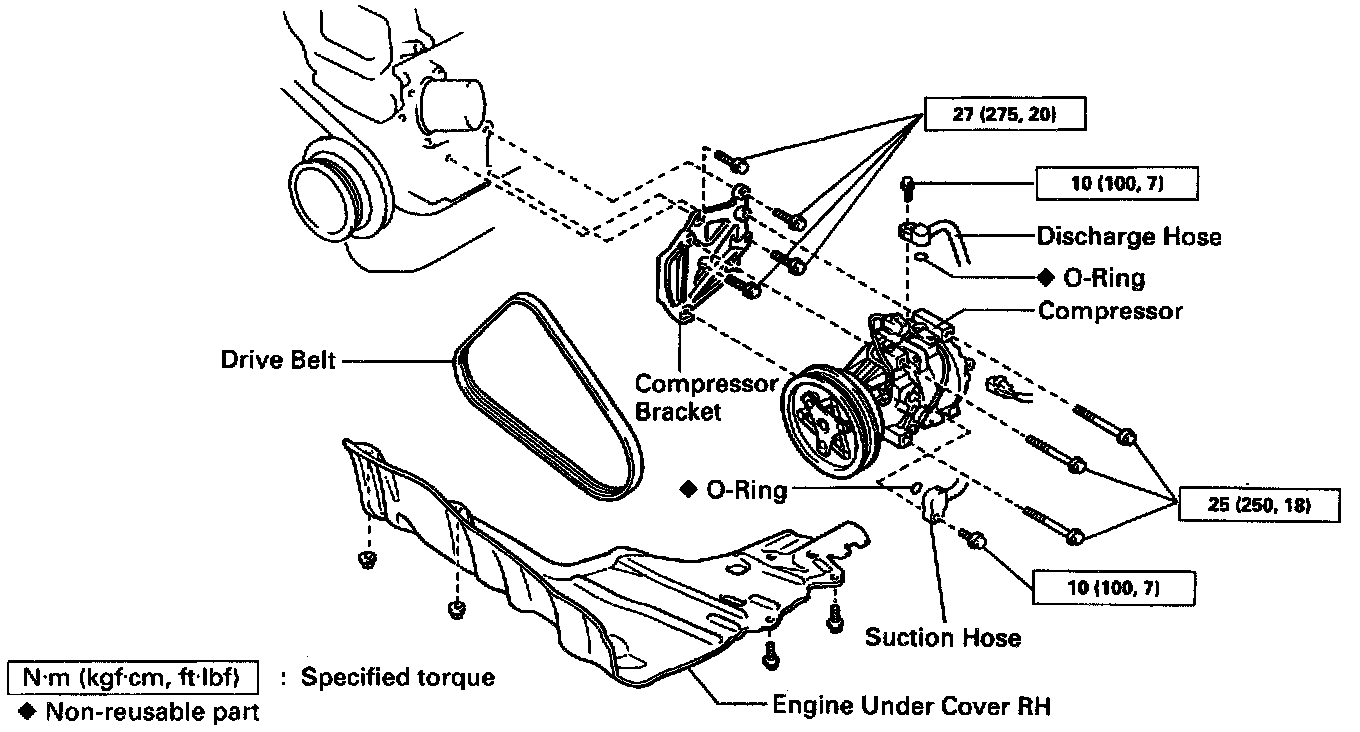

Compressor:
