Paseo Convertible L4-1497cc 1.5L DOHC MFI
>>
Repair and Diagnosis
>>
Diagrams
>>
Exploded Views
>>
Power Steering Pump
Power Steering Pump

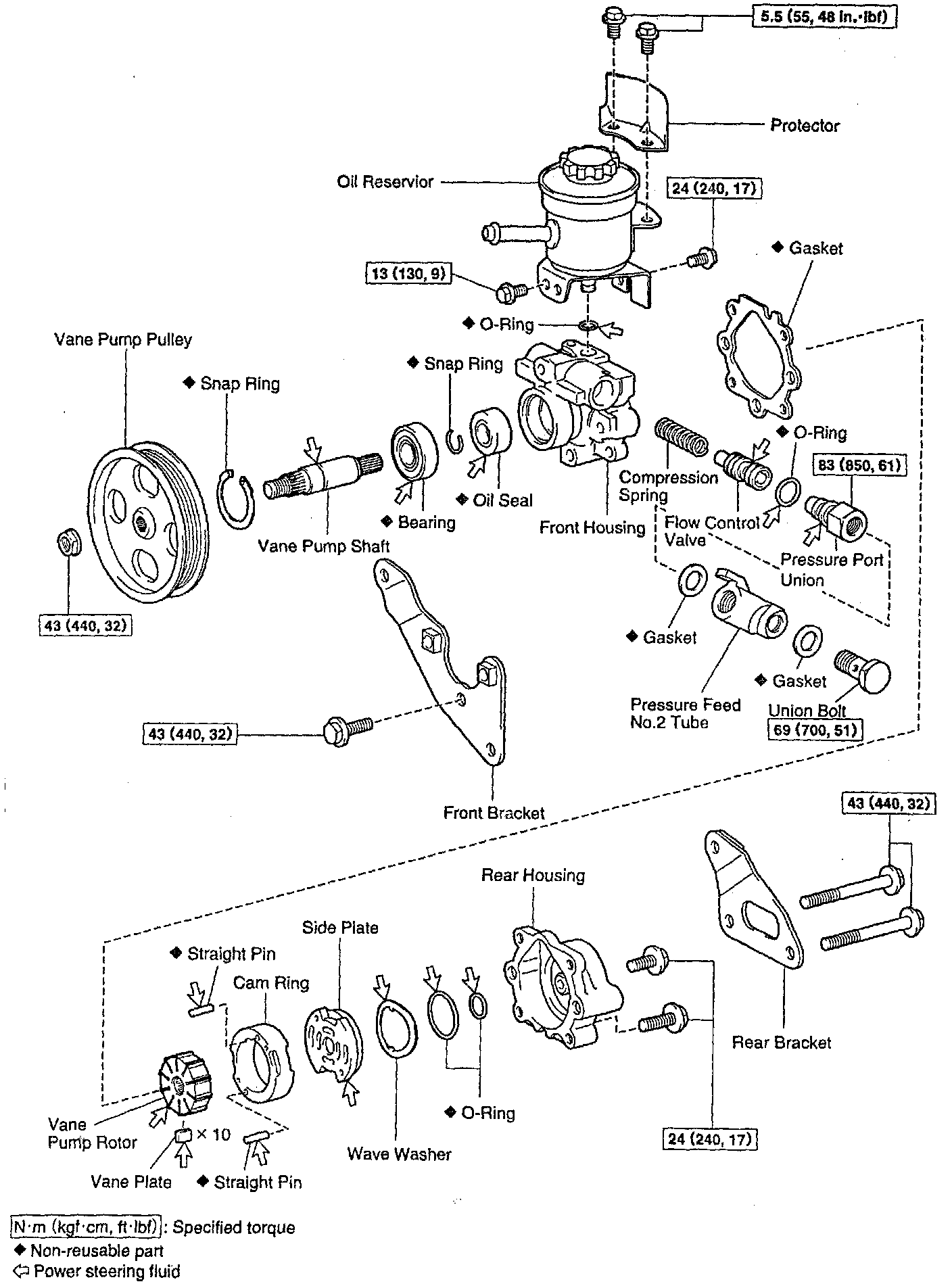

Power Steering Vane Pump / 1 Of 2:
Power Steering Vane Pump / 2 Of 2:
