Control Module HVAC: Service and Repair

AMPLIFIER REMOVAL


1. REMOVE GLOVE COMPARTMENT PARTS

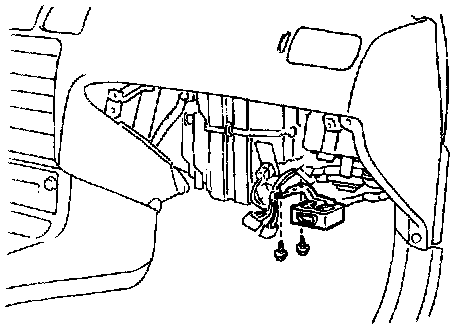

2. REMOVE A/C AMPLIFIER
a. Disconnect the connector from the amplifier.







b. Remove the 2 screws and the amplifier.

AMPLIFIER INSTALLATION
Installation is in the reverse order of removal.
