Engine Main Relay

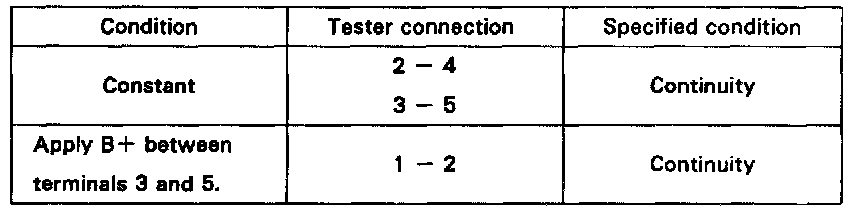

INSPECT ENGINE MAIN RELAY (Marking: MAIN) CONTINUITY
Check the relay in the same way for heater main relay.

If continuity is not as specified, replace the relay.
