Refrigerant Volume

REFRIGERANT VOLUME INSPECTION


1. SET VEHICLE IN THESE CONDITIONS:
a. Run engine at approx. 1.500 rpm.
b. Fully open the doors.

2. SET A/C CONTROL ASSEMBLY IN THESE CONDITIONS:
a. Blower speed control switch HI position.
b. A/C switch ON.
c. Air inlet control lever RECIRC position.
d. Temperature control lever COOL position.










3. INSPECT AMOUNT OF REFRIGERANT

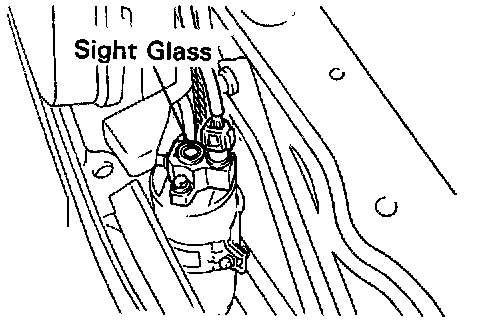

Observe the sight glass on the liquid tube.

REFRIGERANT CHARGE VOLUME

Specified amount:
600 ± 50 g (21.16 ± 1.76 oz.)
