Paseo Convertible L4-1497cc 1.5L DOHC MFI
>>
Repair and Diagnosis
>>
Instrument Panel, Gauges and Warning Indicators
>>
Diagrams
>>
Connector Views
>>

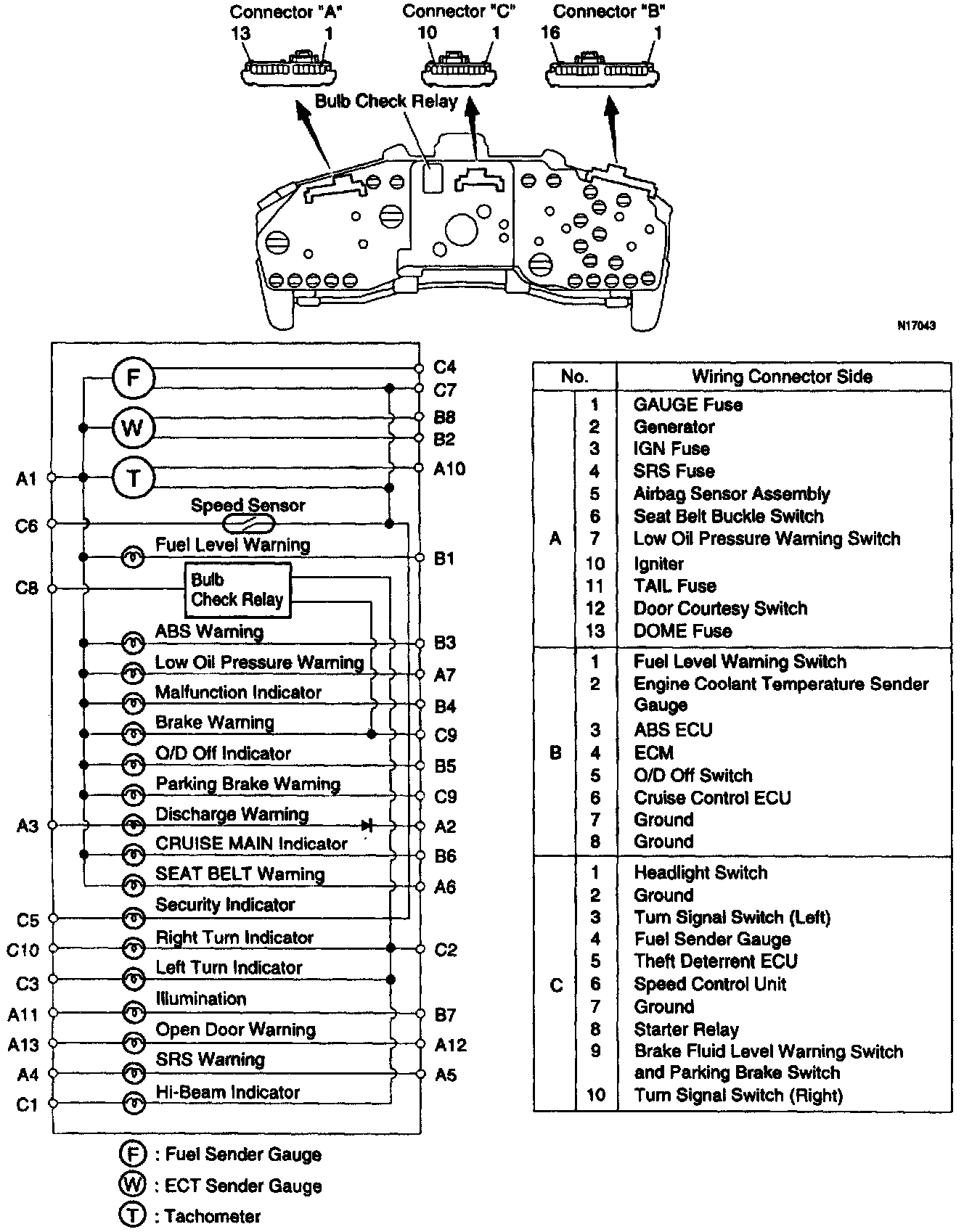

Combination Meter / Meter Circuit
Combination Meter / Meter Circuit
Combination Meter / Meter Circuit:
