Engine Control (A/T)

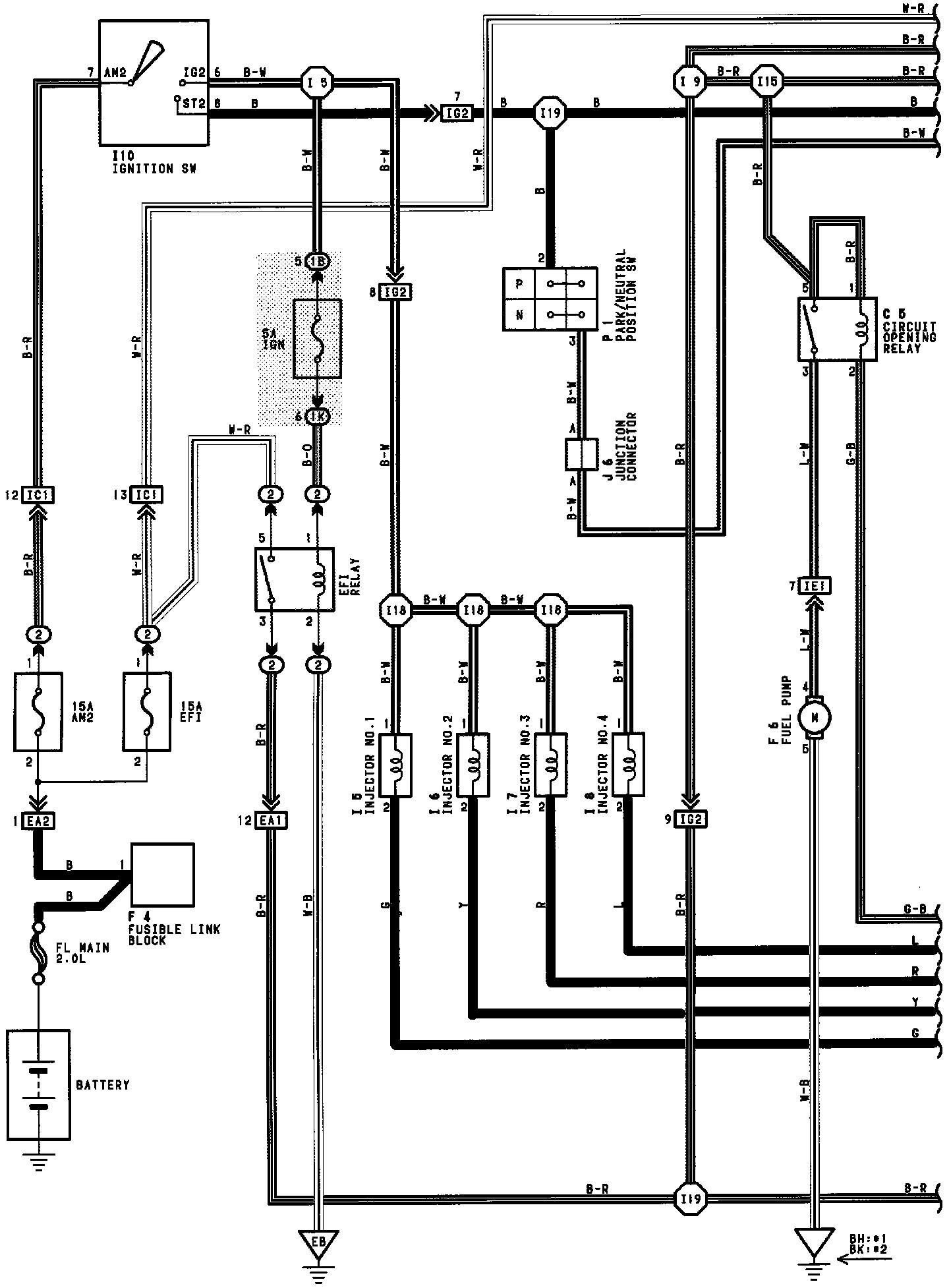

Engine Control (A/T) (Part 1 Of 4):




Engine Control (A/T) (Part 2 Of 4):




Engine Control (A/T) (Part 3 Of 4):




Engine Control (A/T) (Part 4 Of 4):
