Air Bag - Information Label On Glove Box Door

PRODUCT GENERAL INFORMATION
PG003-97

March 21, 1997

Title:
AIR BAG INFORMATION LABEL ON GLOVE BOX DOOR

Models:
All Models with Passenger Side Air Bag

Introduction

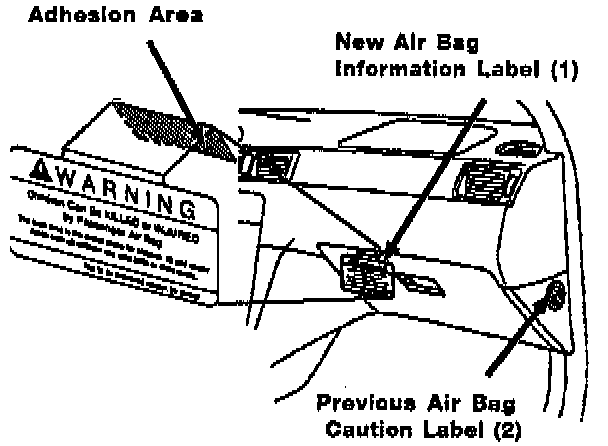

Based on the Federal Motor Vehicle Safety Standard (FMVSS) 208, the Air Bag information label (1) will be hung on the glove box door for vehicles having a passenger side air bag and produced on or after 2/25/97.

NOTE:
The air bag caution label (2) affixed voluntarily on the passenger side end of the vehicle dash will be eliminated with this change.

Affected Vehicles

^ RAV4, Tercel, Paseo, Corolla, Celica, Camry, Supra, Avalon, Previa, 4Runner, and Land Cruiser built after February 25, 1997.

NOTE:
The Air Bag Information label is NOT required on vehicles built prior to 2/25/97.

Parts Information

NEW PART NUMBER PART NAME

74599-06010 Label, Driver and Passenger Information

Procedure





1. During PDS, check to insure that vehicles produced on or after 2/25/97 are in compliance with FMVSS 208 by having the label hung on the glove box door.

2. If the label is missing or damaged, the appropriate label can be ordered through the parts system.
