Alignment

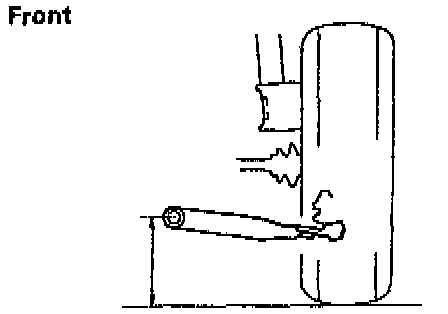

Front:

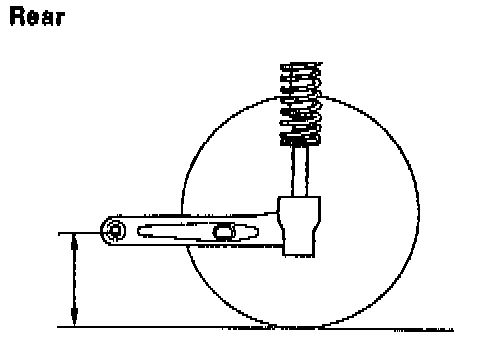

Rear:

VEHICLE HEIGHT
Tire Size P185/60R14 82H
Front 188.0 mm (7.40 inch)
Rear 249.0 mm (9.80 inch)

FRONT:
Toe-In (total):
0° 6' ± 12' (0.1° ± 0.2°)
1 ± 2 mm (0.04 ± 0.08 inch)

Rack-End Length Difference
Left-Right Error 1.5 mm (0.059 inch) or less

Camber:
-0° 25' ± 45' (-0.42° ± 0.75°)
Left-Right Error 45' (0.75°) or less

Caster:
1° 30' ± 45' (1.50° ± 0.75°)
Left-Right Error 45' (0.75°) or less

Steering Axis Inclination:
12° 15' ± 45' (12.25° ± 0.75°)
Left-Right Error 45' (0.75°) or less

Wheel Angle:
Inside 35° 45' ± 2° 00' (35.75° ± 2°)
Outside (Reference) 32° 05' (32.08°)


REAR:
Toe-In
0° 20' ± 0.° 20' (0.33° ± 0.33°, 3.4 ± 3.4 mm, 0.13 ± 0.13 inch)

Camber
-0° 30' ± 45' (-0.50° ± 0.75°)
Left-Right Error 45' (0.75°) or less
