Pinout Values and Diagnostic Parameters

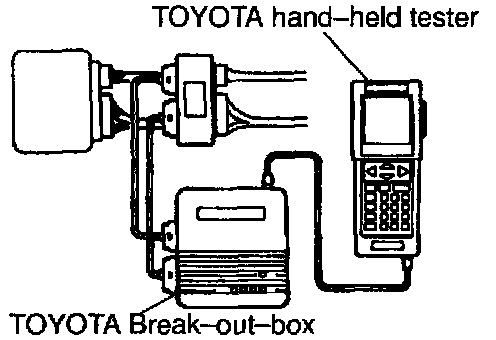

ECU TERMINAL VALUES MEASUREMENT BY USING TOYOTA BREAK-OUT-BOX AND TOYOTA HAND-HELD TESTER
(a) Hook up the TOYOTA break-out-box and TOYOTA hand-held tester to the vehicle.
(b) Read the ECU input/output values by following the prompts on the tester screen.
(c) Please refer to the TOYOTA hand-held tester has a "Snap-shot" function. This records the measured data and is effective in the diagnosis of intermittent problems.

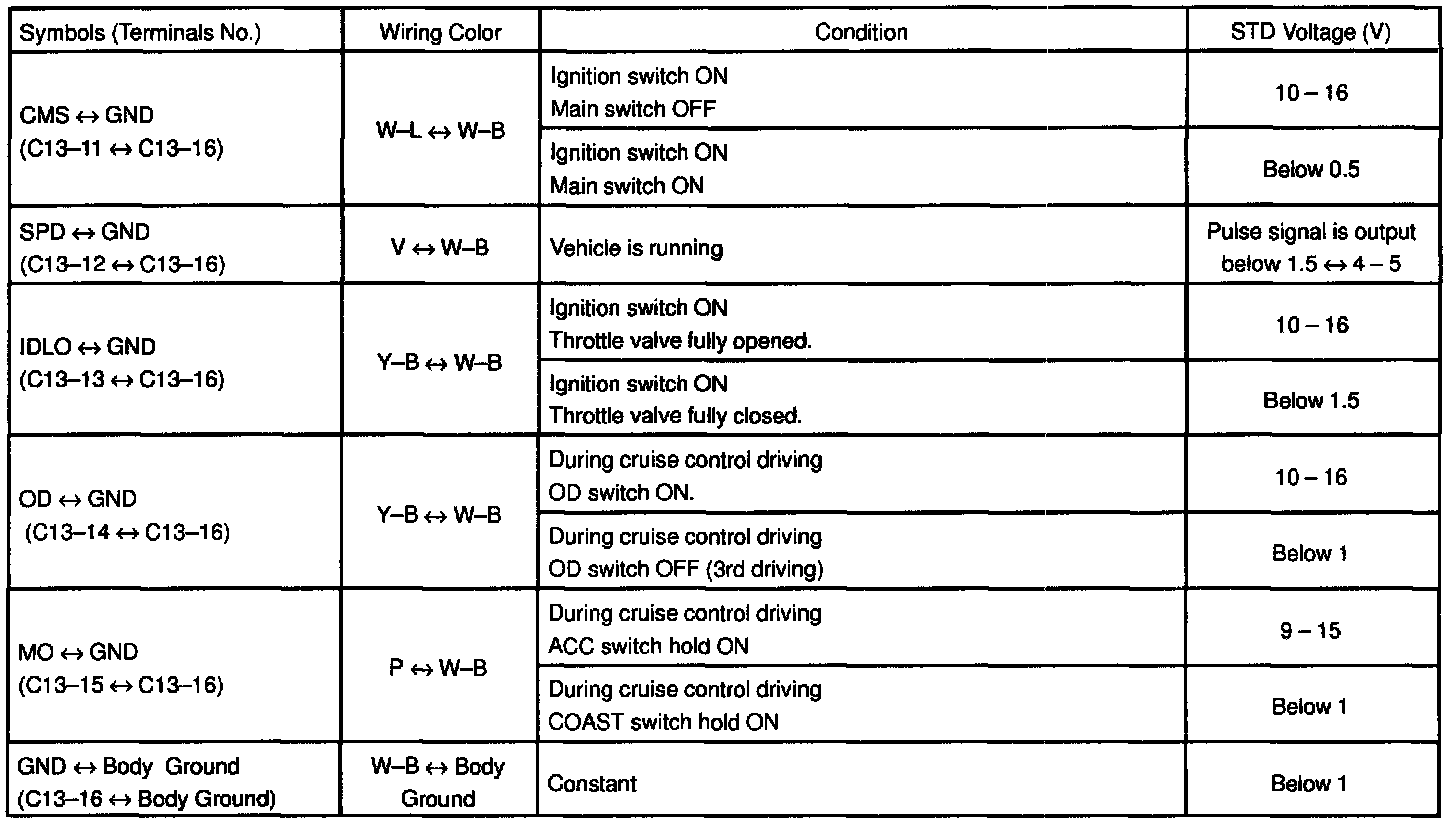

TERMINAL VALUES
