Engine: Diagrams

RADIATOR ASSEMBLY, EXHAUST PIPING AND FRESH AIR INTAKE

ENGINE MOUNTING INSULATORS, ABSORBER AND No.2 RH BRACKET

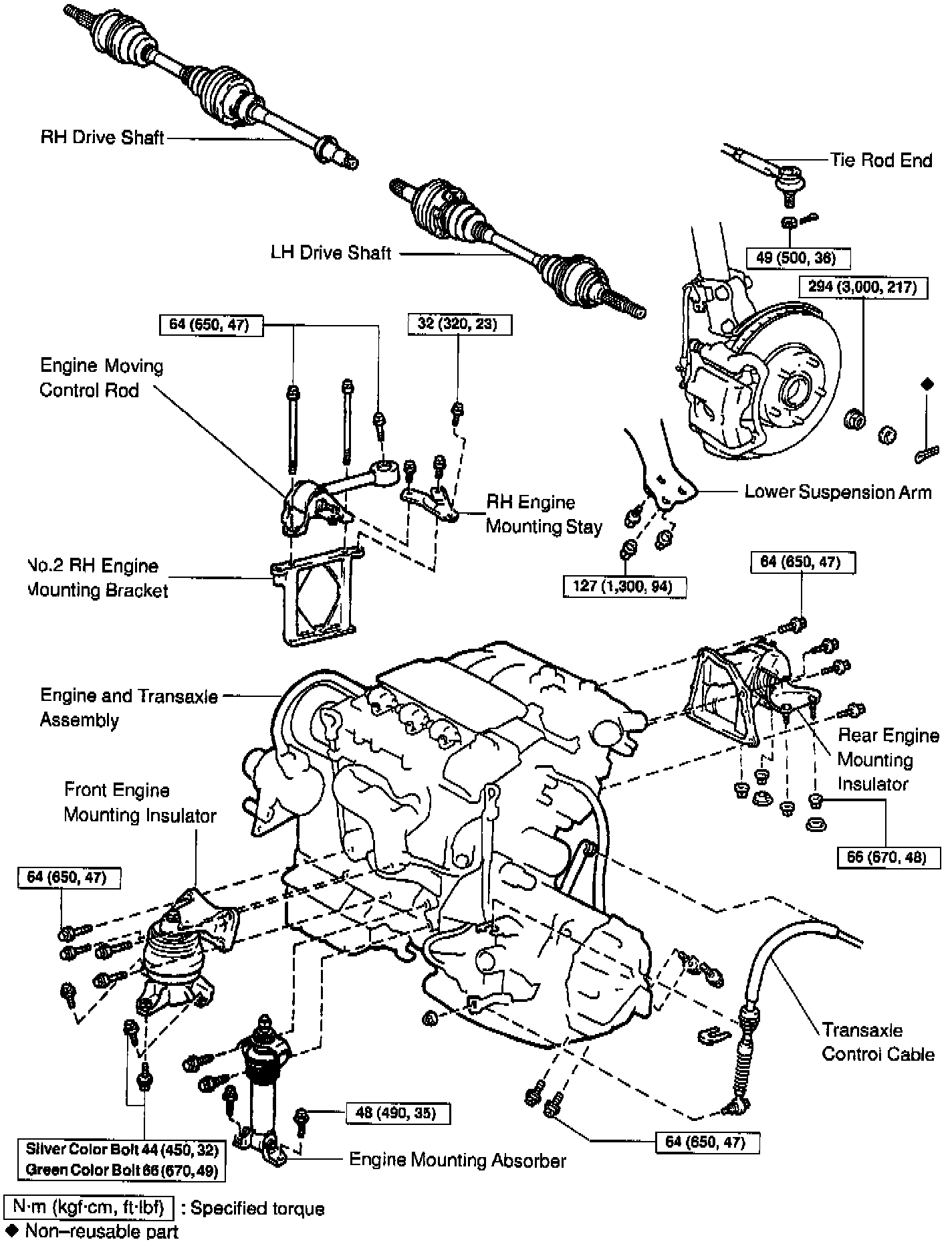

ENGINE AND TRANSAXLE ASSEMBLIES
