Blower Motor Resistor: Service and Repair

REMOVAL
1. Manual A/C:

REMOVE BLOWER RESISTOR
a. Remove these pars:
1. Front door scuff plate LH
2. Cowl side trim LH
3. Lower finish panel
4. Instrument panel finish lower LH.

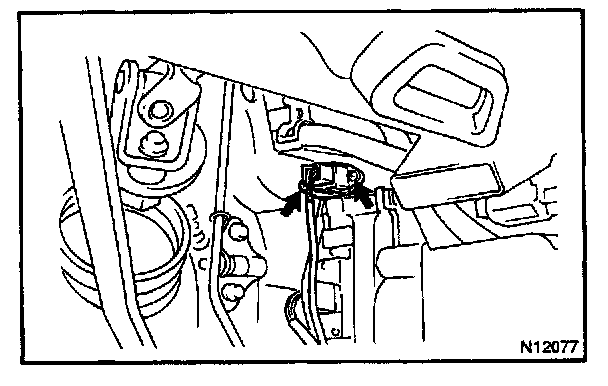

b. Remove the blower resistor.
1. Disconnect the connector.
2. Remove the 2 screws and blower resistor.

2. Auto A/C:

REMOVE BLOWER RESISTOR
a. Remove these pars:
1. Front door scuff plate LH
2. Cowl side trim LH
3. Lower finish panel
4. Instrument panel finish lower LH

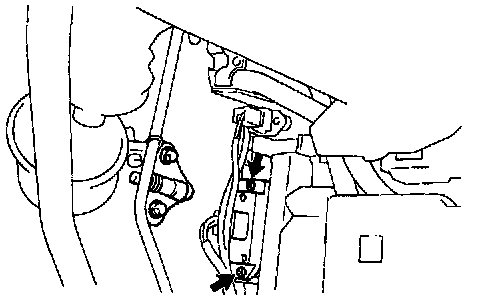

b. Remove the blower resistor.
1. Disconnect the connector.
2. Remove the 2 screws and blower resistor.

INSTALLATION
Installation is in the reverse order of removal.
