Audible Warning Device: Testing and Inspection

INSPECT WIRELESS DOOR LOCK BUZZER OPERATION

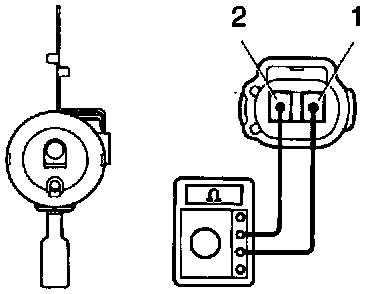

Connect the positive (+) lead from the ohmmeter to terminal 1 and the negative (-) lead to terminal 2, and measure resistance approx. 1 k Ohms.
If resistance is not as specified, replace the buzzer.

INSPECT WIRELESS DOOR LOCK BUZZER CIRCUIT
