B0101

DTC B0101 Short in D Squib Circuit




CIRCUIT DESCRIPTION

The D squib circuit consists of the airbag sensor assembly, spiral cable and steering wheel pad.
It causes the SRS to deploy when the SRS deployment conditions are satisfied.
For details of the function of each component, see OPERATION.
DTC B0101/14 is recorded when a ground short is detected in the D squib circuit.




WIRING DIAGRAM

INSPECTION PROCEDURE

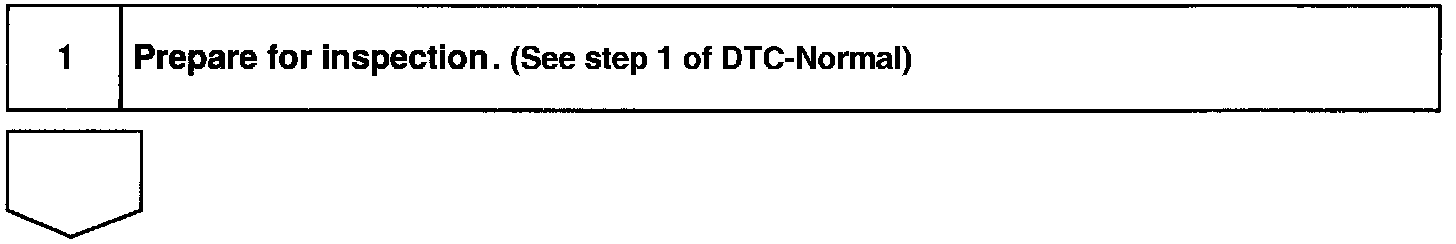

Step 1/Prepare for Inspection




Step 2/Check D squib circuit




Step 3/Check airbag sensor assembly




Step 4/Check D squib

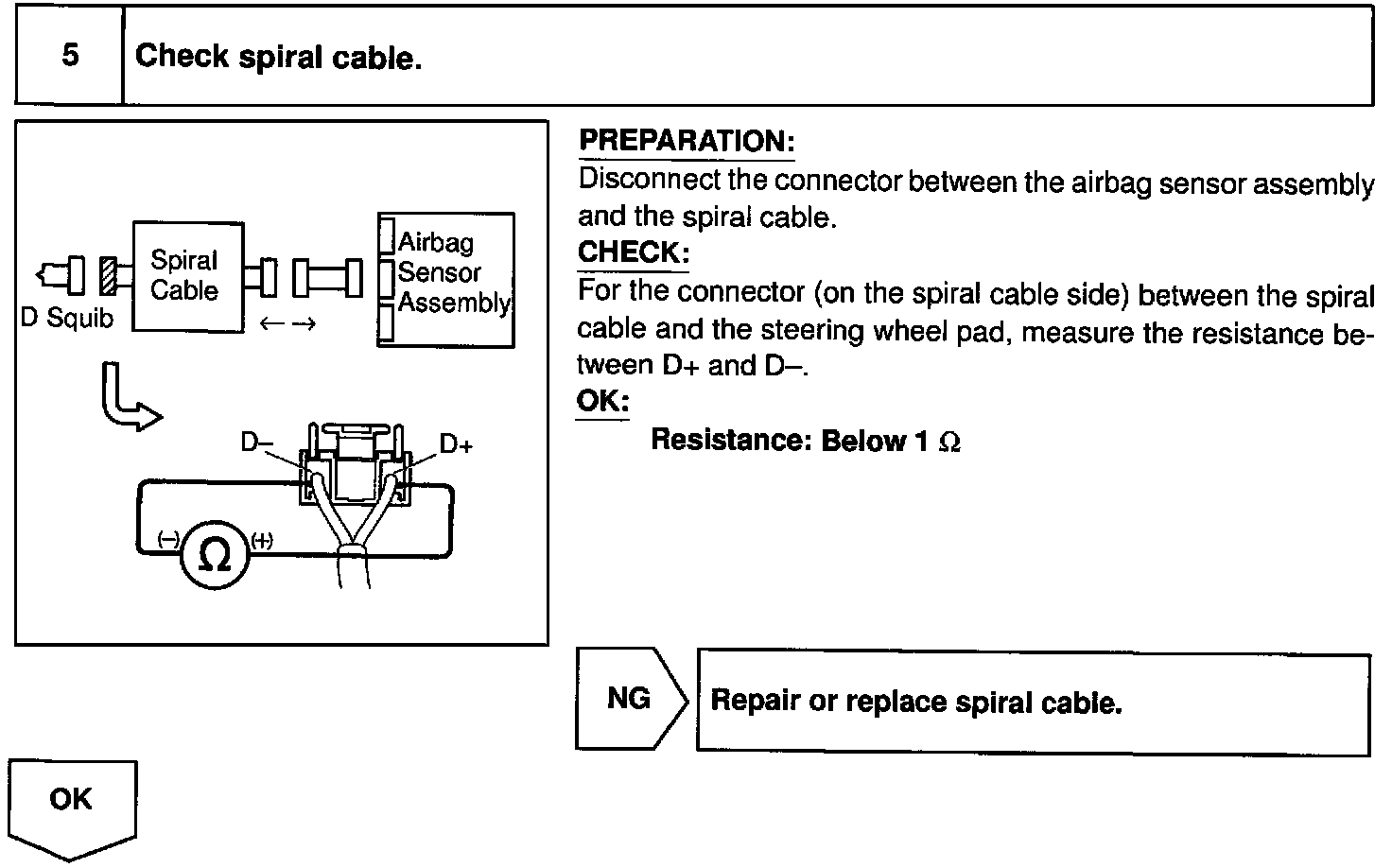

Step 5/Check Spiral Cable




Step 6/Check harness between airbag sensor assembly and spiral cable
