B0135

DTC B0135 Short In P/T Squib (LH) Circuit




CIRCUIT DESCRIPTION

The P/T squib (LH) circuit consists of the airbag sensor assembly and seat belt pretensioner (LH).
It causes the seat belt pretensioner (LH) to activate when the seat belt pretensioner (LH) activation conditions are satisfied.
For details of the function of each component, see OPERATION.

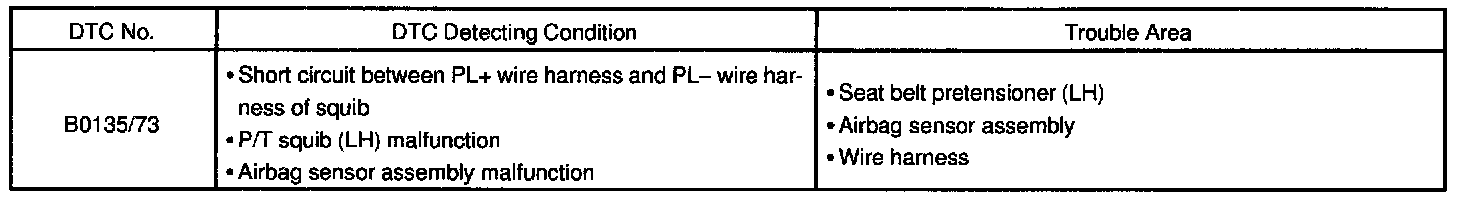

DTC B0135/73 is recorded when a short is detected in the P/T squib (LH) circuit.

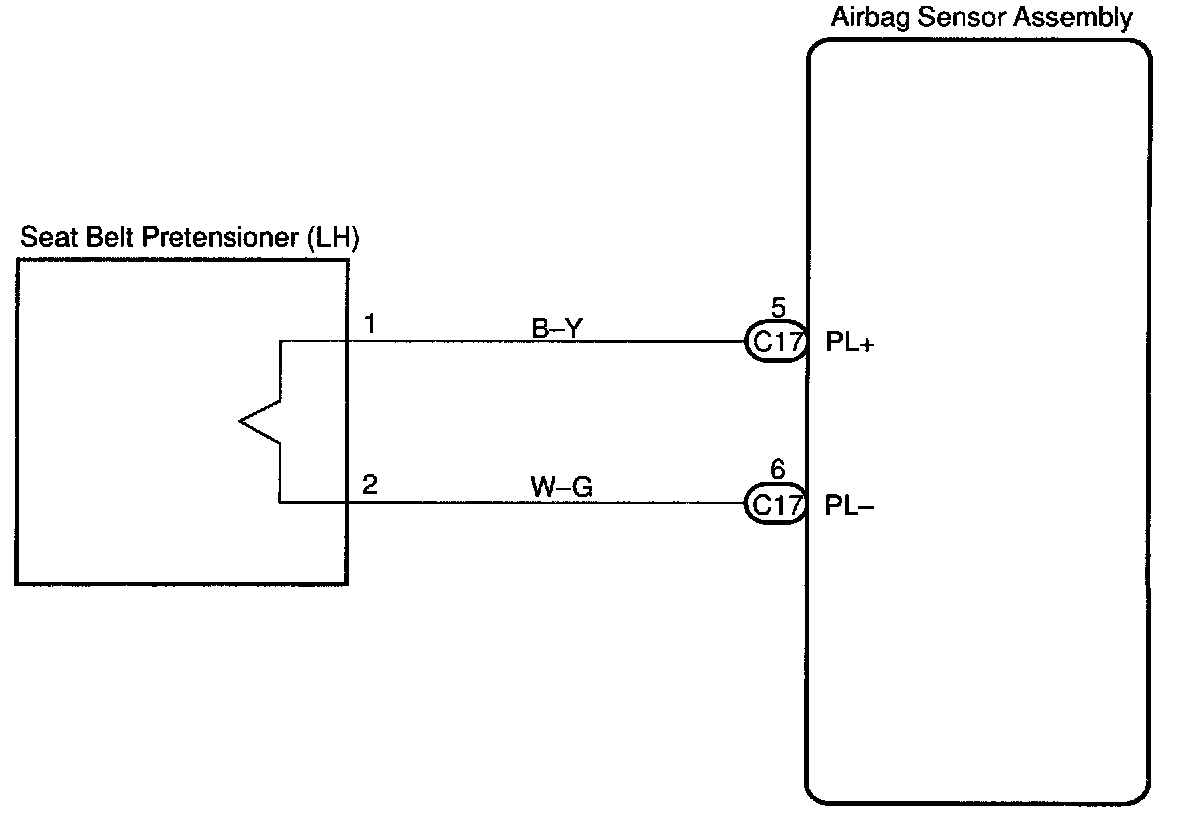

WIRING DIAGRAM

INSPECTION PROCEDURE

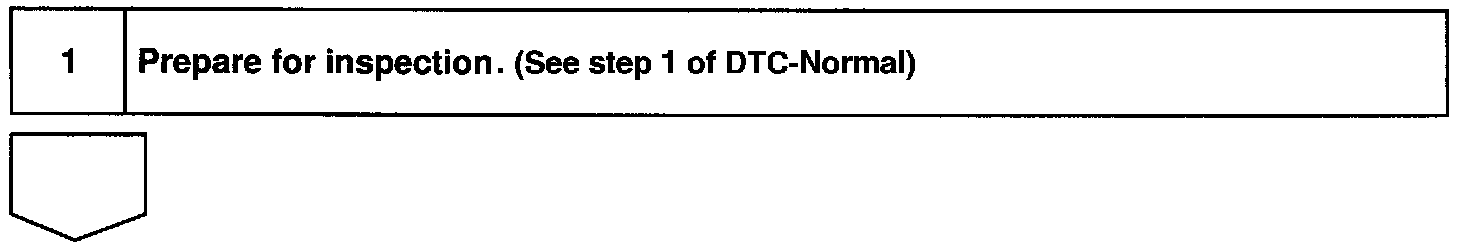

Step 1/Prepare for Inspection

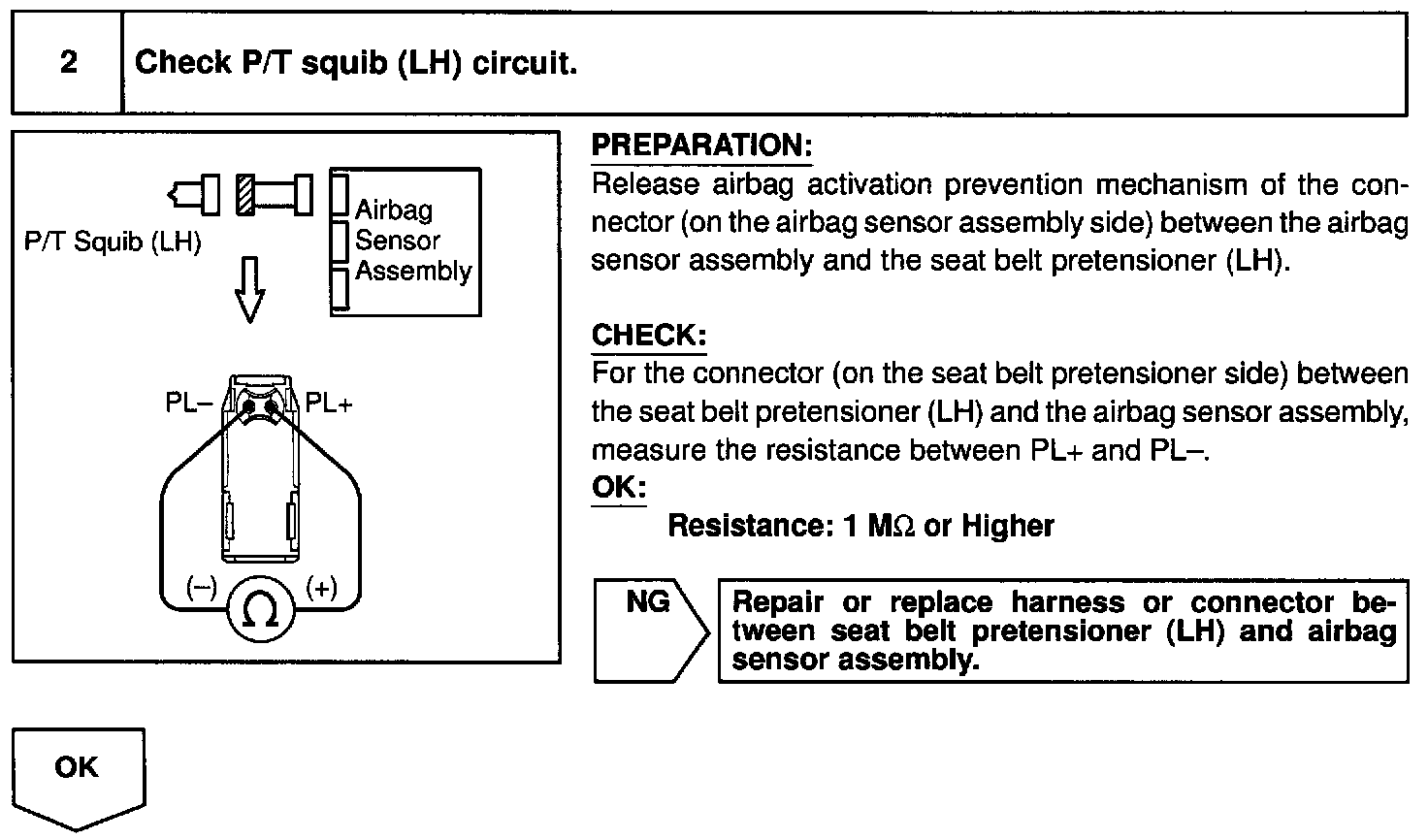

Step 2/Check P/T squib (LH) circuit




Step 3/Check airbag sensor assembly




Step 4/Check P/T squib (LH)
