B1156

DTC B1156 Front Airbag Sensor (RH) Malfunction




CIRCUIT DESCRIPTION

The front airbag sensor (RH) circuit consists of the airbag sensor assembly and front airbag sensor (RH).
For details of the function of each component, see OPERATION.
DTC B1156/B1157/15 is recorded when malfunction is detected in the front airbag sensor (RH) circuit.

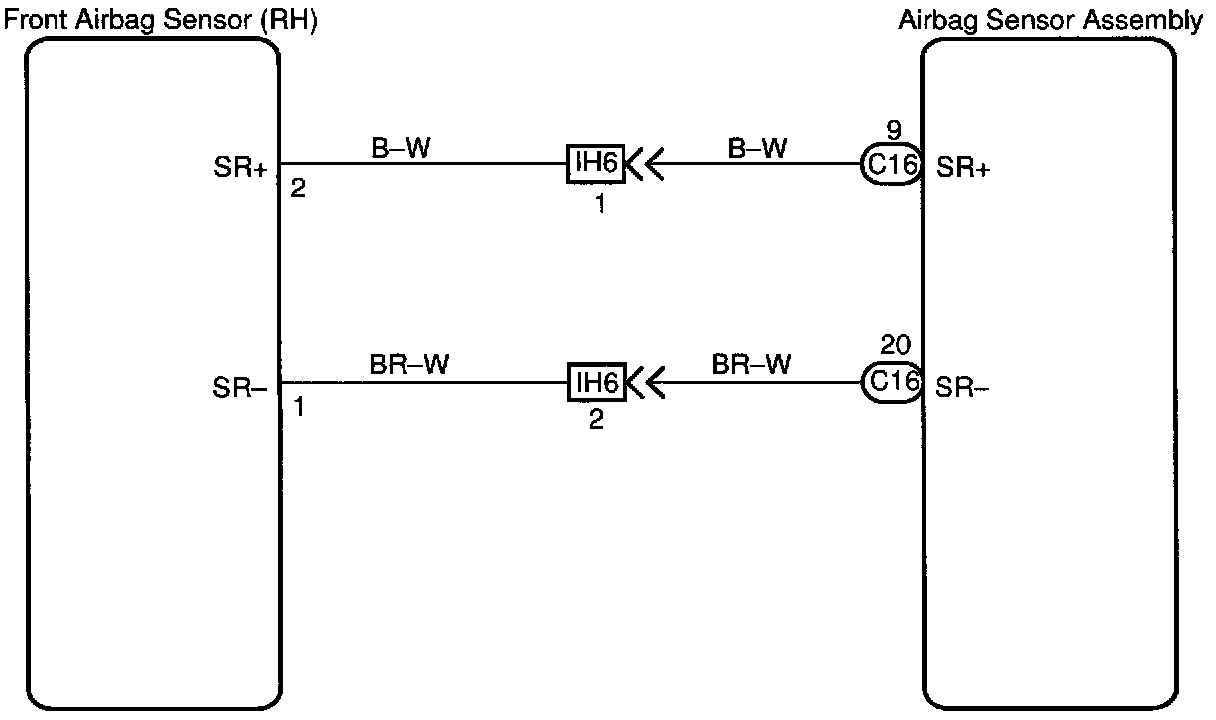

WIRING DIAGRAM

INSPECTION PROCEDURE

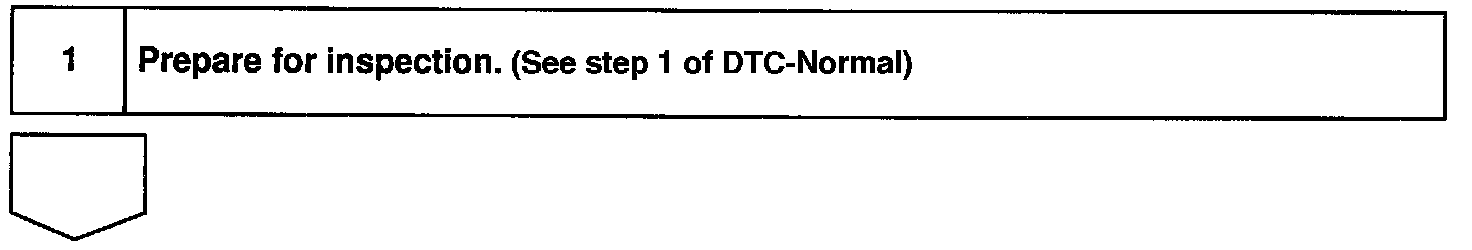

Step 1/Prepare for inspection




Step 2/Check front airbag sensor (RH) circuit




Step 3/Check front airbag sensor (RH) (to ground)

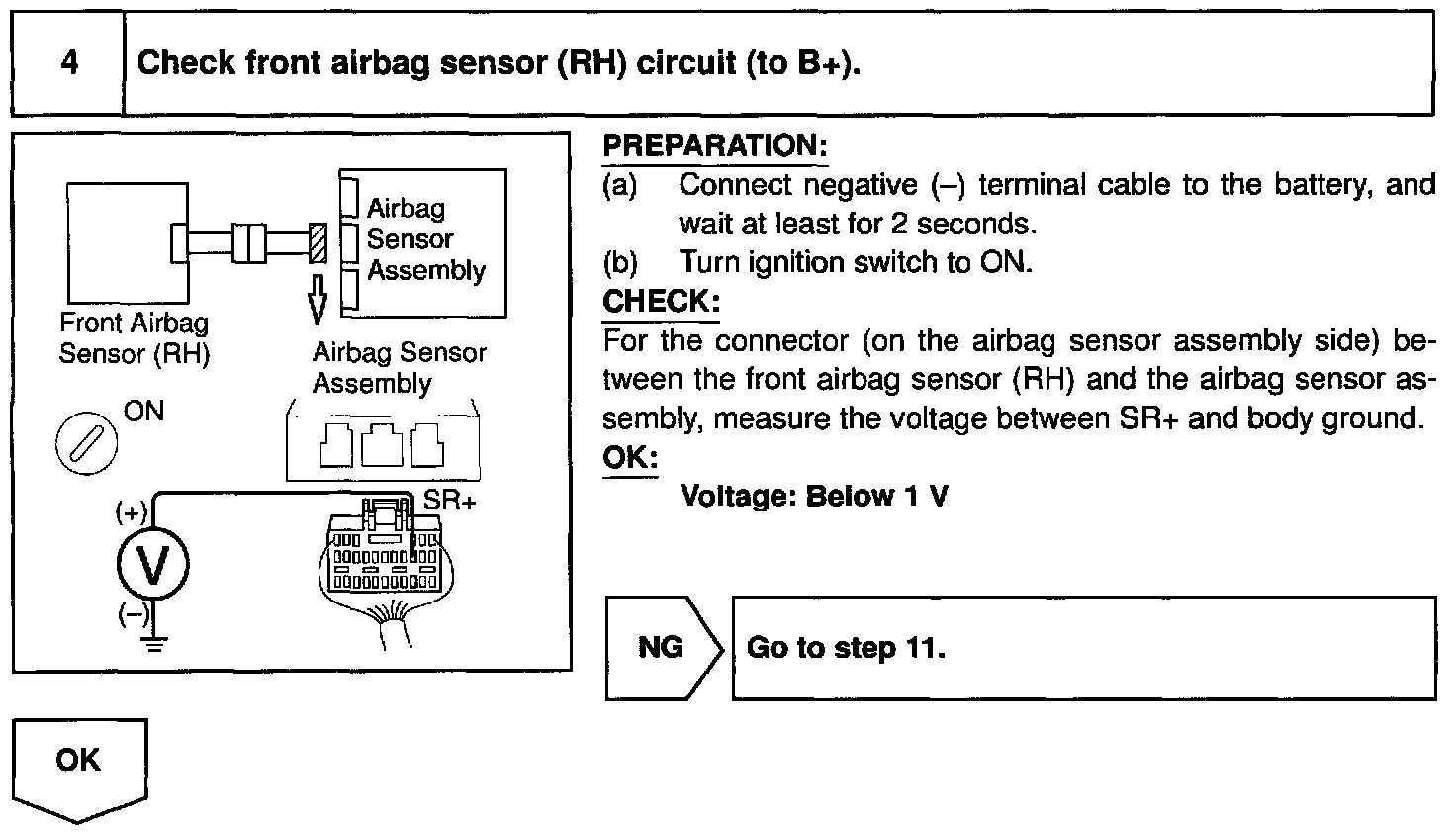

Step 4/Check front airbag sensor (RH) (to B+)

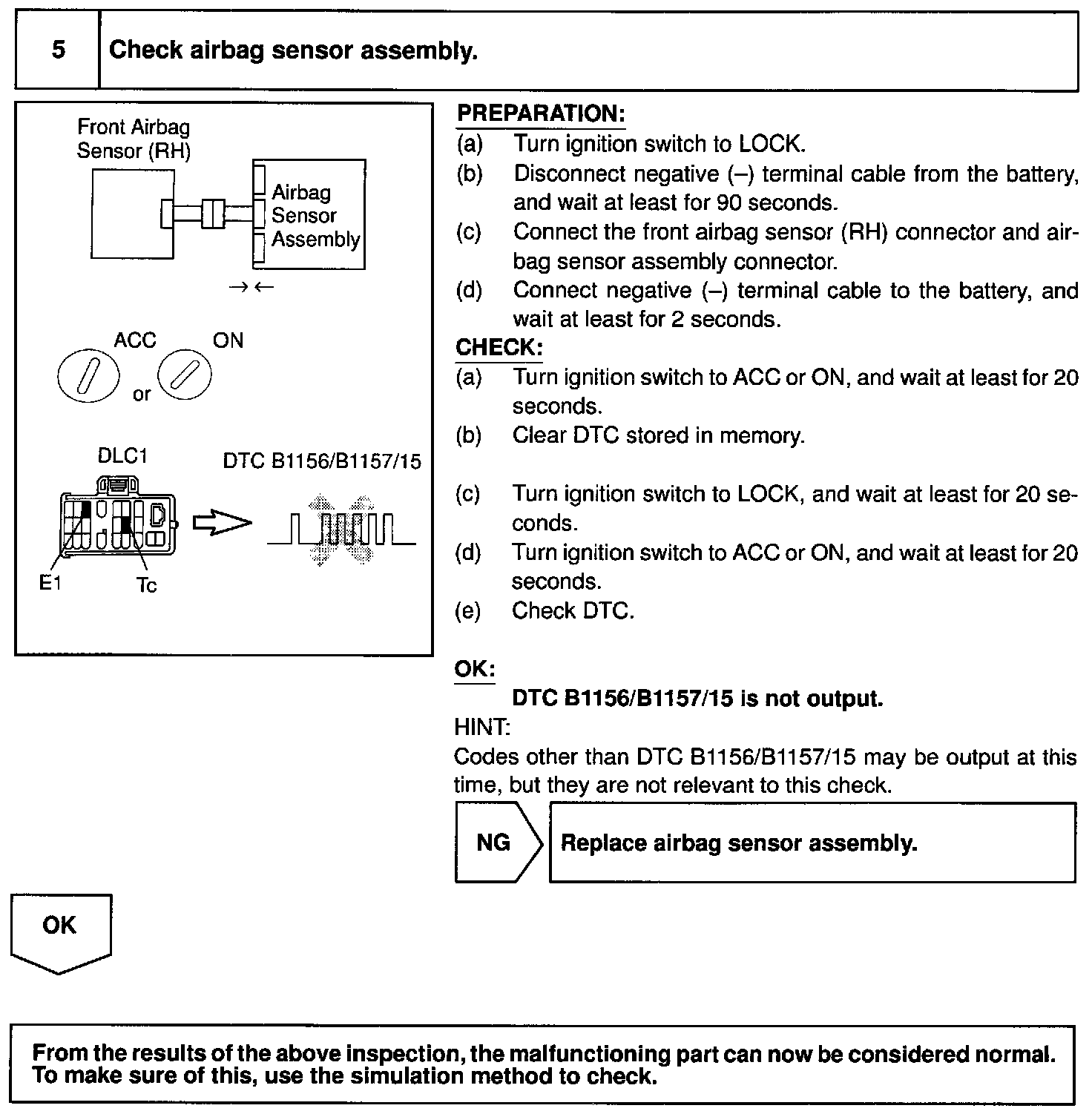

Step 5/Check airbag sensor assembly

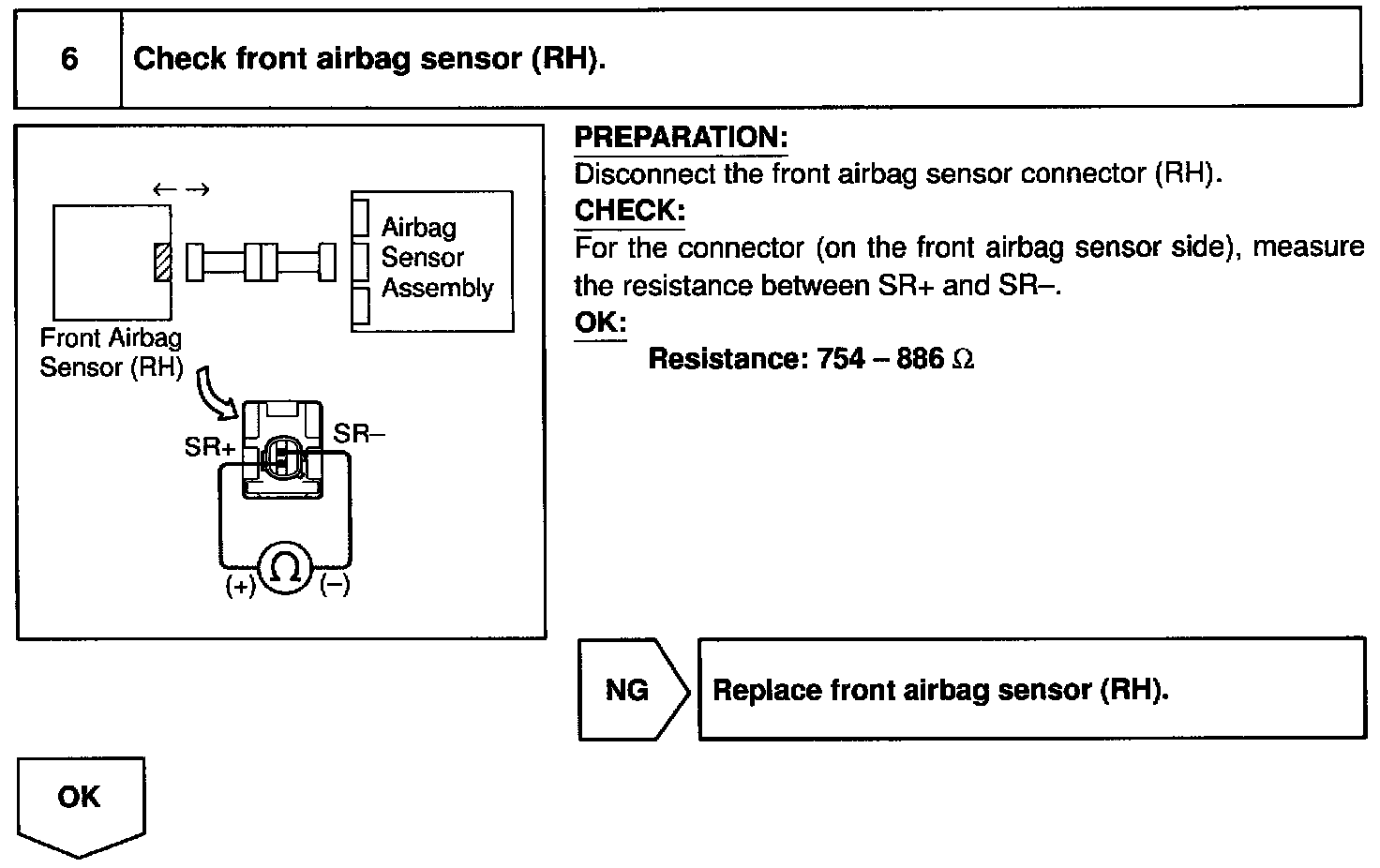

Step 6/Check airbag sensor (RH)




Step 7/Check relay harness

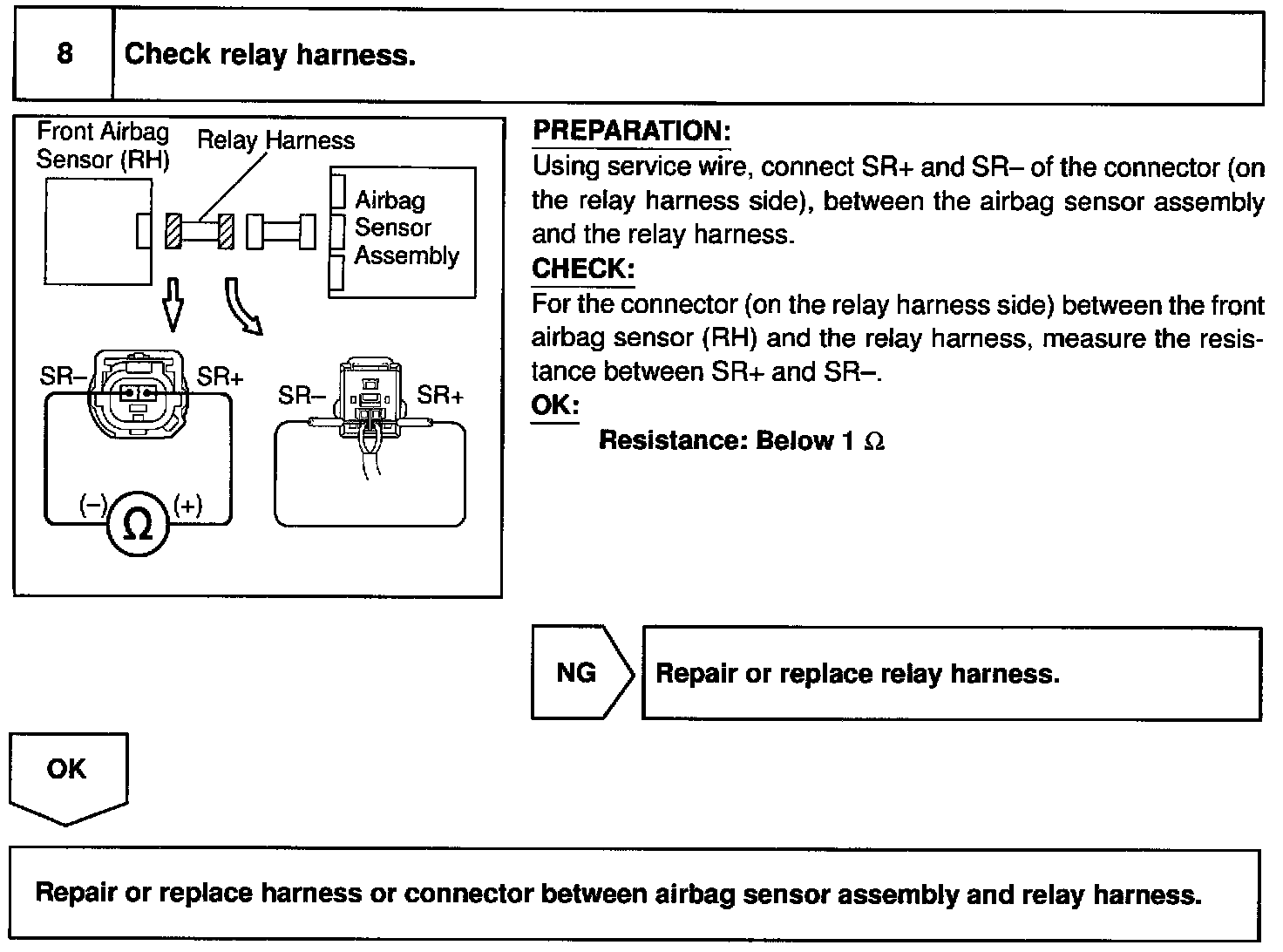

Step 8/Check relay harness




Step 9/Check wire harness (to ground)




Step 10/Check relay harness (to ground)

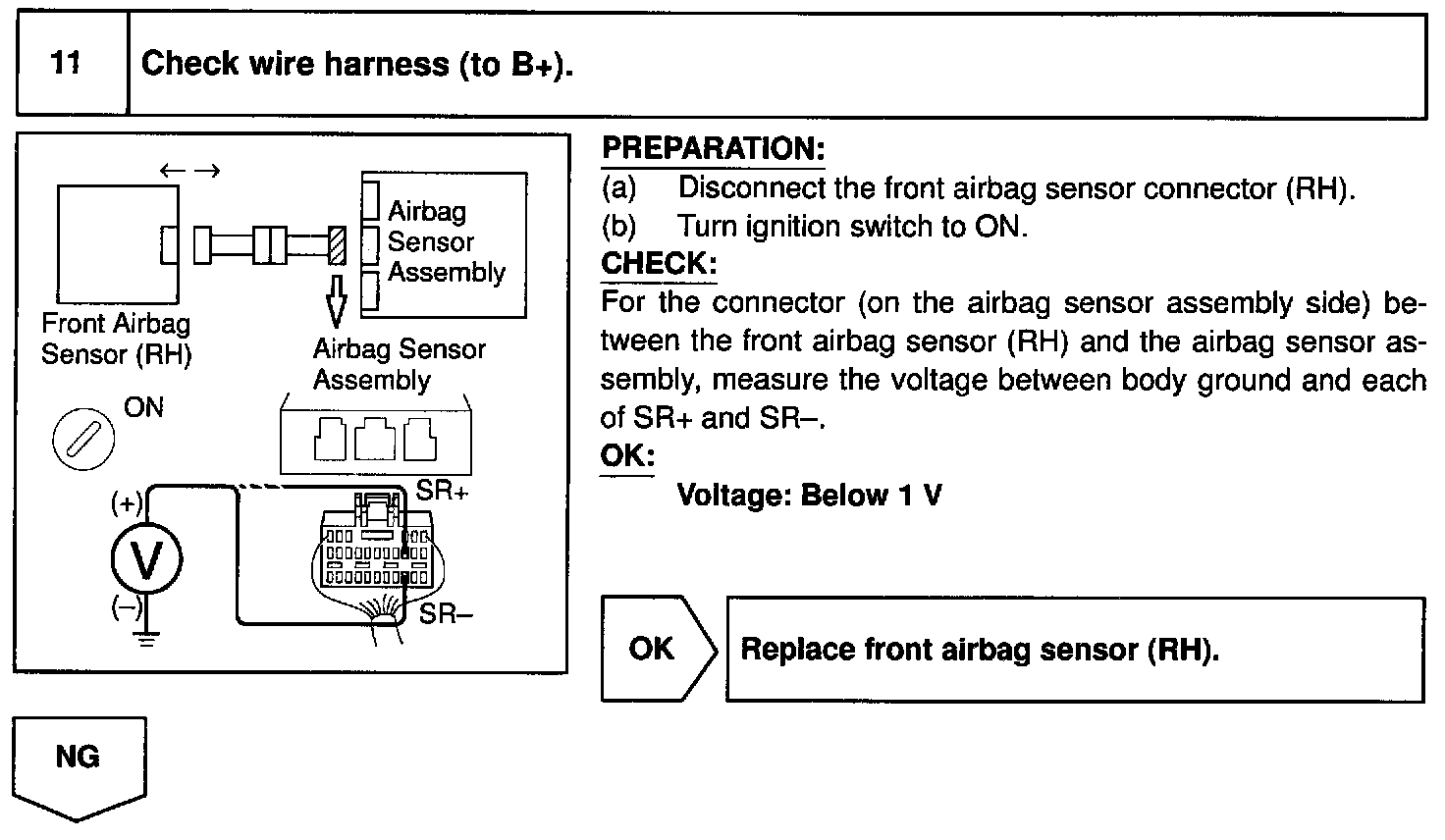

Step 11/Check wire harness (to B+)

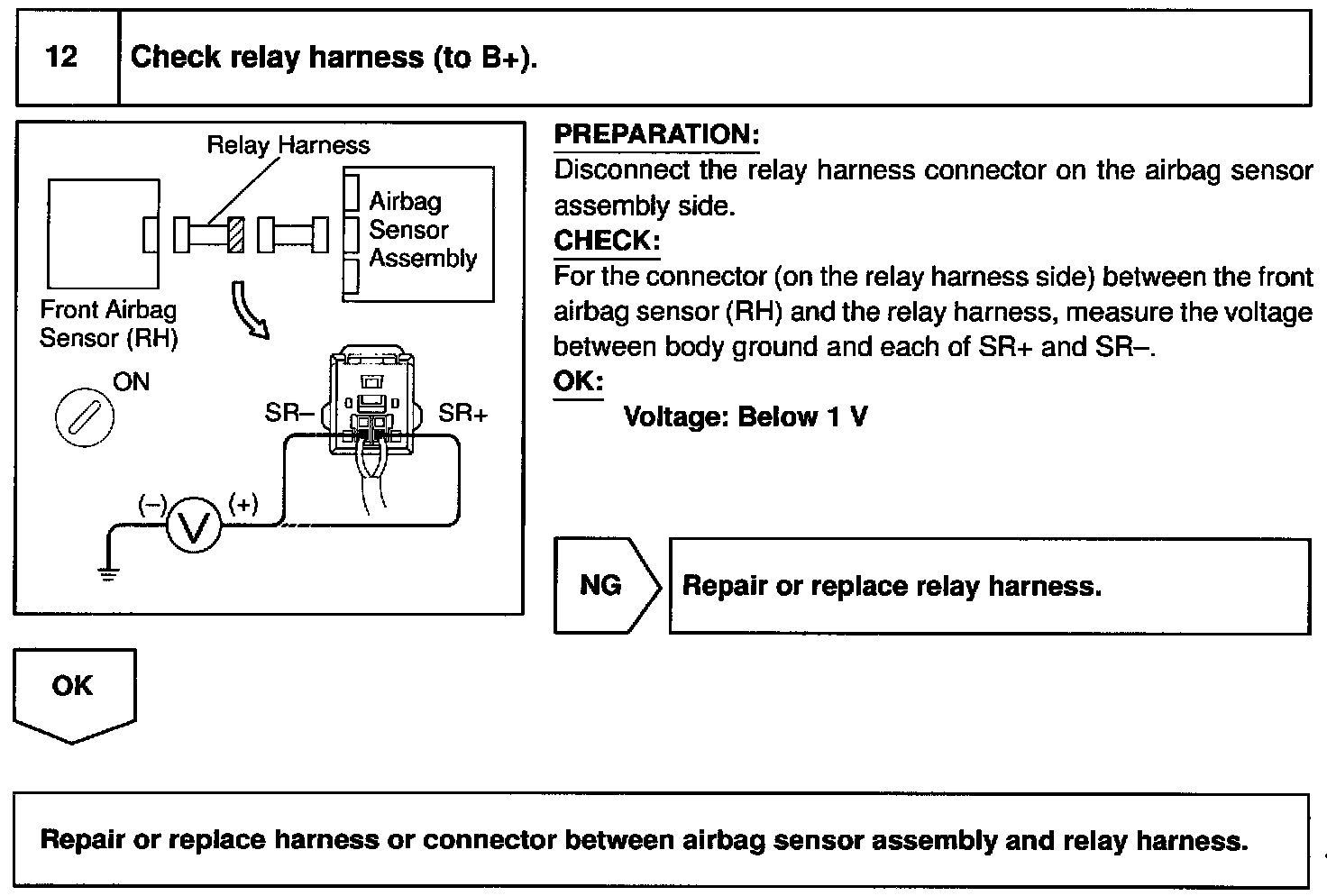

Step 12/Check relay harness (to B+)
