Cruise Control Diagnostic Connector: Testing and Inspection

CIRCUIT DESCRIPTION
This circuit sends a signal to the ECU that outputs the DTC.

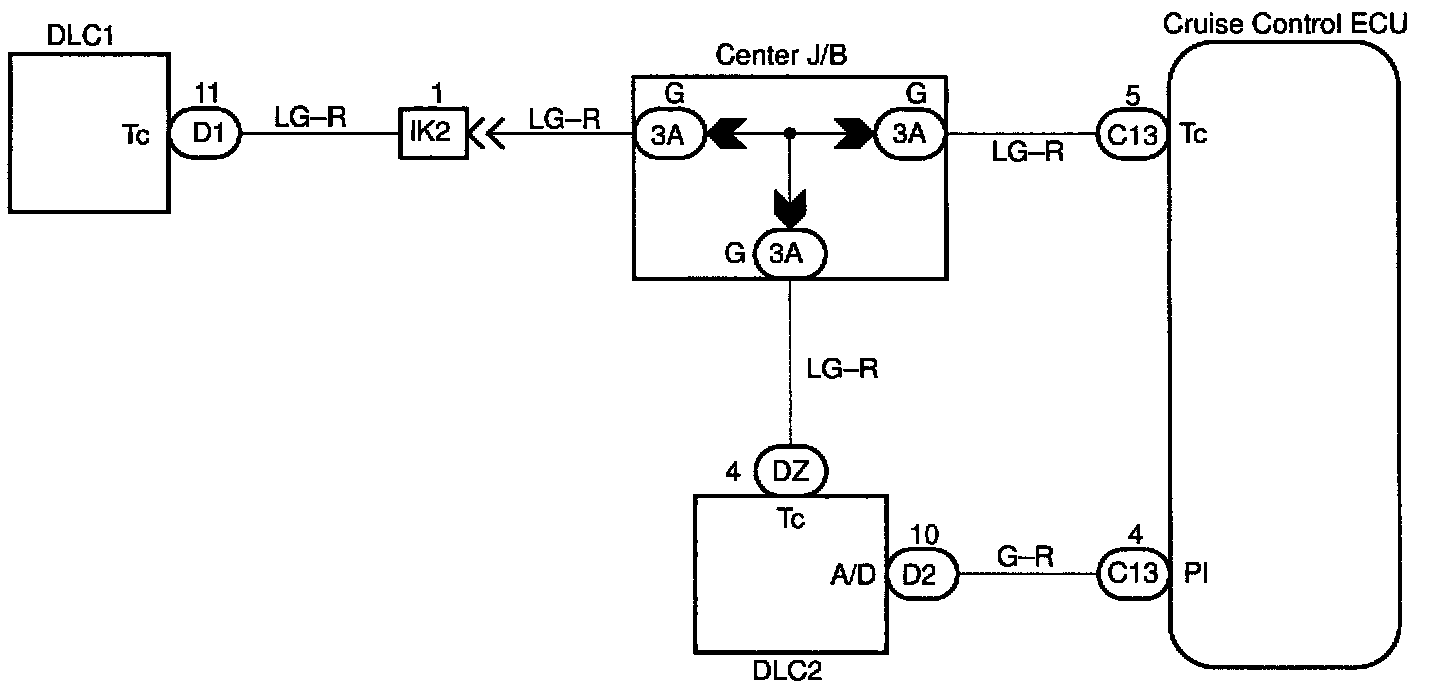

WIRING DIAGRAM

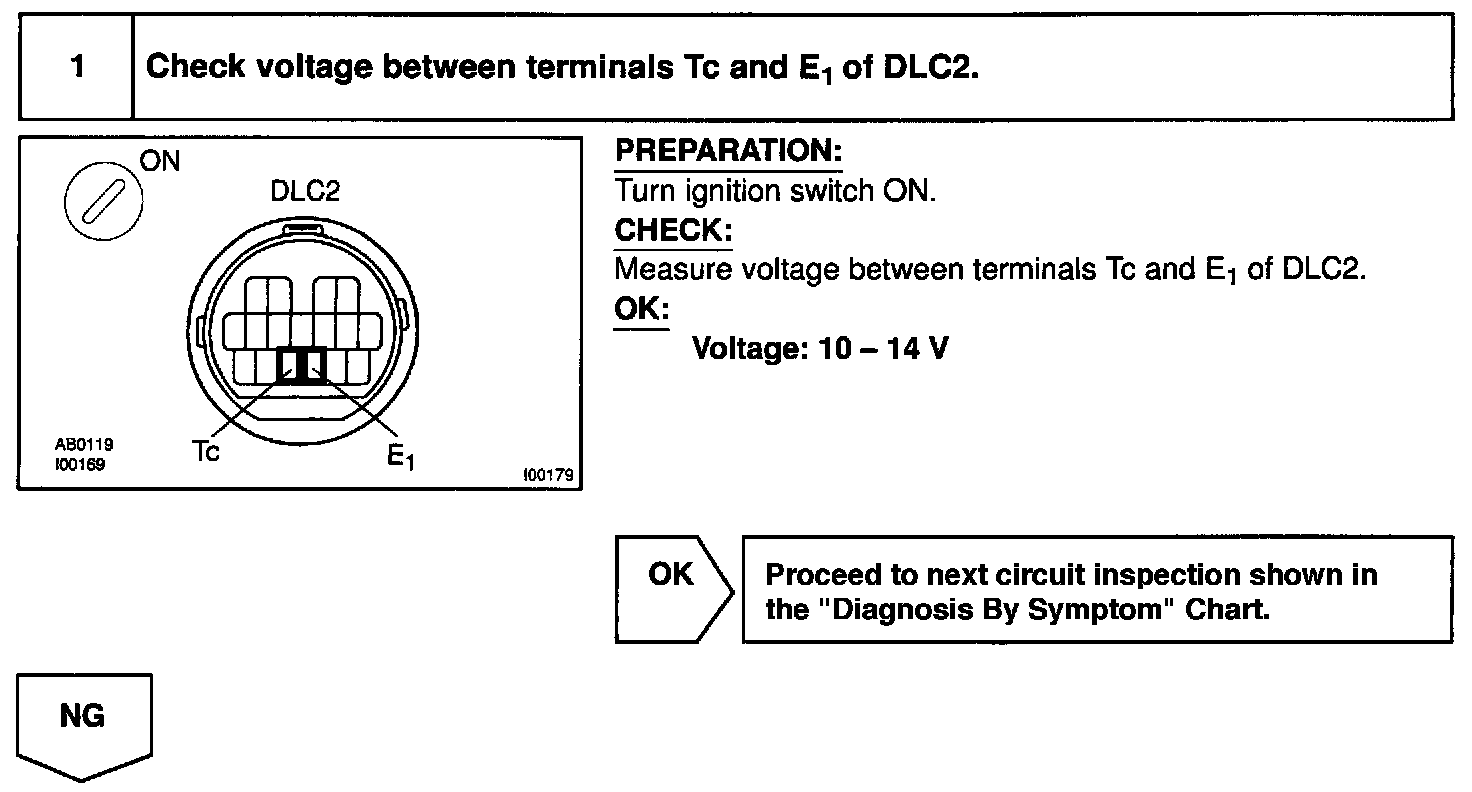

Step 1:

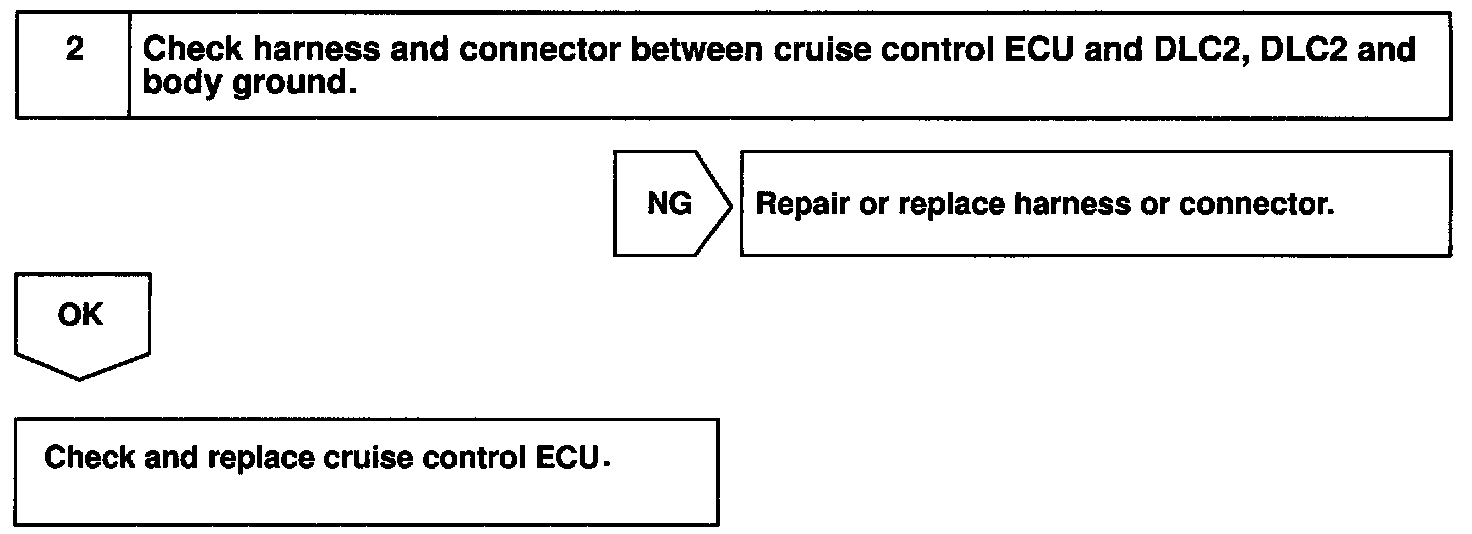

Step 2:

INSPECTION PROCEDURE
