Steering Gear

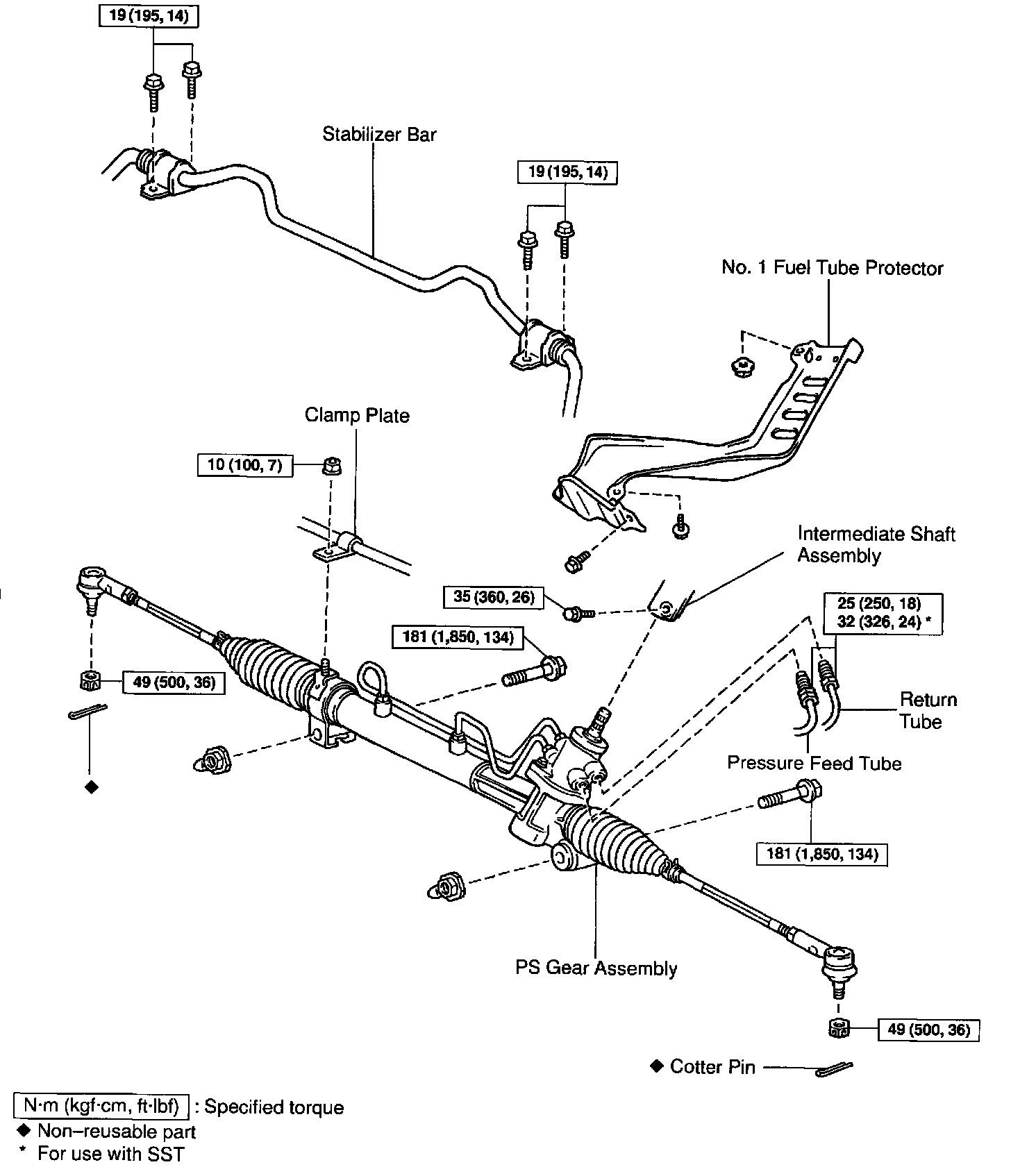

POWER STEERING GEAR ASSEMBLY AND RELATED COMPONENTS





RACK HOUSING, STEERING RACK AND RACK ENDS





CONTROL VALVE ASSEMBLY AND RELATED COMPONENTS
