Condenser HVAC: Service and Repair
REMOVAL1. DISCHARGE REFRIGERANT FROM REFRIGERATION SYSTEM
HINT: At the time of installation, please refer to the following item.
Evacuate air from refrigeration system.
Charge system with refrigerant and inspect for leakage of refrigerant.
Specified amount: 850 ± 50 g (29.98 ± 1.76 oz.)
2. REMOVE THESE PARTS:
a. Radiator and condenser fans
b. 2 radiator upper supports
c. Radiator grill

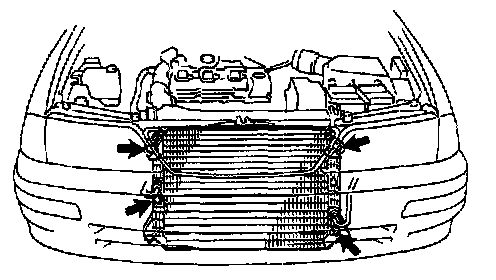

3. DISCONNECT DISCHARGE HOSE AND LIQUID TUBE
Remove the 2 bolts and disconnect the hose and tube.
Torque: 10 Nm (100 kgf.cm, 7 ft.lbf)
NOTE: Cap the open fittings immediately to keep moisture or din out of the system.
HINT: At the time of installation, please refer to the following item.
Lubricate 2 new O-rings with compressor oil and install them to the hose.

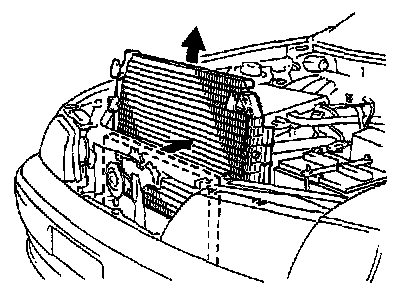

4. REMOVE CONDENSER
a. Remove the 2 condenser set bolts.
b. Push the radiator toward the engine.
c. Push the condenser toward the radiator and pull it upward.
HINT: At the time of installation, please refer to the following item.
If condenser is replaced, add compressor oil to the condenser
Add 40 cc (1.4 fl.oz.)
Compressor oil: ND-OIL 8 or equivalent
INSTALLATION
Installation is in the reverse order of removal.
