Receiver Dryer: Service and Repair
REMOVAL1. DISCHARGE REFRIGERANT FROM REFRIGERATION SYSTEM
HINT: At the time of installation, please refer to the following item.
Evacuate air from refrigeration system.
Charge system with refrigerant and inspect for leakage of refrigerant.
Specified amount: 850 ± 50 g (29.98 ± 1.76 oz.)

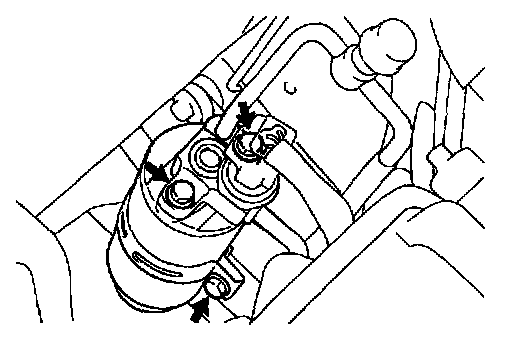

2. DISCONNECT LIQUID TUBES FROM RECEIVER
Remove the 2 bolts and disconnect the both tubes.
Torque: 5.4 Nm (55 kgf.cm, 48 in.lbf)
NOTE: Cap the open fittings immediately to keep moisture or dirt out of the system.
HINT: At the time of installation, please refer to the following item.
Lubricate 2 new O-rings with compressor oil and install them to the tubes.
3. REMOVE RECEIVER FROM RECEIVER HOLDER
Remove the holder bolt and pull the receiver upward.
HINT: At the time of installation, please refer to the following item.
If receiver is replaced, add compressor oil to receiver.
Add 20 cc (0.7 fl.oz.)
Compressor oil: NO-OIL 8 or equivalent
INSTALLATION
Installation is in the reverse order of removal.
