Traction Control Indicator Lamp: Description and Operation

ABS




ABS with TRAC

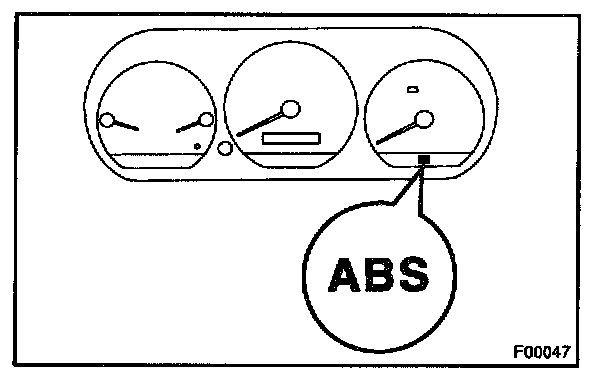

ABS Light
If the ECU detects trouble, it lights the ABS warning light while at the same time prohibiting ABS control. At this time, the ECU records a DTC in memory.
After removing the short pin of the DLC1, connect terminals Tc and E1 of the DLC1 or DLC2 to make the ABS warning light blink and output the DTC.

TRAC Indicator Light
This is the TRAC control main switch. When the TRAC cut switch is pushed on, TRAC control goes off and the TRAC OFF indicator lights up. This indicator blinks for warnings when the trouble occurs and for displaying DTC.

SLIP Indicator
The SLIP indicator blinks during TRAC operation.
