Windshield Washer Spray Nozzle: Testing and Inspection
INSPECT FRONT WASHER NOZZLE

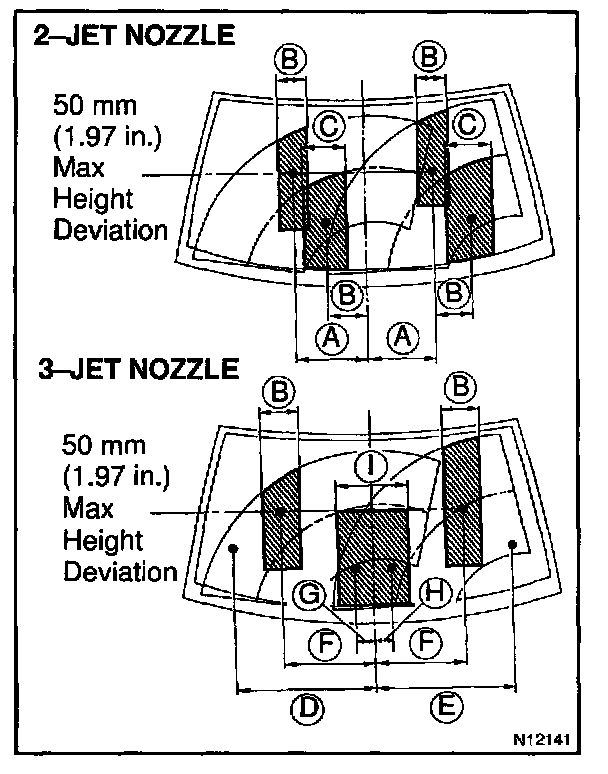

While operating the washer, check that both the point where the washer fluid from the upper nozzles hits the windshield, and the upsurge area are within the range indicated by the hatched line.
A : 275 mm (10.83 in.)
B : 150 mm (5.91 in.)
C : 240 mm (9.45 in.)
D : 557 mm (21.93 in.)
E : 550 mm (21.65 in.)
F : 281 mm (11.06 in.)
G : 67 mm (2.64 in.)
H : 63 mm (2.48 in.)
I : 350 mm (13.78 in.)
