DTC B0111 Open In Side Squib (RH) Circuit

CIRCUIT DESCRIPTION




The side squib (RH) circuit consists of the airbag sensor assembly and side airbag assembly (RH).
It causes the SRS to deploy when the SRS deployment conditions are satisfied.
For details of the function of each component, See component DESCRIPTION and OPERATION.
DTC B0110/43 is recorded when a short is detected in the side squib (RH) circuit.

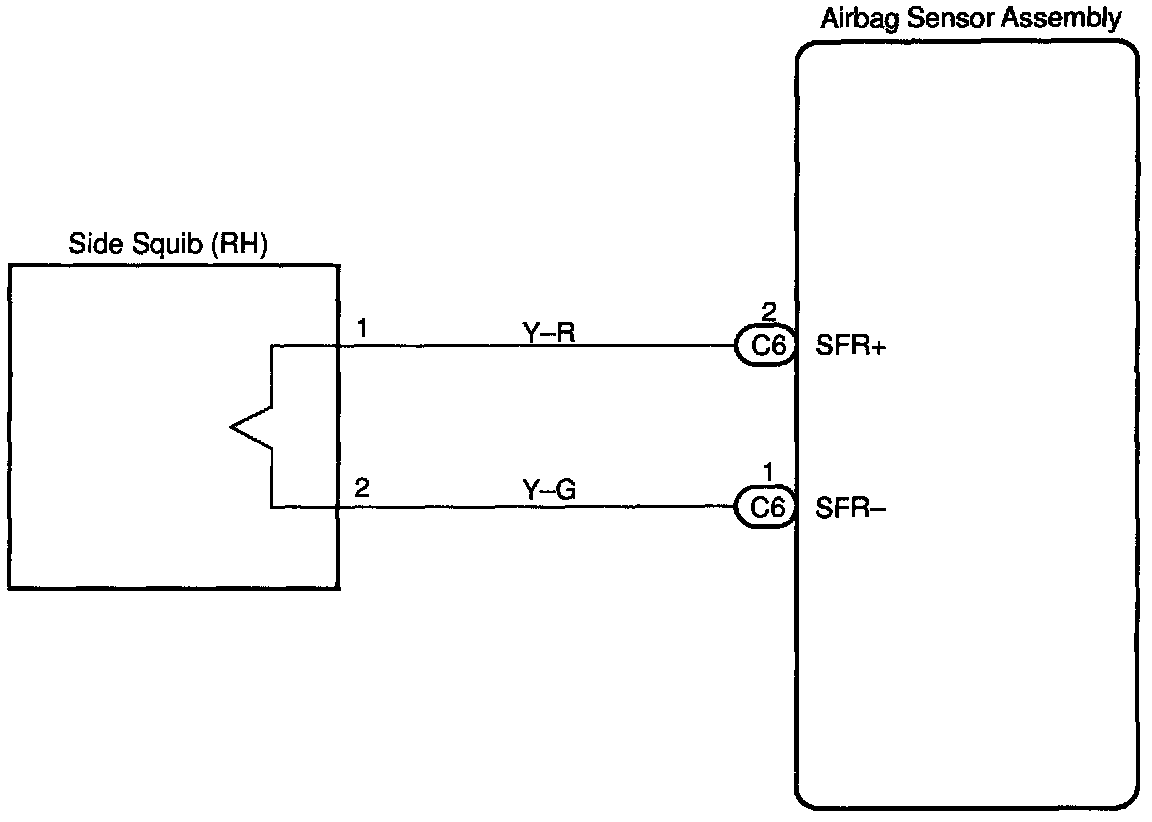

WIRING DIAGRAM

INSPECTION PROCEDURE

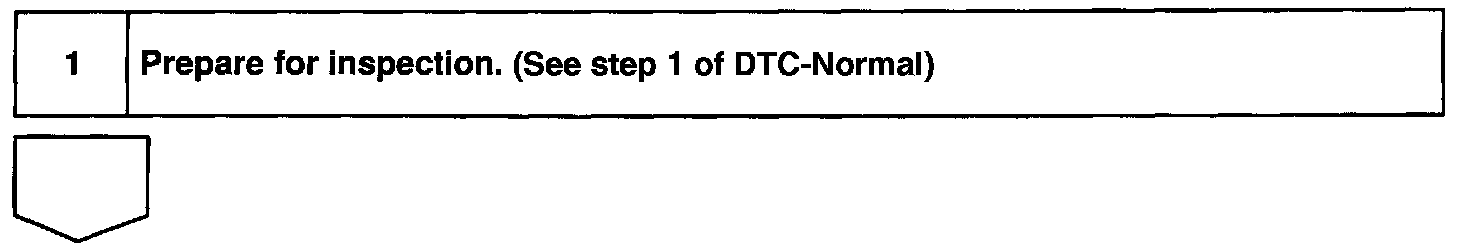

Step 1/Prepare for Inspection




Step 2/Check Side Squib (RH) circuit




Step 3/Check airbag sensor assembly




Step 4/Check Side squib (RH)
