B1159

DTC B1159 Front Airbag Sensor (LH) Malfunction

CIRCUIT DESCRIPTION




The front airbag sensor (LH) circuit consists of the airbag sensor assembly and front airbag sensor (LH).
For details of the function of each component, See component DESCRIPTION and OPERATION.

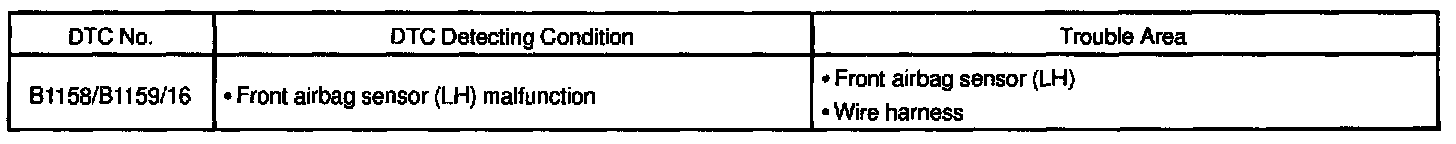

DTC B1159/16 is recorded when malfunction is detected in the front airbag sensor (LH) circuit.

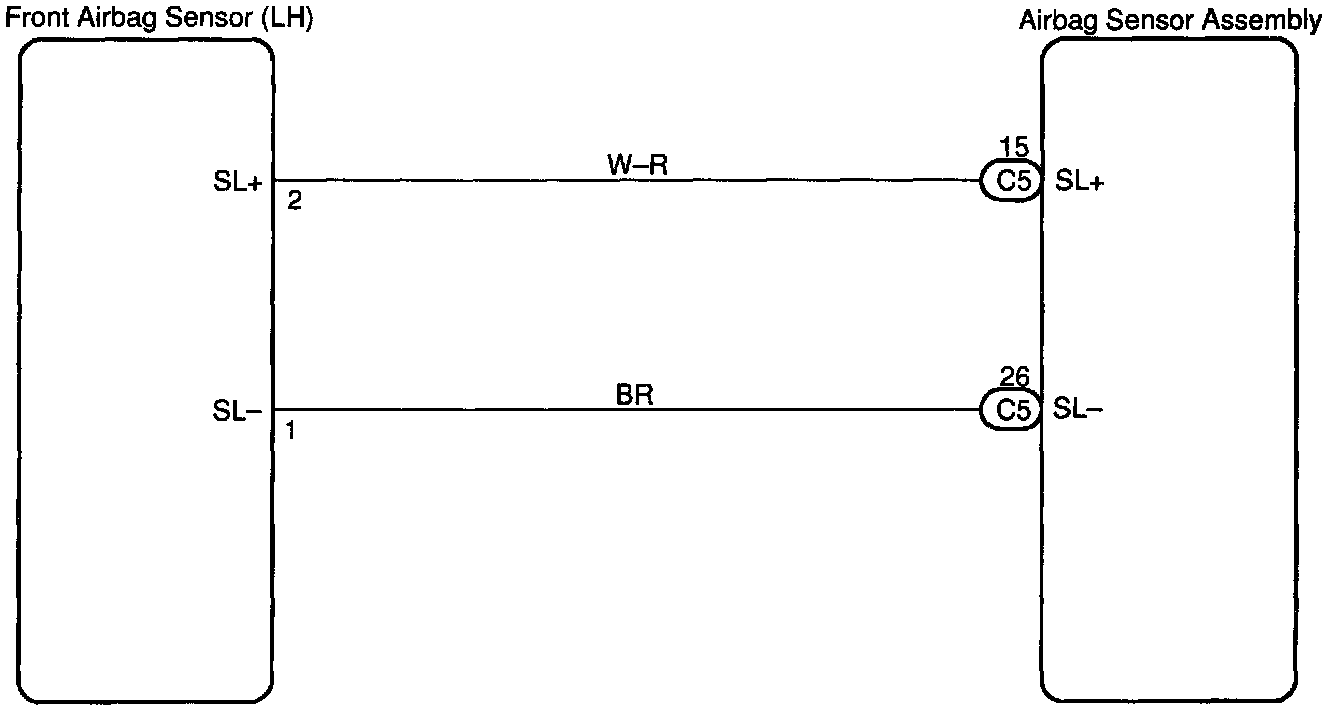

WIRING DIAGRAM

INSPECTION PROCEDURE

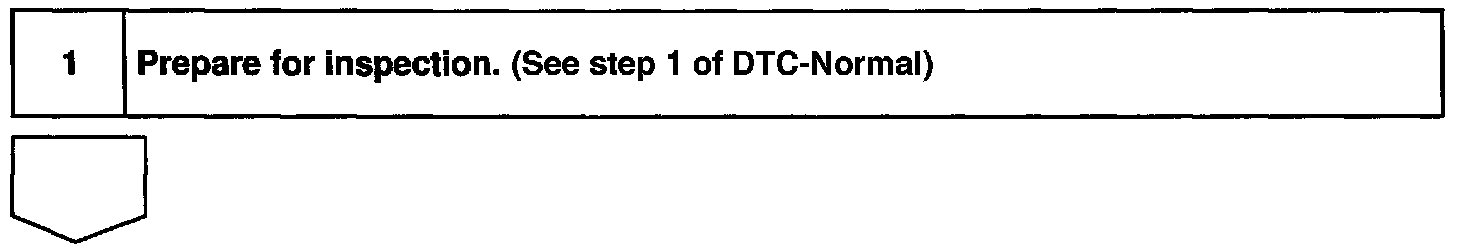

Step 1/Prepare for inspection

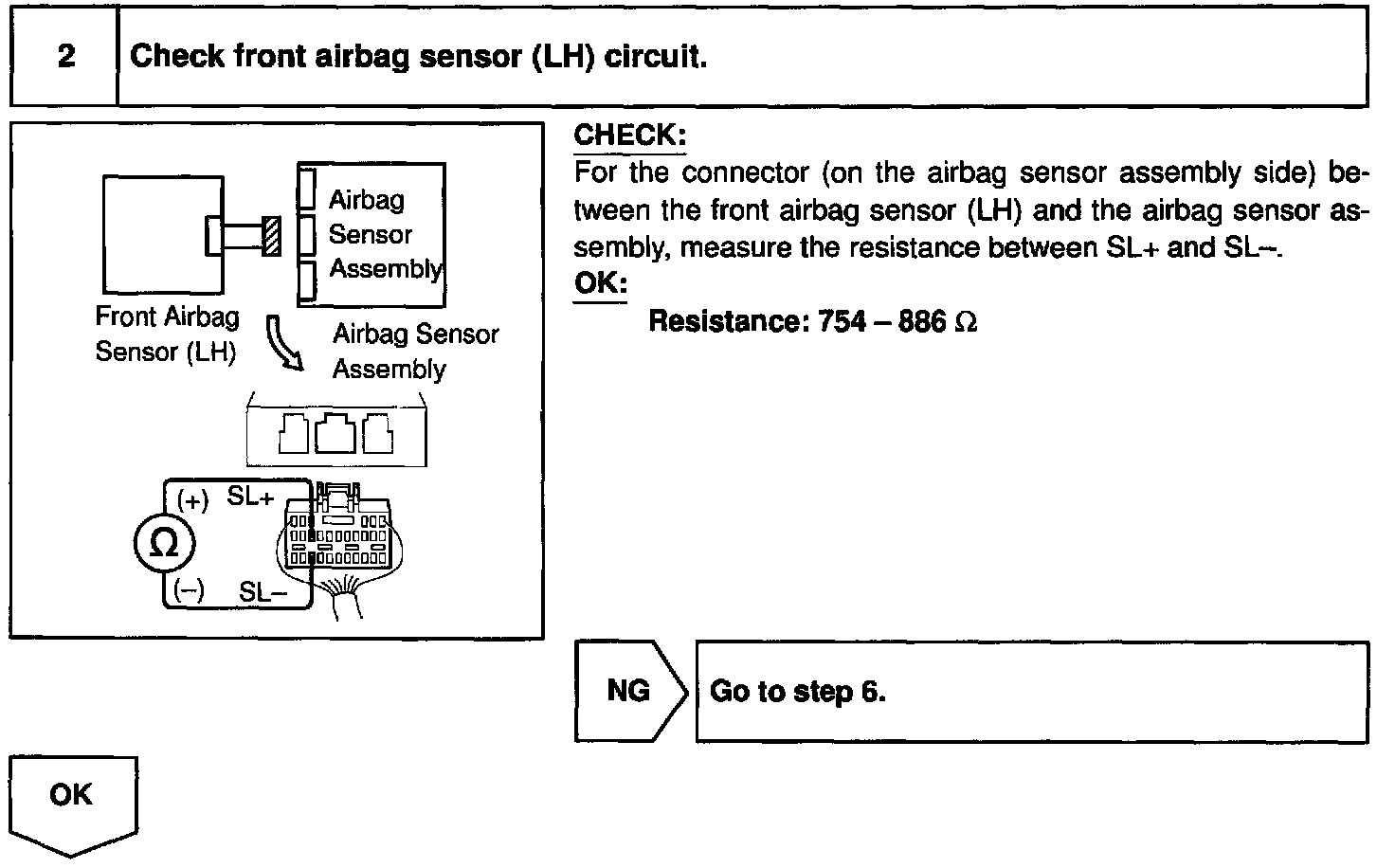

Step 2/Check front airbag sensor (LH) circuit

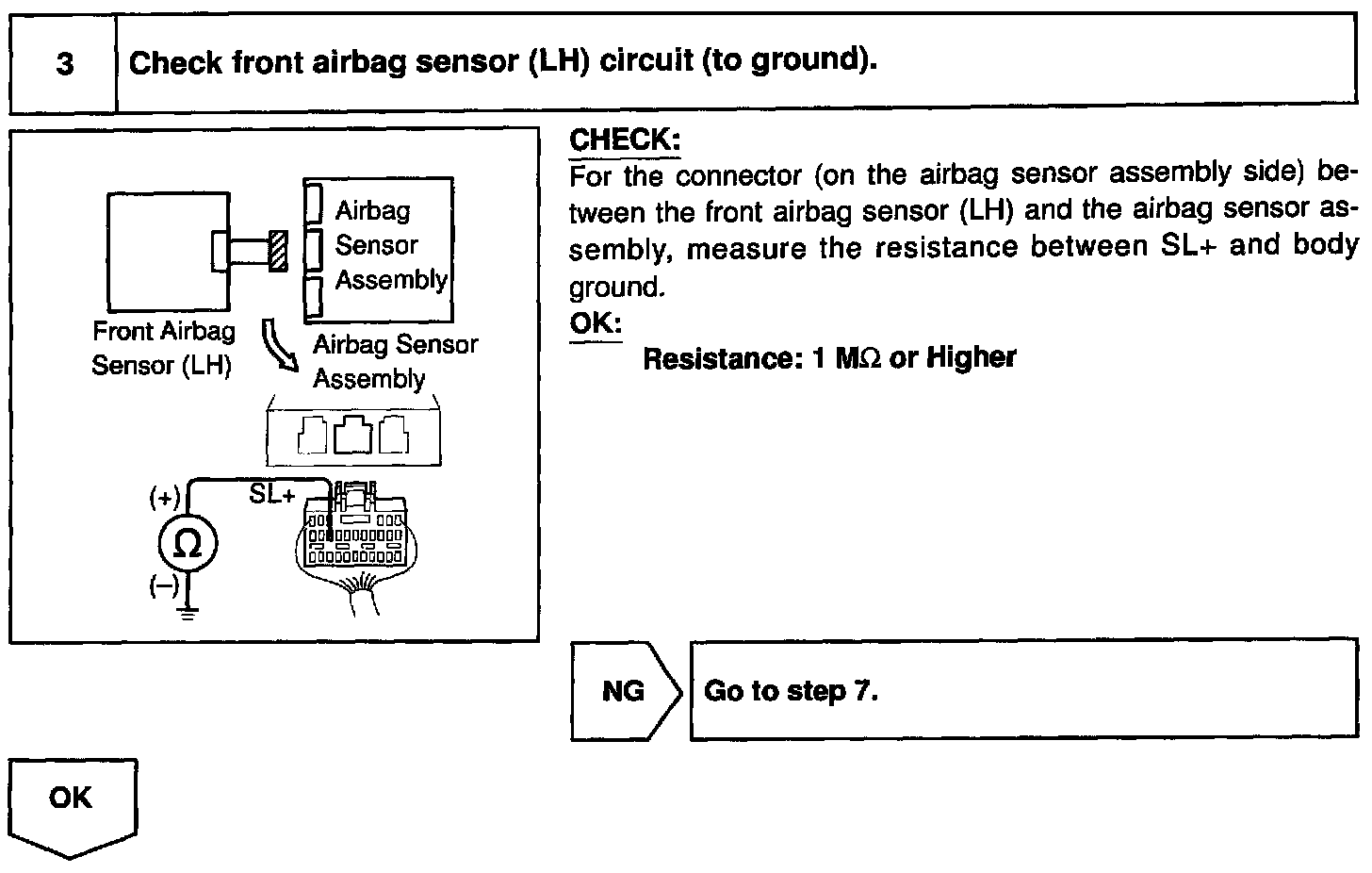

Step 3/Check front airbag sensor (LH) circuit (to ground)




Step 4/Check front airbag sensor (LH) circuit (to B+)

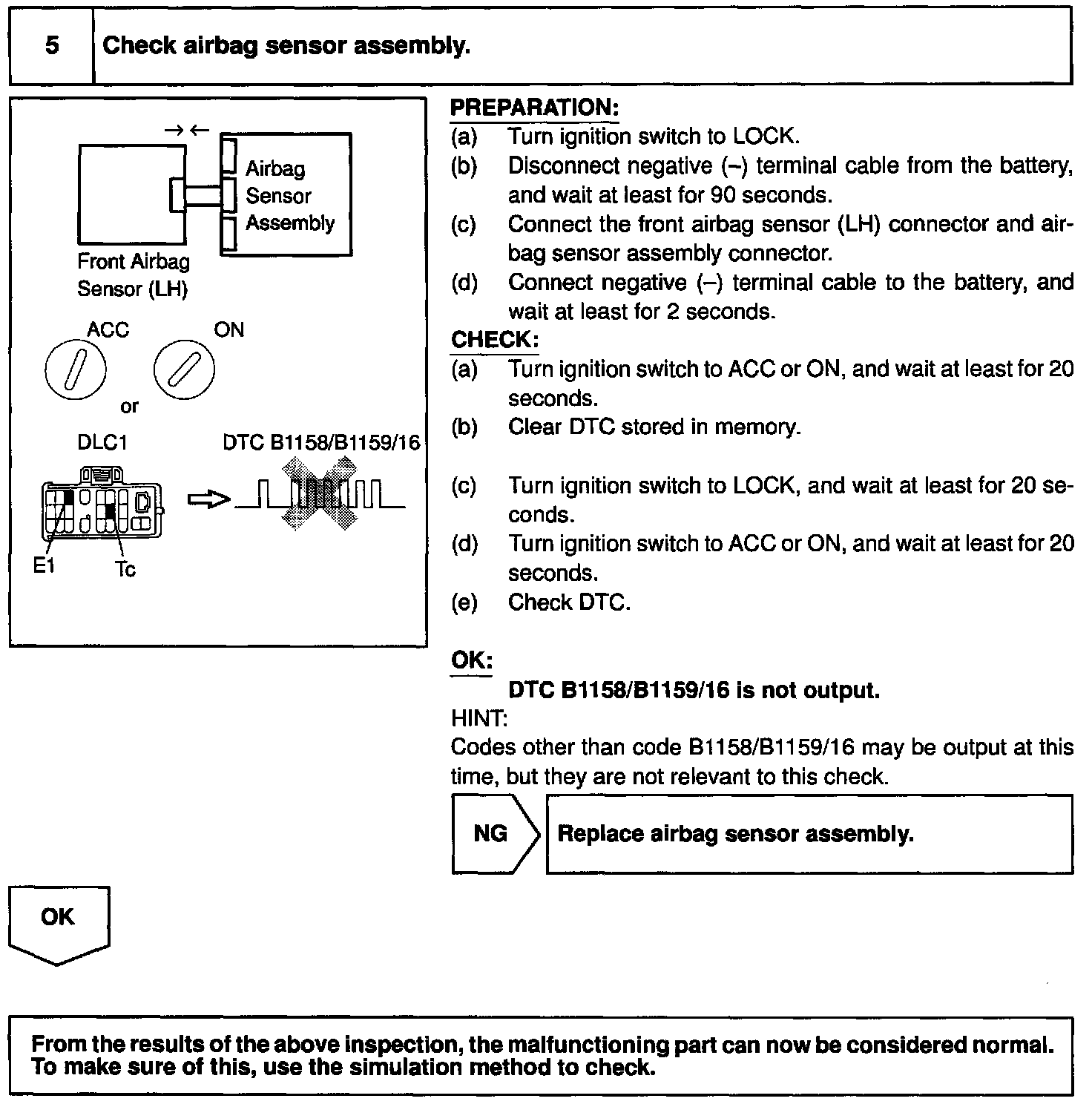

Step 5/Check airbag sensor assembly




Step 6/Check front airbag sensor (LH)

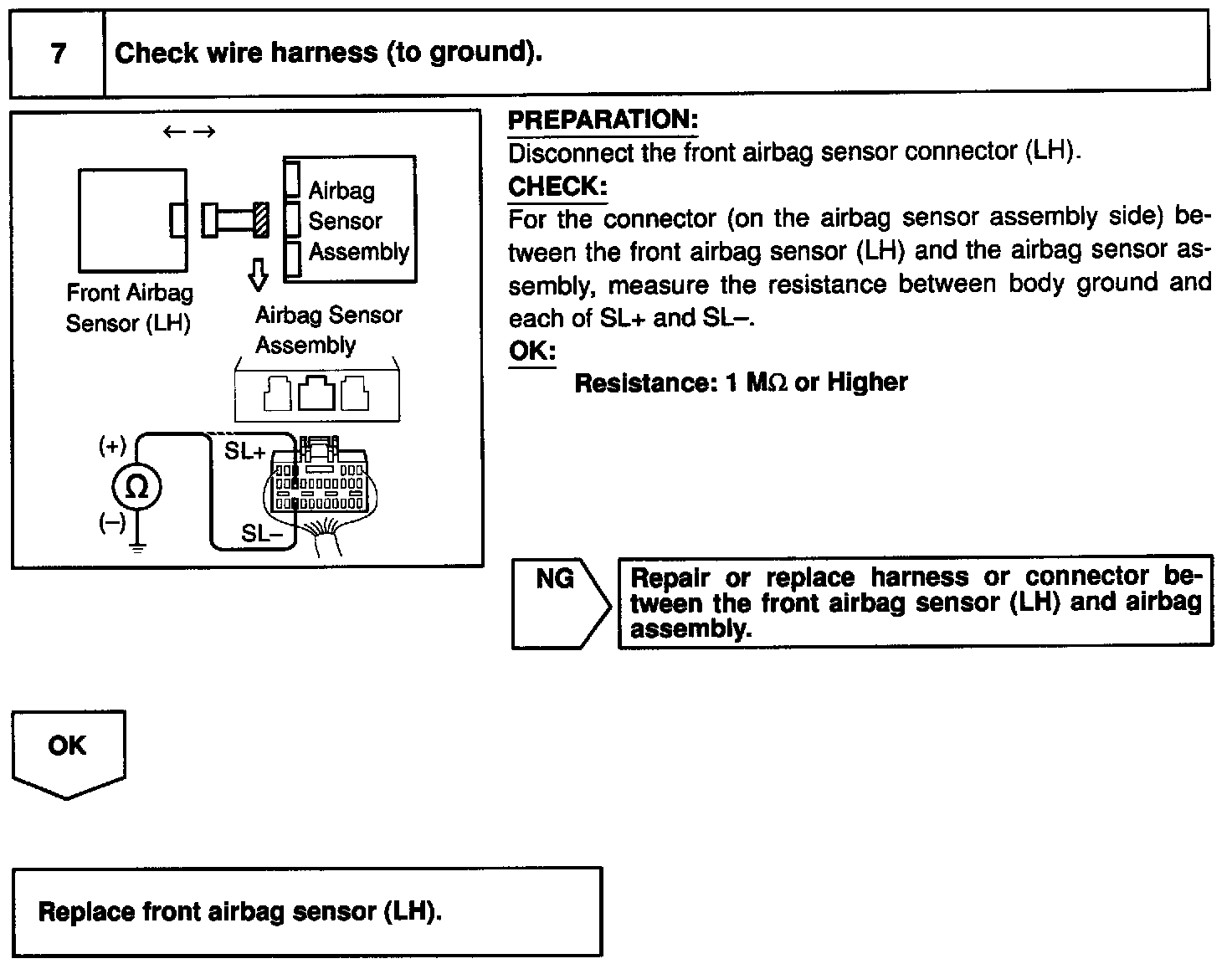

Step 7/Check wire harness (to ground)




Step 8/Check wire harness (to B+)
