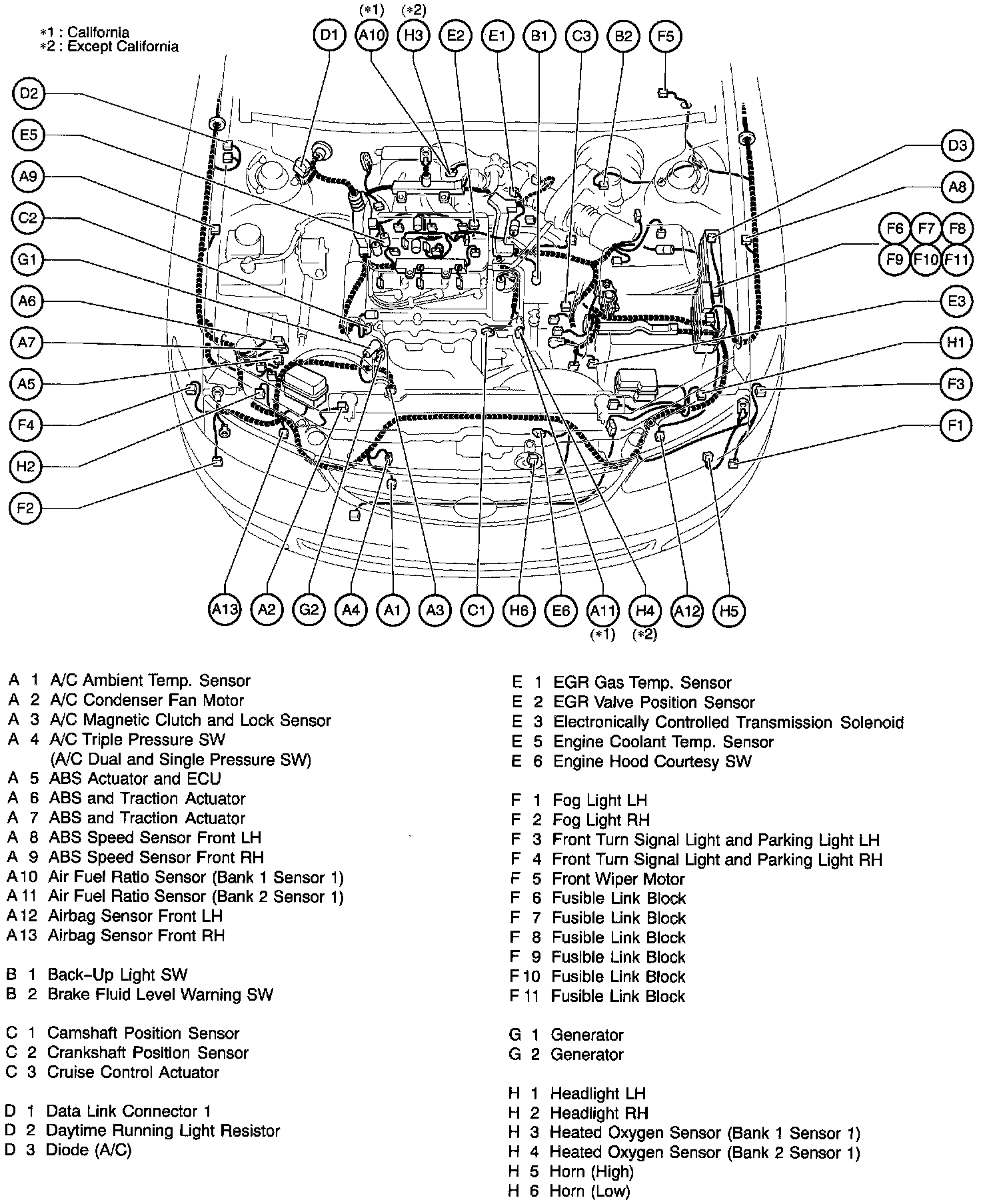

Engine Compartment

A 1 A/C Ambient Temp. Sensor
A 2 A/C Condenser Fan Motor
A 3 A/C Magnetic Clutch and Lock Sensor
A 4 A/C Triple Pressure SW (A/C Dual and Single Pressure SW)
A 5 ABS Actuator and ECU
A 6 ABS and Traction Actuator
A 7 ABS and Traction Actuator
A 8 ABS Speed Sensor Front LH
A 9 ABS Speed Sensor Front RH
A10 Air Fuel Ratio Sensor (Bank 1 Sensor 1)
A11 Air Fuel Ratio Sensor (Bank 2 Sensor 1)
A12 Airbag Sensor Front LH
A13 Airbag Sensor Front RH

B 1 Back-Up Light SW
B 2 Brake Fluid Level Warning SW

C 1 Camshaft Position Sensor
C 2 Crankshaft Position Sonsor
C 3 Cruise Control Actuator

D 1 Data Link Connector 1
D 2 Daytime Running Light Resistor
D 3 Diode (A/C)

E 1 EGR Gas Temp. Sensor
E 2 EGR Valve Position Sensor
E 3 Electronically Controlled Transmission Solenoid
E 5 Engine Coolant Temp. Sensor
E 6 Engine Hood Courtesy SW

F 1 Fog Light LH
F 2 Fog Light Rh
F 3 Front Turn Signal Light and Parking Light LH
F 4 Front Turn Signal Light and Parking Light RH
F 5 Front Wiper Motor
F 6 Fusible Link Block
F 7 Fusible Link Block
F 8 Fusible Link Block
F 9 Fusible Link Block
F10 Fusible Link Block
F11 Fusible Link Block

G 1 Generator
G 2 Generator

H 1 Headlight LH
H 2 Headlight RH
H 3 Heated Oxygen Sensor (Bank 1 Sensor 1)
H 4 Heated Oxygen Sensor (Bank 2 Sensor 1)
H 5 Horn (High)
H 6 Horn (Low)

I 1 Idle Air Control Valve
I 2 Igniter
I 5 Ignition Coil No.1
I 6 Ignition Coil No.2
I 7 Ignition Coil No.3
I 8 Injector No.1
I 9 Injector No.2
I10 Injector No.3
I11 Injector No.4
I12 Injector No.5
I13 Injector No.6

K 1 Knock Sensor 1
K 2 Knock Sensor 2

M 2 Mass Air Flow Meter

N 1 Noise Filter (Ignition)

O 1 Oil Pressure SW

P 1 Park/Neutral Position SW
P 2 Power Steering Oil Pressure SW

R 1 Radiator Fan Motor

S 1 Starter
S 2 Starter

T 1 Theft Deterrent Horn
T 2 Throttle Position Sensor

V 1 Vehicle Speed Sensor (Combination Meter)
V 2 Vehicle Speed Sensor (Electronically Controlled Transmission)
V 3 VSV (EGR)
V 4 VSV (EVAP)
V 5 VSV (Intake Air Control)

W 1 Washer Level Warning SW
W 2 Washer Motor
W 3 Water Temp. Sender
W 4 Water Temp. SW No.1
W 5 Water Temp. SW No.2
