Condenser Fan Motor Relay: Testing and Inspection

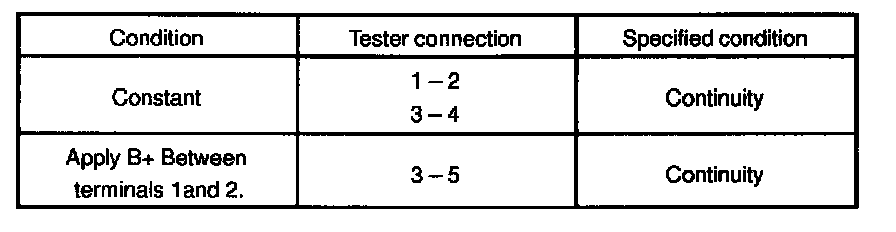

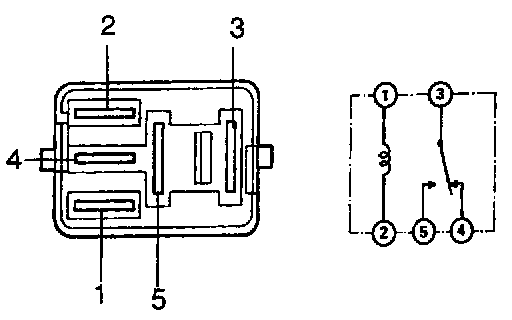

INSPECT NO.2 COOLING FAN RELAY (Marking: FAN No.2) CONTINUITY
If continuity is not as specified, replace the relay.

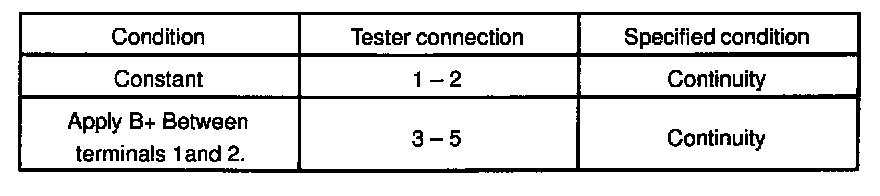

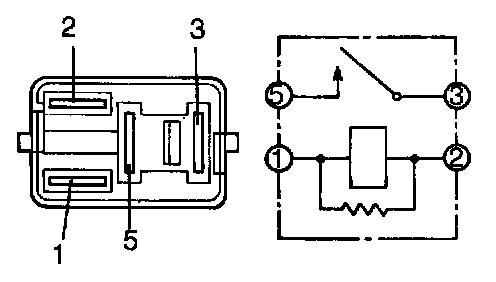

INSPECT NO.3 COOLING FAN RELAY (Marking: FAN No.3) CONTINUITY
If continuity is not as specified, replace the relay.
