Receiver Dryer: Service and Repair

REMOVAL

1. DISCHARGE REFRIGERANT FROM REFRIGERATION SYSTEM




2. DISCONNECT 2 LIQUID TUBES FROM RECEIVER
Remove the 2 bolts and both tubes.

NOTE: Cap the open fittings immediately to keep moisture or dirt out of the system.

3. REMOVE RECEIVER




a. Remove the 2 bolts and receiver with holder.




b. Remove the bolt and receiver from the holder.

INSTALLATION

1. INSTALL RECEIVER

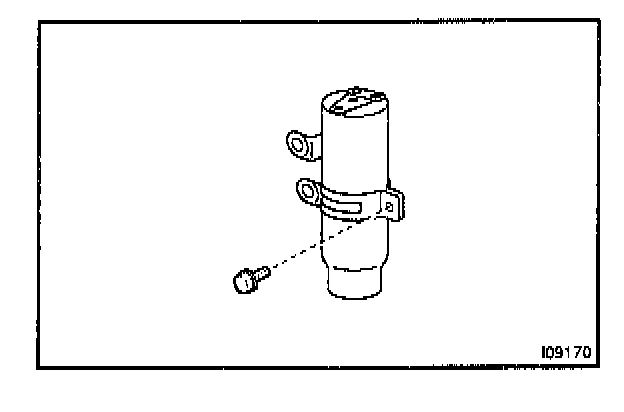

a. Install the receiver to the holder with bolt.

HINT: If receiver is replaced, add compressor oil to receiver.

Add 20 cc (0.71 fl.oz.)
Compressor oil: ND-OIL 8 or equivalent

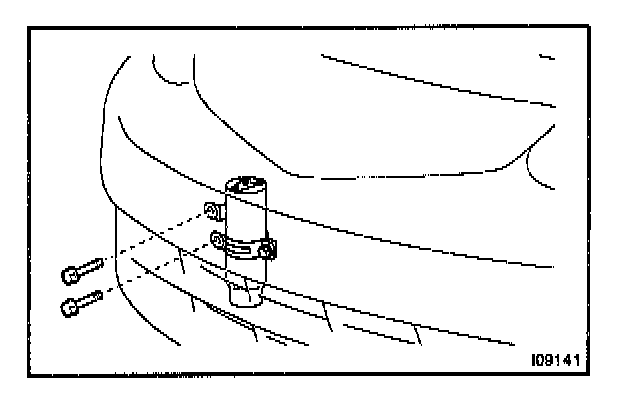

b. Install the receiver to condenser with 2 bolts.

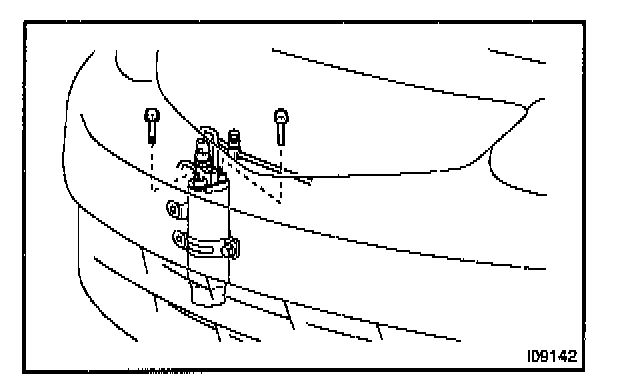

2. CONNECT 2 LIQUID TUBES
a. Lubricate 2 new O-rings with compressor oil and install them to the tubes.
Compressor oil: ND-OIL 8 or equivalent
b. Connect the both tubes with 2 bolts.
Torque: 5.4 Nm (55 kgf.cm, 48 in.lbf)

3. CHARGE SYSTEM WITH REFRIGERANT
a. Evacuate air from refrigeration system.
b. Charge system with refrigerant.
Specified amount: 800 ± 50 g (28.22 ± 1.76 oz.)

4. INSPECT FOR LEAKAGE OF REFRIGERANT
Using a gas leak detector, check for leakage of refrigerant.
If there is leakage, check the tightening torque at joints.
