Solar Sensor: Service and Repair

REMOVAL




REMOVE SOLAR SENSOR

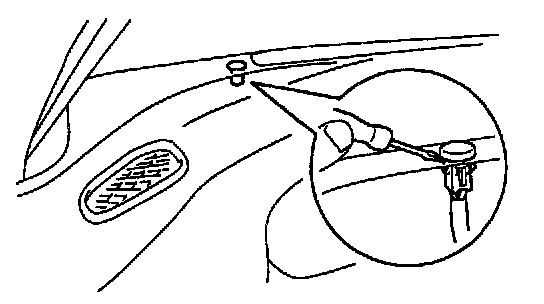

Using a screwdriver, pull out the sensor, the disconnect the connector.

HINT: Tape the screwdriver tip before use.

INSTALLATION

INSTALL SOLAR SENSOR
a. Connect the connector.
b. Insert the sensor to the instrument panel.
