A/C - Heater Control Assembly Instructions
BULLETIN NUMBER:EL007-00
DATE:
April 14, 2000
TITLE:
HEATER CONTROL ASSEMBLY INSTRUCTIONS
MODELS:
'97 - '99 Camry
INTRODUCTION
The attached instructions have been developed to supplement the Repair Manual to assure correct cable routing of the heater control assembly during a service repair.
NOTE:
For maximum heater performance the coolant ratio should be 50 to 60 percent.
APPLICABLE VEHICLES:
1997 - 1999 model year Camry

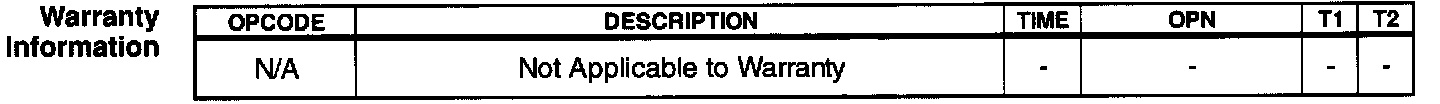

WARRANTY INFORMATION
INSTALLATION PROCEDURE:

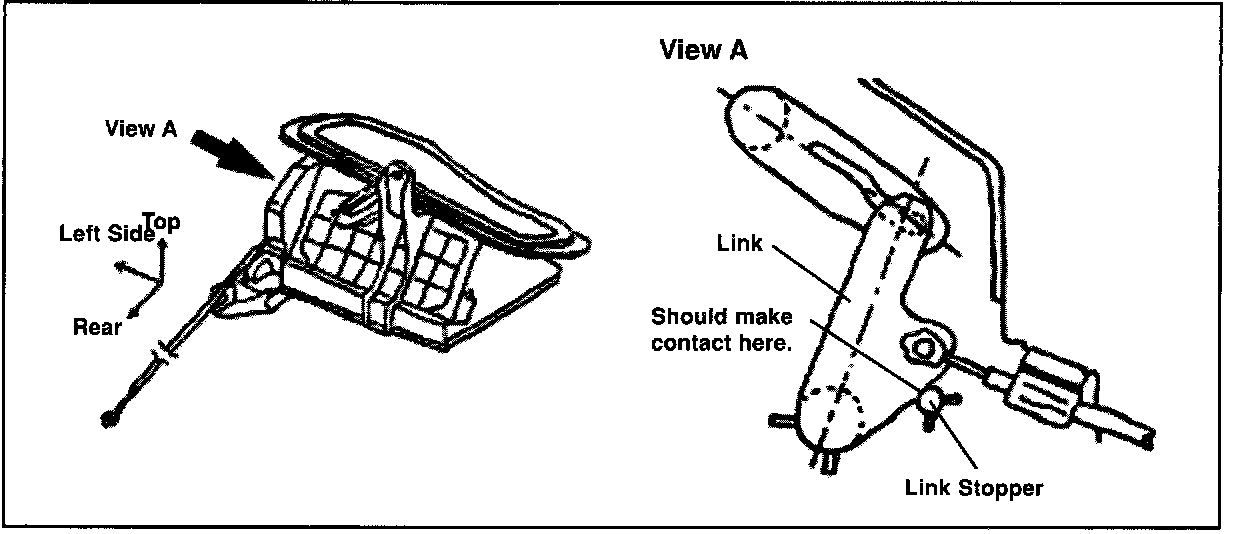

A. Pull out the inner cable of the REC/FRE cable until the link of the NC unit contacts the link stopper.

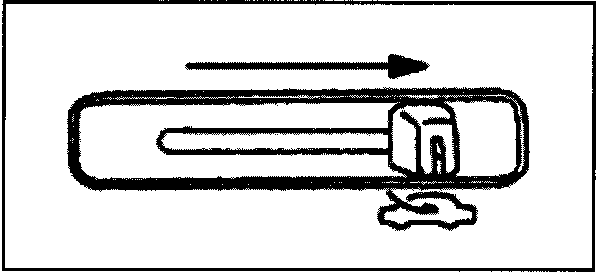

B. Set the air intake selector of the heater control unit all the way to the "FRESH" position.

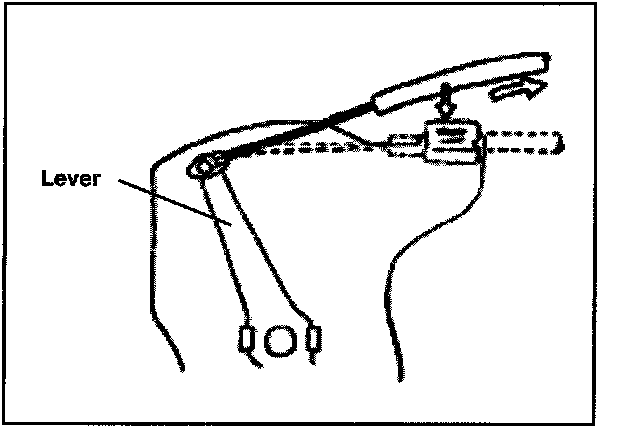

C. Attach the REC/FRE cable to the heater control unit lever pin and clamp the outer cable to the secure clamp.
NOTE:
Clamp the cable while pushing the outer cable to the A/C unit assembly side.

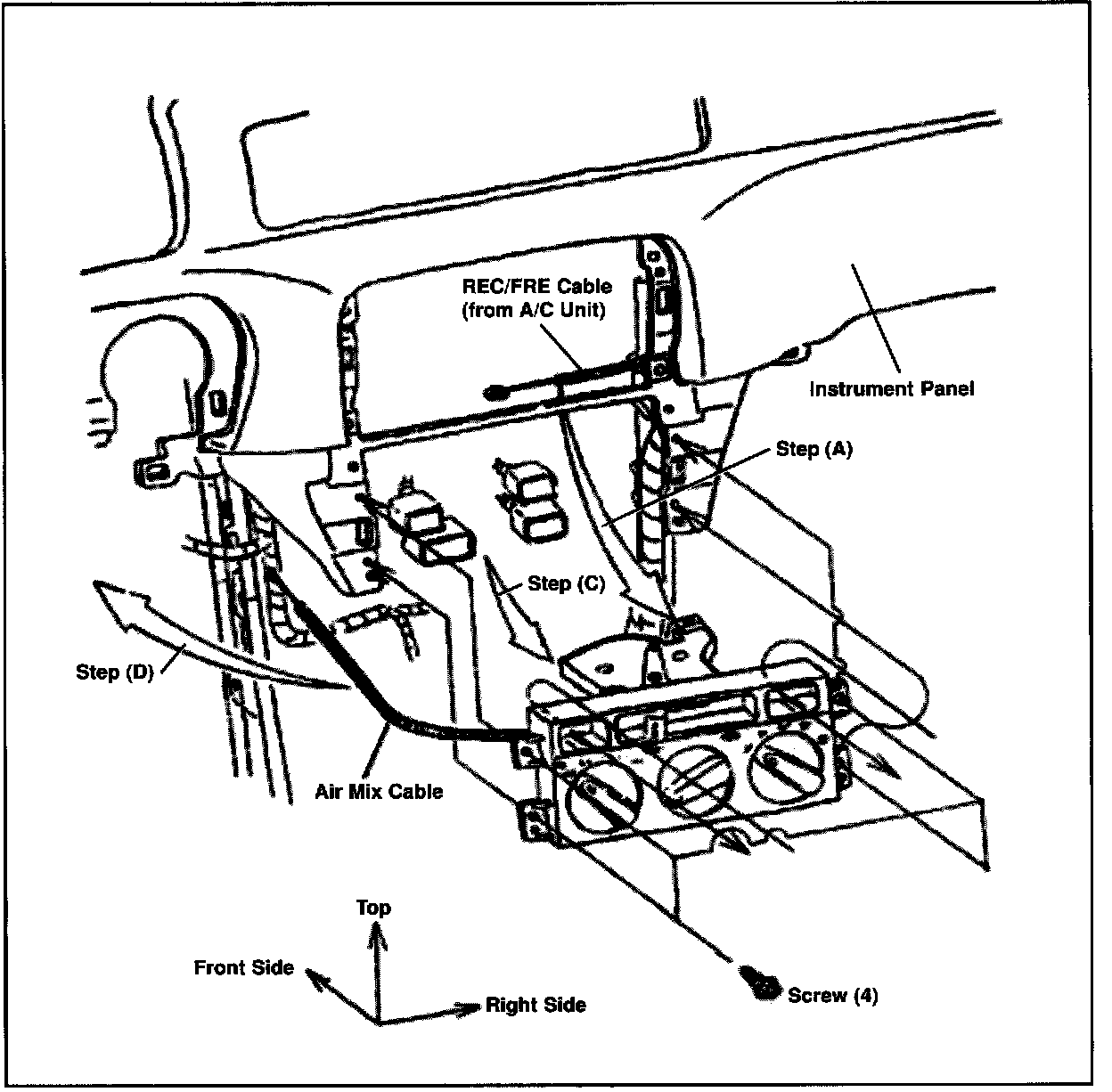

D. Install the heater control panel to the instrument panel with 4 screws.
NOTE:
Make sure air mix cable is routed outside of the brace.
E. Set the temperature selector of the heater control unit to the "MAX. COOL" position.

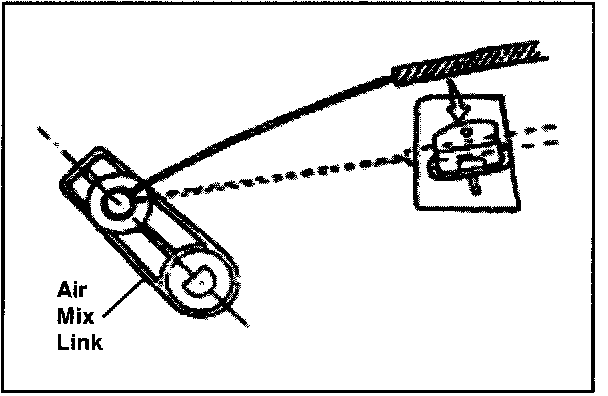

F. Connect the air mix cable connector to the air mix link pin on the left side of the A/C unit and clamp the outer cable to the secure clamp.
NOTE:
^ It is unnecessary to push or pull the outer cable.
^ Do not bend the cable when setting the cable.
^ Do not move the air mix knob until you are finished clamping the outer cable.
INSPECTION PROCEDURE:
1. Rotary Knob For Temperature Control
Operate the temperature control rotary knob after setting the cables, check that there is a "thump" at the end of the travel, and no reversing force at "MAX. COOL" or "MAX. HOT" position.
2. Air Inlet Lever
Operate air inlet lever after setting the cable and check that there is a "click" at the end of the travel and no reversing force at "RECIRCULATE" and "FRESH" positions.
3. Blower Switch, Air Flow Mode Switch & A/C Switch
Operate each switch and make sure they are operating correctly.
